Enter/Exit Programming Mode

Product Reference Guide 41

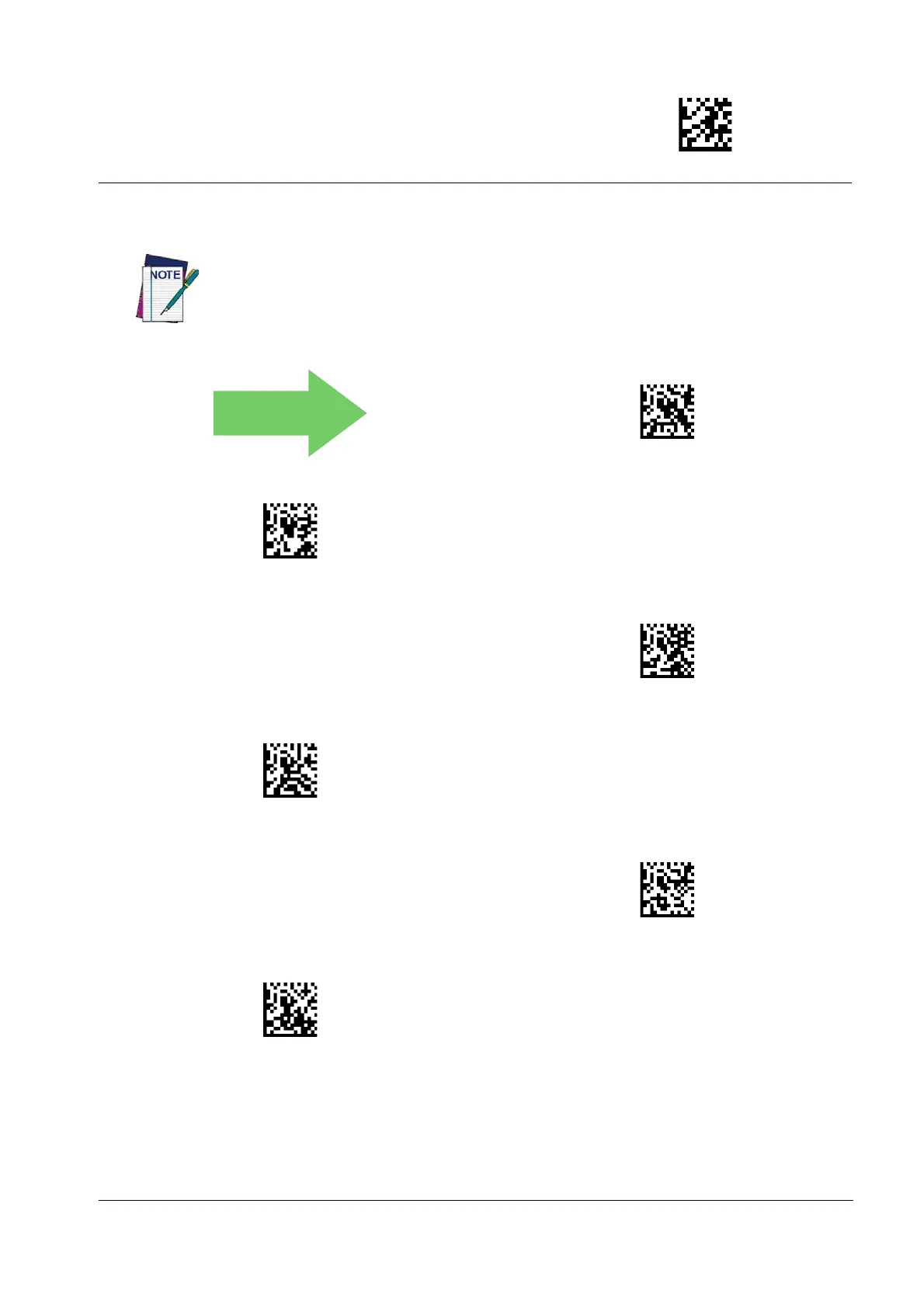

USB Keyboard Speed

This option specifies the USB poll rate for a USB keyboard.

DEFAULT

$CKBSP01(CR)

USB Keyboard Speed = 1ms

$CKBSP02(CR)

USB Keyboard Speed = 2ms

$CKBSP03(CR)

USB Keyboard Speed = 3ms

$CKBSP04(CR)

USB Keyboard Speed = 4ms

$CKBSP05(CR)

USB Keyboard Speed = 5ms

$CKBSP06(CR)

USB Keyboard Speed = 6ms

This feature applies ONLY to the USB Keyboard interface.

Default Chapter3
