224 QuickScan™ I QD24XX
Label ID: Set Individually Per Symbology
To configure a Label ID individually for a single symbology:
1. Go to page 53 and scan the ENTER/EXIT bar code.
2. Select Label ID position as either BEFORE (Enable as P
r
efix) or AFTER (Enable as suffix) by scanning the
appropriate bar code in the section "Label ID Control" on page 53. Reference Figure 9 for Label ID position-
ing options if multiple identification features are enabled.
3. Scan a bar code to select the symbology for which you wish to configure
a custom Label ID from the section
"Label ID Symbology Selection • 1D S
ymbologies" on page 54.
4. Determine the desired character(s) (you may choose up to th
ree) which will represent the Label ID for the
selected symbology.
5. Turn to the ASCII Chart on the inside back cover of this manual and find the equivalent hex digits associated
with your choice of Label ID. For example, if you wish to select an equal sign (=) as a Label ID, the chart
indicates its
associated hex characters as 3D. Turn to Keypad, starting on page 259 and scan the bar codes
representing the hex characters determined. For the example giv
en, the characters ‘3’ and ‘D’ would be
scanned. More examples of Label ID settings are provided in Ta ble 36.
If you make a mistake before the last character, scan the CANCEL bar code to abort and not
save the entry string. You can then start again at the beginning.
6. Scan the ENTER/EXIT bar code to exit Label ID entry.
7. Scan the ENTER/EXIT bar code once again to exit Programming Mode.
This completes the steps to configure a Label ID for a given symbology.

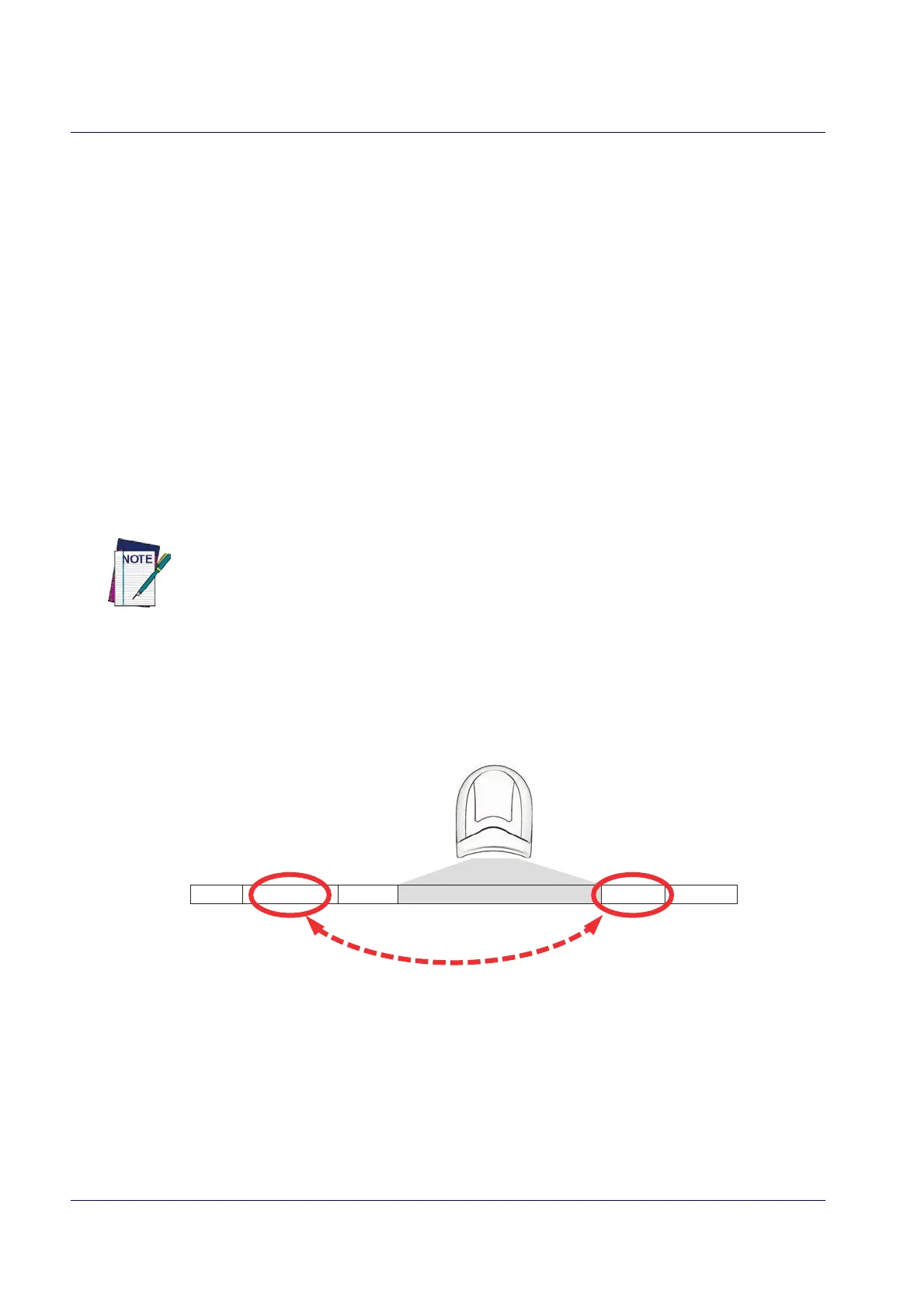

Figure 9. Label ID Position Options
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID
To Next Page
