About the Reader
The QuickScan™ QD2400 2D Imager was specifically created to address the needs of retailers
and meet the market demand with outstanding omni-directional reading performance on virtu-
ally all codes at an affordable price. Elegant design details are incorporated into a smaller, bal-
anced lightweight enclosure without sacrificing Datalogic’s well-known durability.
Ideally suited for applications at the point of-sale (P
OS), the QuickScan QD2400 imager features
a new illumination and aiming system developed with the unique intent to reduce visual stress
of the operator during the daily scanning activities. It consists of a soft, dark red illumination
combined with two blue LED triangles pointing at the targeted bar code.
The result is a precise aiming system which contributes to low eye fatigue, yet still allows top
oper
ator efficiency.
The QuickScan QD2400 imager reads typical printed li
near
bar codes as well as complex 2D bar
codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides
a fast, reliable scan from an elegant and robust 2D imager.
Imaging technology meets or exceeds the productivity
compared to laser scanners and pro-
vides the additional advantages of a lower cost-of-ownership and greater product reliability
over t
he long term.
Using the BC20XX™ Radio Base
Radio Base LEDs
LEDs on the QuickScan Base provide information about the Base as well as battery charging sta-
tus, as shown.

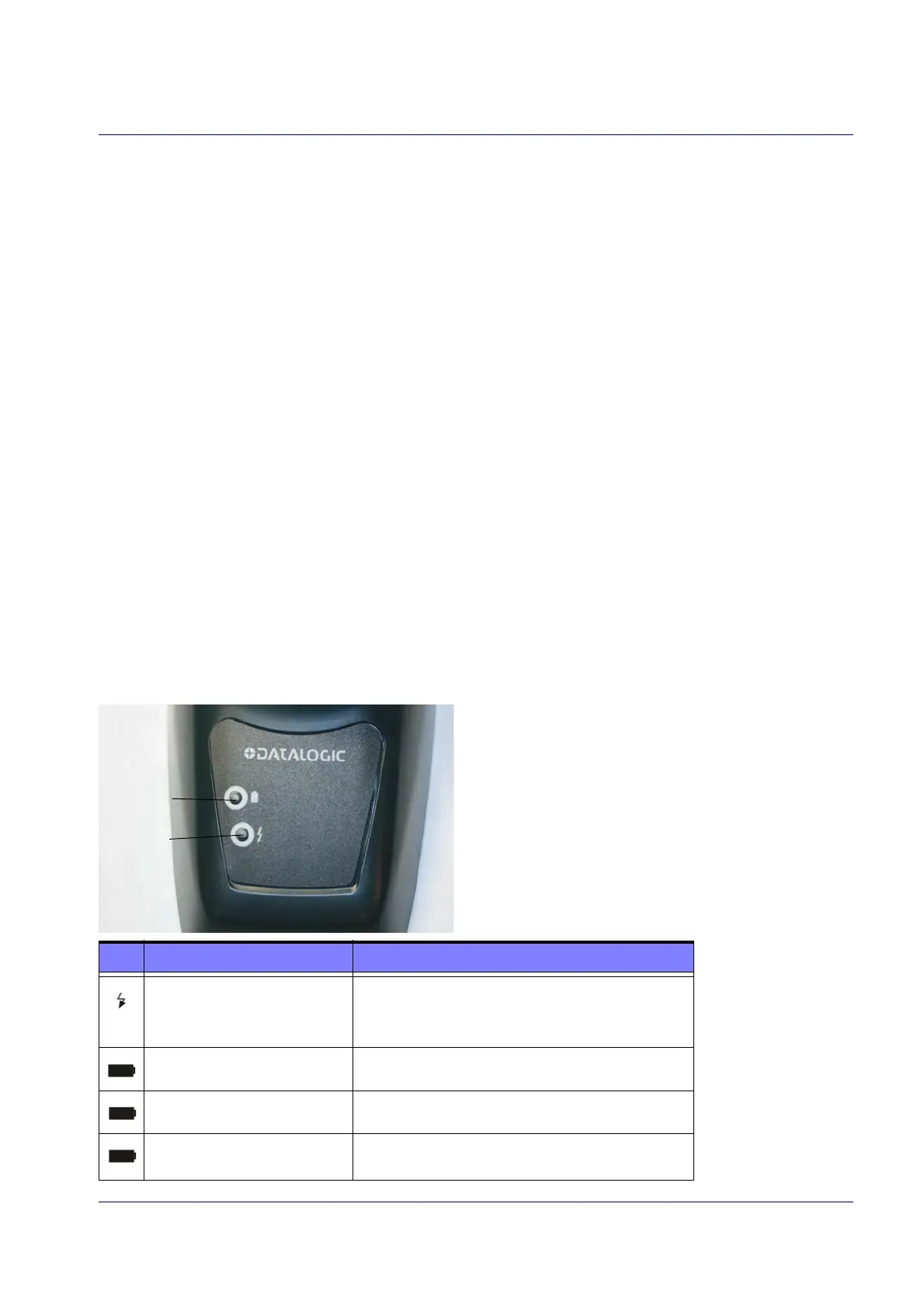

Figure 1. QuickScan Base LEDs
Yellow LED
Red LED /
Green LED
LED STATUS
Power on / Data
Yellow On = Base is powered
Yellow Blinking = Base receives data and
commands from the Host or the Reader.
Charging Red On = Battery charging is
in progress.
Charge completed Green On = the Battery is completely charged.
Charging + Charge completed
Red and Green Blinking together = the Reader is
n
o
t correctly placed onto the Base.
