Datalogic QuickScan QBT2400 User Manual

Configuring the Base Station
Product Reference Guide 15
System and Network Layouts

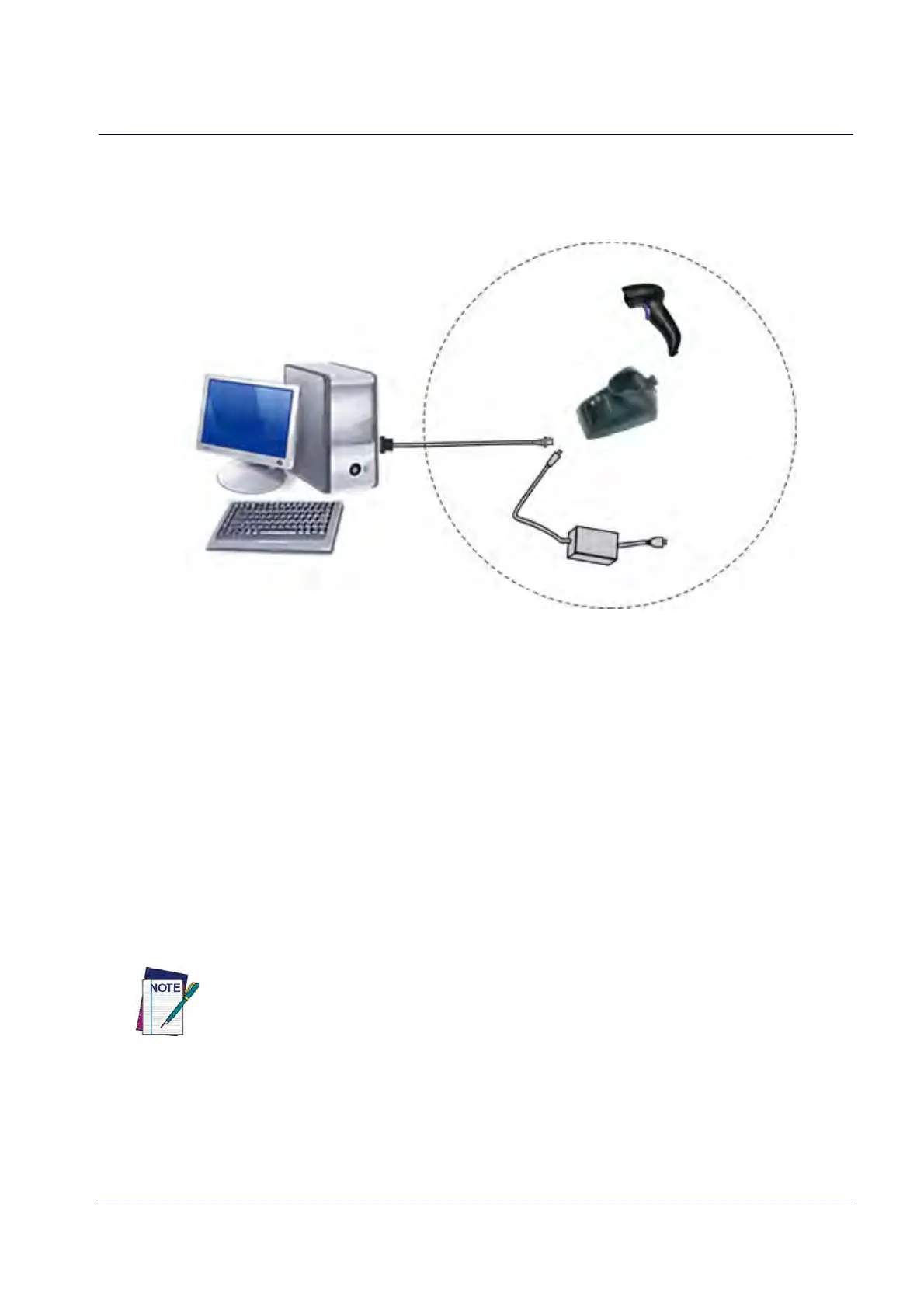

Stand Alone Layout
Reader
Base Station
Host
Connecting the Base when Security Pin is Enabled
When connecting the Base to a system that has a custom Security Pin enabled, follow the steps
below in the order shown:
1. Power down the host system.
2. Connect the appropriate interface cable into the Base as shown.
3. Place the reader in the Base.
4. Power up the host. The reader will link to the Base
5. When the host completely powers up, a new custom Security Pin
Code m
ay be sent to the
reader and Base, depending on host configuration. Contact Datalogic Technical Support
for more information.
If you want to change security settings or set up a PIN, see "BT Security Mode"
starting on page 223.

Datalogic QuickScan QBT2400 Specifications

General

Connectivity	Bluetooth
Battery Type	Lithium-Ion
Battery Capacity	1400 mAh
IP Rating	IP42
Print Contrast Ratio (Minimum)	25%
Interfaces Supported	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Drop Resistance	Withstands drops from 1.5 m / 5.0 ft
Radio Range (Open Air)	100 m
Type	Handheld
Scan Rate	60 frames per second
Resolution	0.1 mm
Humidity	5 to 95% non-condensing
Light Source	Red LED
Supported Barcodes	1D / 2D and postal codes
