Datalogic QuickScan QBT2400 User Manual

Setup
14 QuickScan™ I QD24XX/QBT24XX/QM24XX

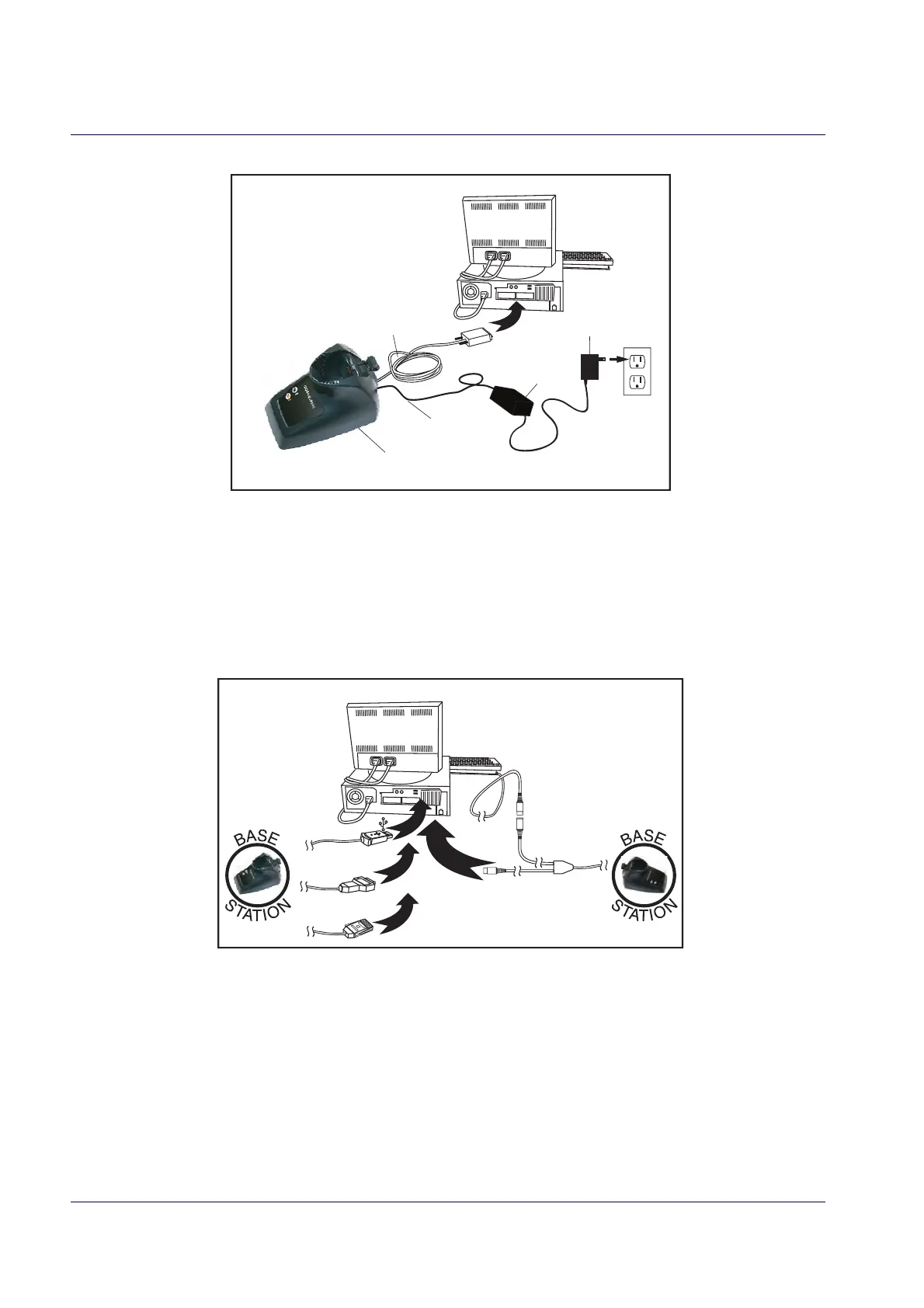

Figure 7. Connecting the Base Station
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector
Host Connection: Verify before connection that the reader’s cable type is compatible with your
host equipment.
Most connections plug directly into the host device as shown in Figure 8. Keyboard Wedge
interface cables have a ‘Y’ connection where its female end mates with the male end of the
cable f
rom the keyboard and the remaining end at the keyboard port on the terminal/PC.
Figure 8. Connecting to the Host
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
W
a
n
d
or...
or...
or...
Power Connection: Plug the AC Adapter into an approved AC wall socket with the cable facing
downwards (as shown in Figure 7) to prevent undue strain on the socket.

Datalogic QuickScan QBT2400 Specifications

General

Connectivity	Bluetooth
Battery Type	Lithium-Ion
Battery Capacity	1400 mAh
IP Rating	IP42
Print Contrast Ratio (Minimum)	25%
Interfaces Supported	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Drop Resistance	Withstands drops from 1.5 m / 5.0 ft
Radio Range (Open Air)	100 m
Type	Handheld
Scan Rate	60 frames per second
Resolution	0.1 mm
Humidity	5 to 95% non-condensing
Light Source	Red LED
Supported Barcodes	1D / 2D and postal codes
