Datalogic QuickScan QBT2400 User Manual

Technical Specifications
270 QuickScan™ I QD24XX/QBT24XX/QM24XX
Standard Cable Pinouts
Figure 14, Figure 15 and Table 47 provide standard pinout information for the interface cable.

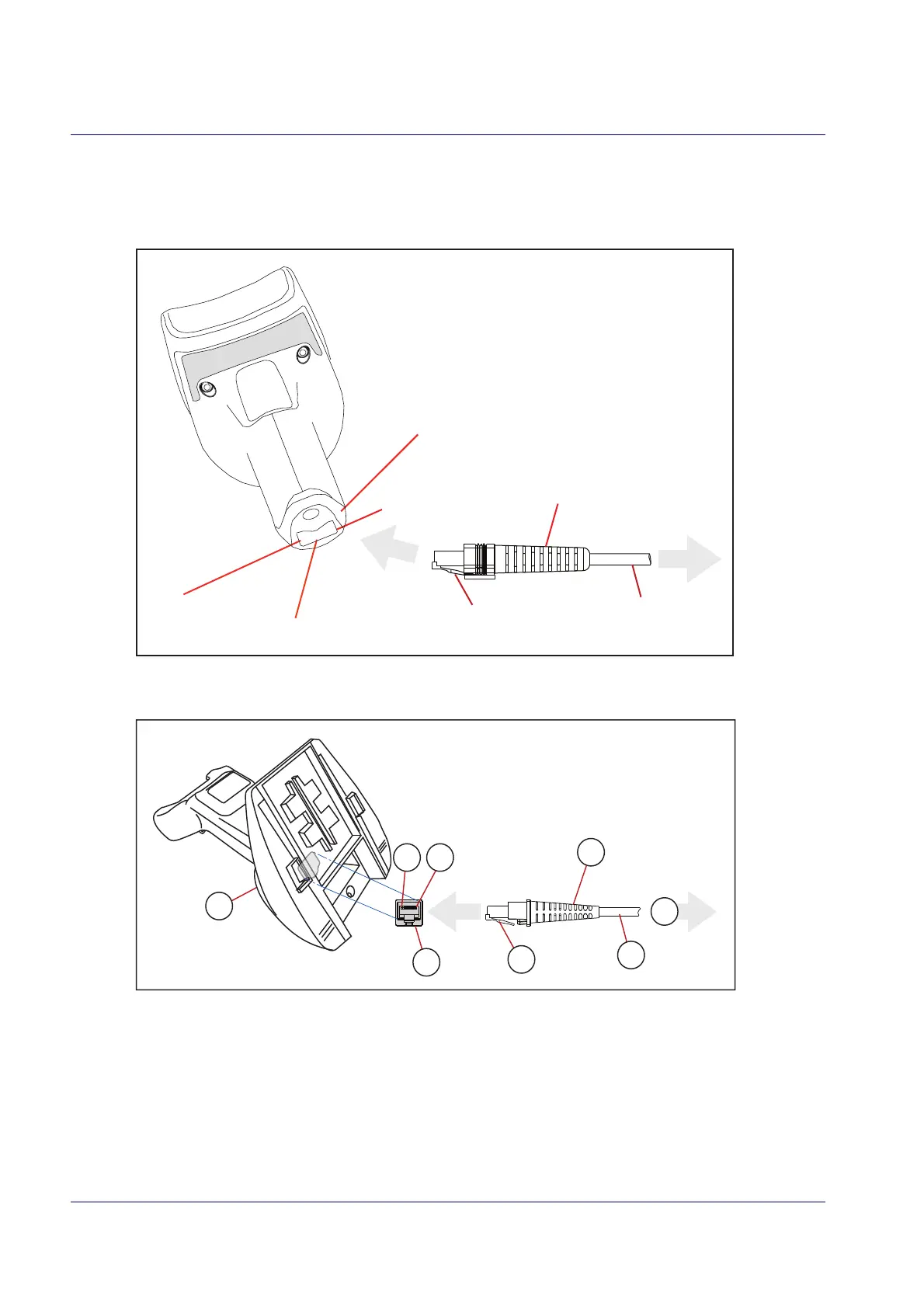

Figure 14. Standard Cable Pinouts: Handheld
Pin 10
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Bottom of Scanner
Interface Cable Port
Pin 1
Figure 15. Standard Cable Pinouts: Base Station
4
5
7
6
3
1 2
8
The signal descriptions in Table 47 apply to the connector on the reader and are for reference
only.

Datalogic QuickScan QBT2400 Specifications

General

Connectivity	Bluetooth
Battery Type	Lithium-Ion
Battery Capacity	1400 mAh
IP Rating	IP42
Print Contrast Ratio (Minimum)	25%
Interfaces Supported	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Drop Resistance	Withstands drops from 1.5 m / 5.0 ft
Radio Range (Open Air)	100 m
Type	Handheld
Scan Rate	60 frames per second
Resolution	0.1 mm
Humidity	5 to 95% non-condensing
Light Source	Red LED
Supported Barcodes	1D / 2D and postal codes
