Datalogic QuickScan QBT2400 User Manual

Setup
10 QuickScan™ I QD24XX/QBT24XX/QM24XX

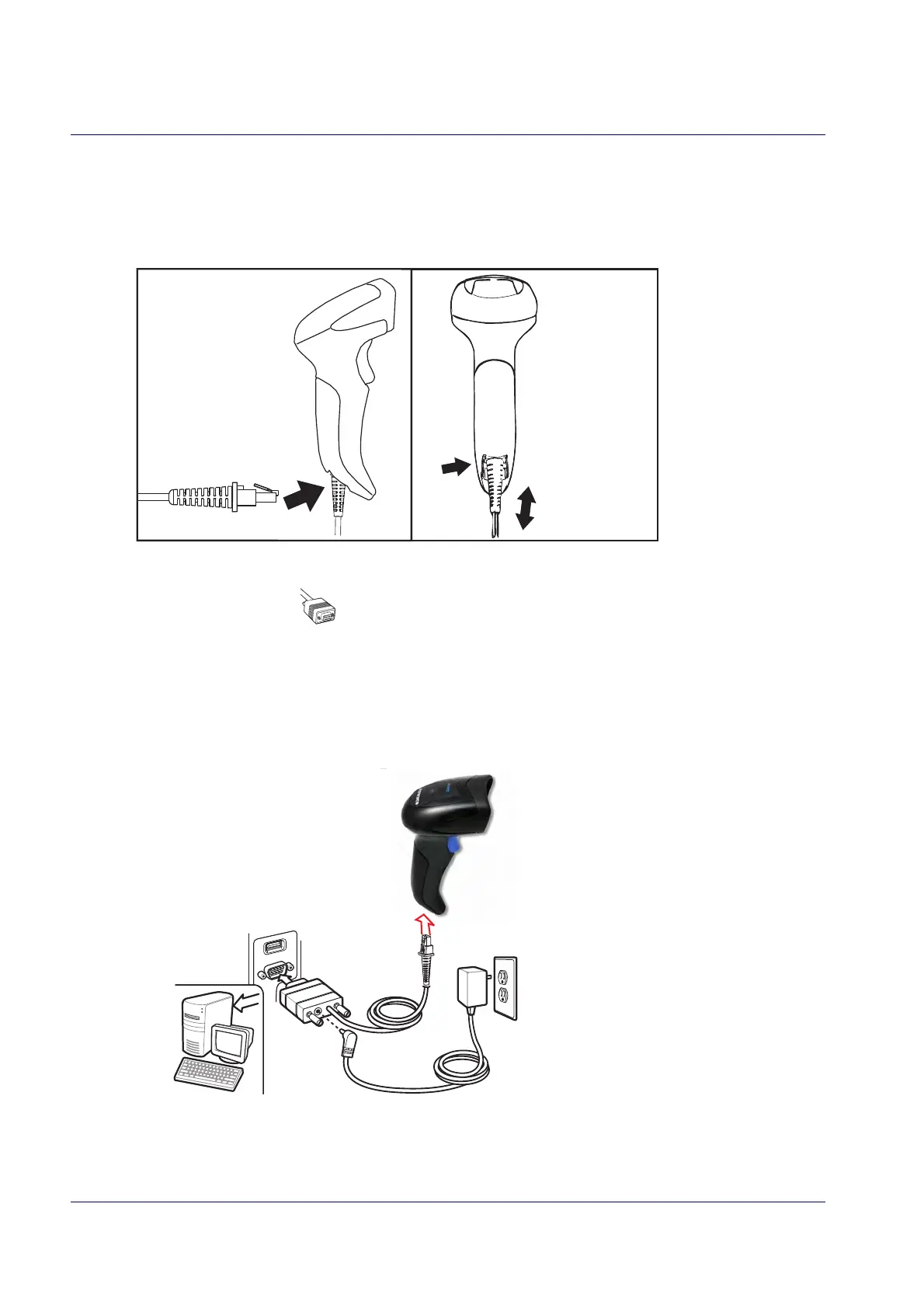

Installing the Interface Cable
For Corded versions, connect the reader cable by inserting the cable into the handle as shown
in Figure 2. To remove it, insert a paper clip into the release aperture, then unplug the cable.
Figure 2. Connect/disconnect the cable
RS-232 Serial Connection
Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the
RS-232 cable as shown in Figure 3. If the terminal will not support
POT (Power Off the Terminal)
to supply reader power, use the approved power supply (AC
Adapter). Plug the AC Adapter bar-
rel connector into the socket on the RS-232 cable connector and the AC Adapter plug into a
standard power outlet.
Figure 3. RS-232 Connection

Datalogic QuickScan QBT2400 Specifications

General

Connectivity	Bluetooth
Battery Type	Lithium-Ion
Battery Capacity	1400 mAh
IP Rating	IP42
Print Contrast Ratio (Minimum)	25%
Interfaces Supported	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Drop Resistance	Withstands drops from 1.5 m / 5.0 ft
Radio Range (Open Air)	100 m
Type	Handheld
Scan Rate	60 frames per second
Resolution	0.1 mm
Humidity	5 to 95% non-condensing
Light Source	Red LED
Supported Barcodes	1D / 2D and postal codes
