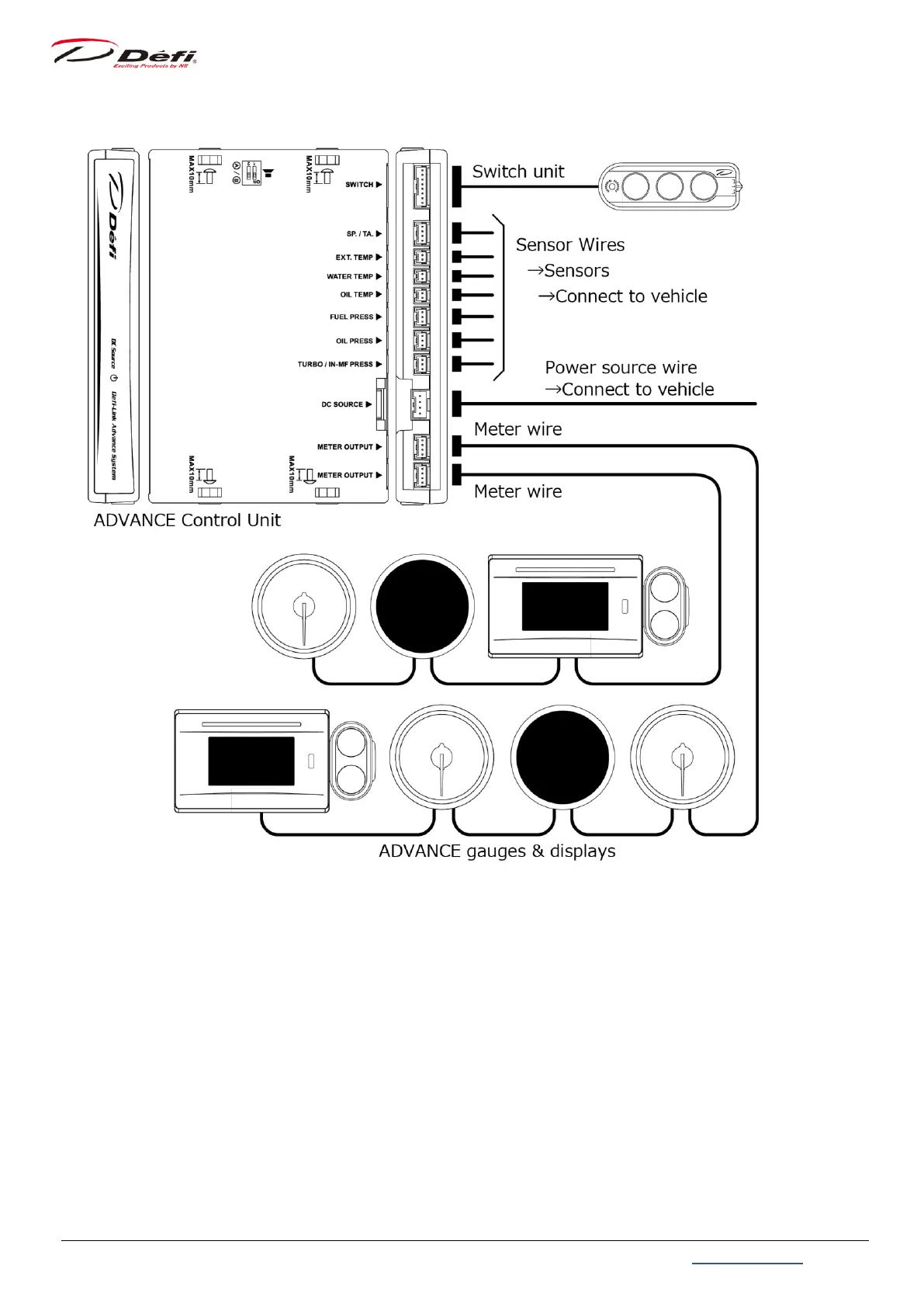

■ADVANCE System diagram
The meter wire can be connected to either of the two connectors of METER OUTPUT.
Up to 7 gauges and displays in all can be connected to one control unit. If 7 gauges are
connected to one line, none can be connected to the other line. If three gauges are
connected to one line, up to 4 gauges can be connected to the other line.
More than one gauge of the same variety cannot be connected in one ADVANCE System.
(e.g. You can NOT connect 2 turbo gauges together.) However, several displays including
FDs can be connected.
