9.7.3. Real time peak mode
This mode displays the maximum value of during driving and idling in real time mode. As
for oil pressure and fuel pressure, the maximum and minimum values are displayed in
order. By resetting, the peak values from that point are displayed. Even when differential
pressure is displayed, the peak value of fuel pressure is displayed on the fuel pressure zone.

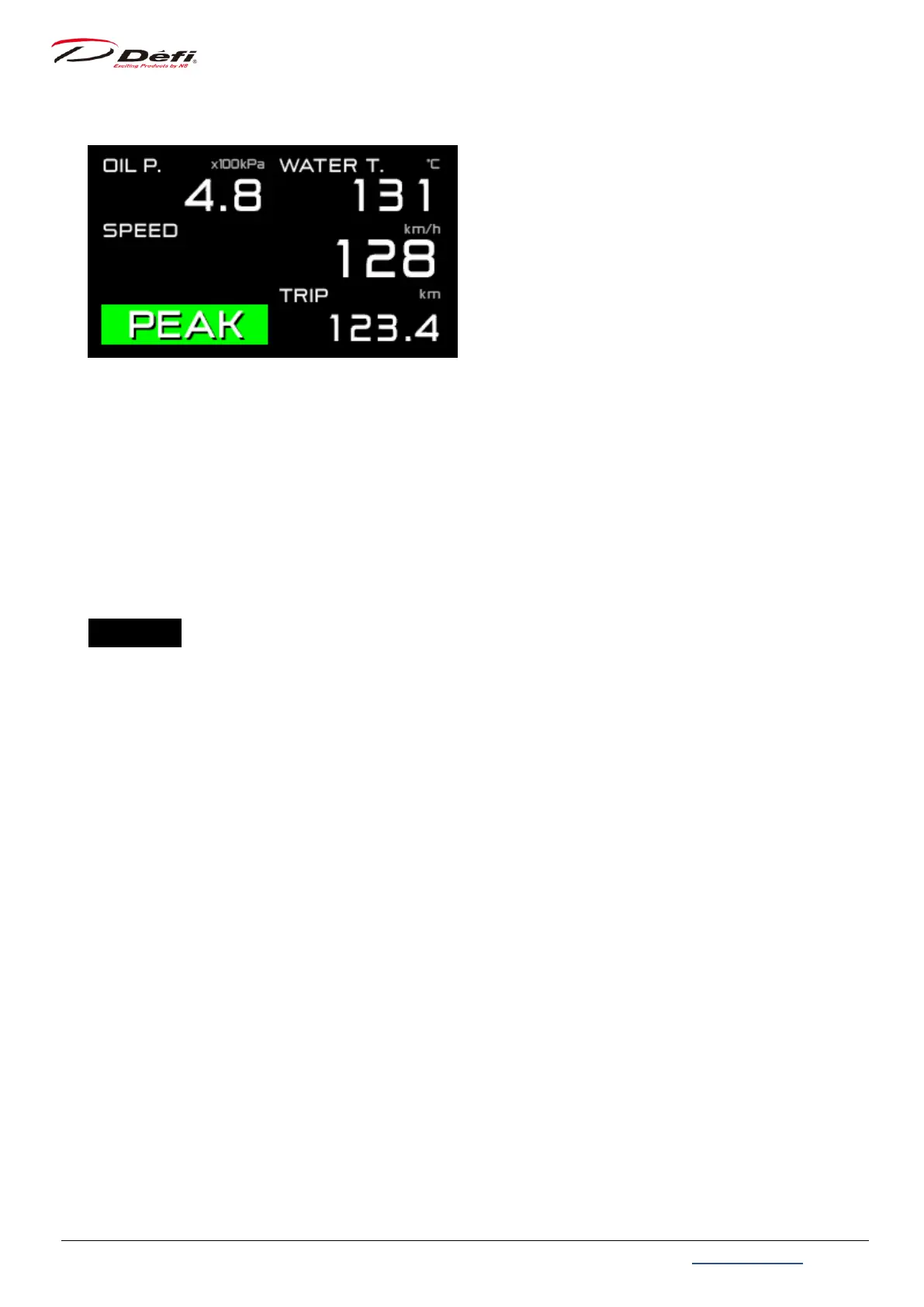

While in the peak mode, [PEAK] is displayed in the multi-display zone. At that time, if the
tachometer is above the warning set point, the sequential indicator will blink.
CU OPR (Slide switch position：【UPPER】)
■If neither oil pressure sensor nor fuel pressure sensor is connected
1. Set the slide switch to 【UPPER】.
2. Press the 【MIDDLE button】 to shift to the real time peak mode.
3. Press the 【MIDDLE button】 again to return to the real time mode.
■If either oil pressure sensor or fuel pressure sensor is connected
1. Set the slide switch to 【UPPER】.
2. Press the 【MIDDLE button】 to shift to the real time peak mode (high peak) and the
maximum values are displayed.
3. Press the 【MIDDLE button】 while the high peak to shift to the real peak mode (low
peak). The minimum values are displayed for oil pressure and fuel pressure, and the
maximum values for all others.
4. Press the 【MIDDLE button】 again to return to the real time mode.
To Next Page
