9.3. System setup mode
Set the speed pulse, number of cylinders, tachometer response, and so on. If ADVANCE
tachometer has been installed and number of cylinders and tachometer response are
already set, the settings are applied to the FD too.
Caution
Make sure all the setting is done correctly. The product doesn’t operate properly.
Set up while the vehicle is stopped.
Setting items On the screen Setting options Default
Unit setting UNIT kPa・km/h・℃ / PSI・MPH・℉ kPa・km/h・℃
Spped pulses setting SPEED PULSES 2 / 4 / 8 / 16 / FREE 4
Number of cylinders setting ENGINE CYLINDERS 1 / 2 / 3 / 4 / 5 / 6 / 8 4
Tachometer response setting TACHO RESPONSE 1:HIGH / 2:MID / 3:LOW 1：HIGH
Dimmer setting DIMMER AUTO / MANUAL MANUAL
Special display setting SPECIAL MODE ON / OFF OFF
Warm-up setting WARM UP MODE WATER TEMP / OIL TEMP / OFF OFF
[CLOCK] appears at the end of the menu, but the FD does not have a clock function and
cannot be set.

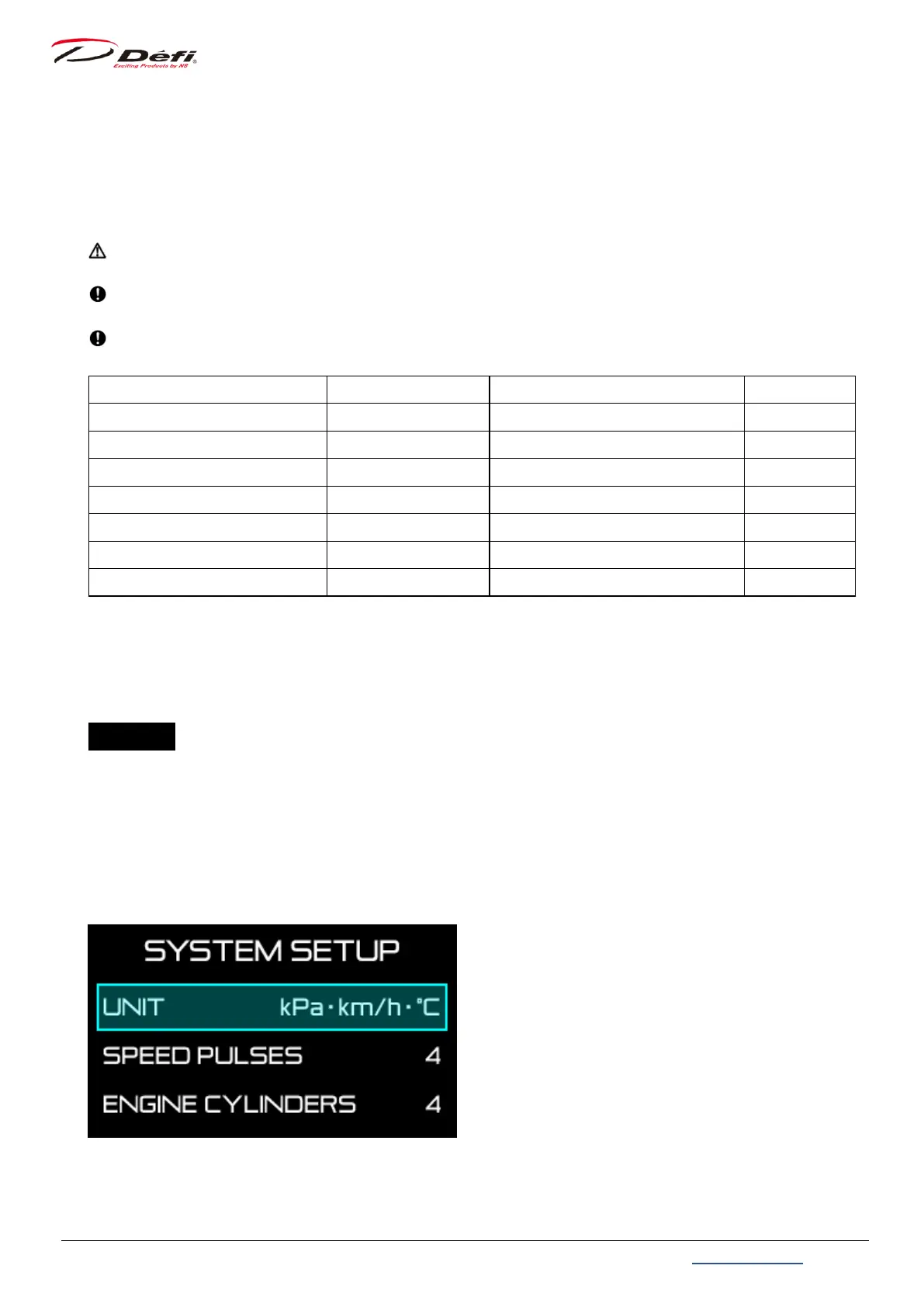

CU OPR (Slide switch position：【LOWER】)
1. Set the slide switch to 【LOWER】.
2. Press and hold the 【LEFT Button】 to enter the setup mode, and the [SYSTEM SETUP]
menu will be displayed on the FD. The unit setting is highlighted first. The inside of the
selection frame is light blue until you decide to select one of the items.
