8. How to install <for customer and installation personnel>
8.1. Confirmation of contents
Check the contents of the package.
⇒5. Components <for customer and installation personnel>
8.2. Installation of ADVANCE Control unit and sensors
Install ADVANCE Control unit, sensors, and sensor wires by referring to the manuals.
⇒ Refer to manuals for ADVANCE Control Unit, gauges, and sensor sets

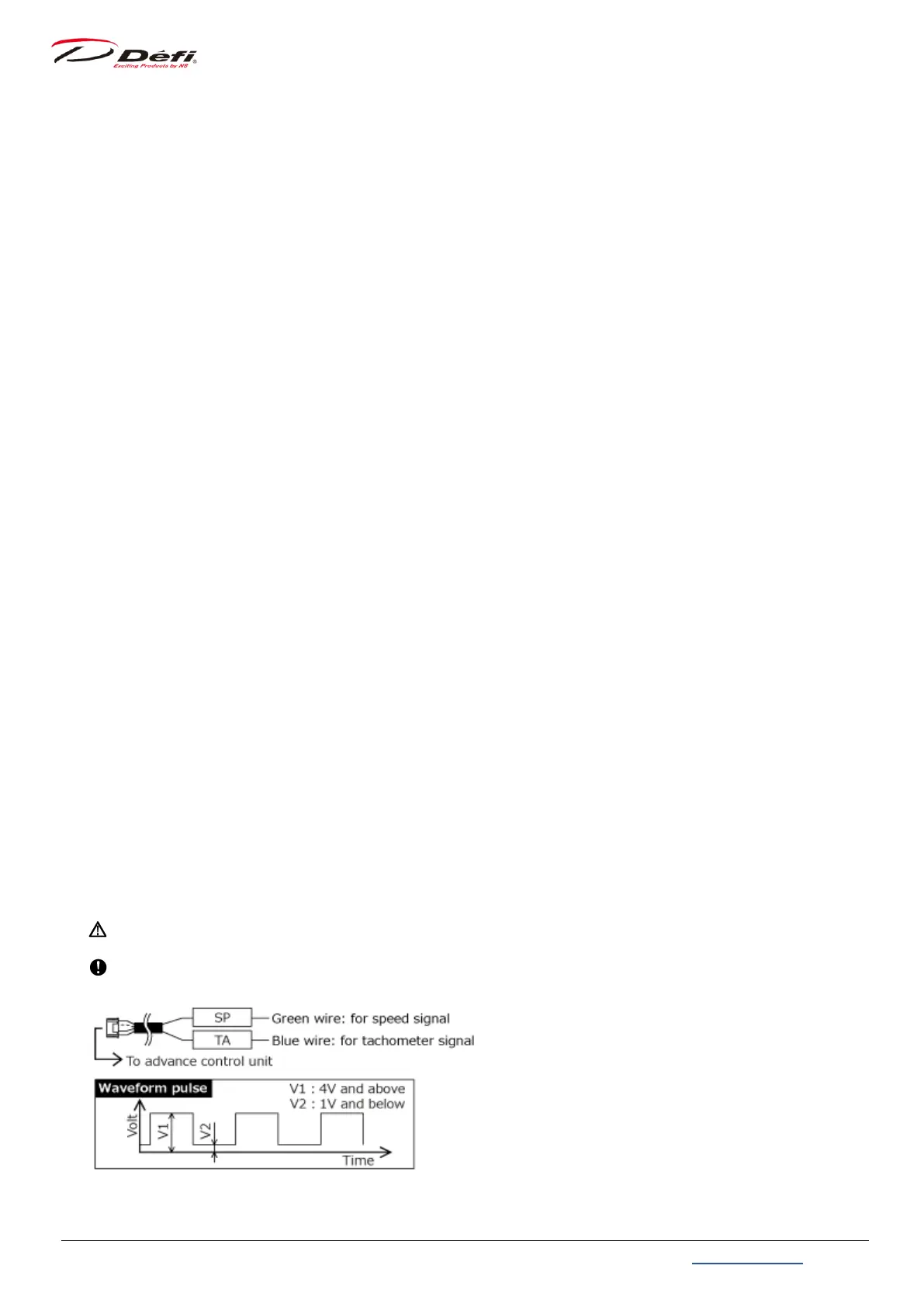

8.3. Wiring of speed and tachometer signal wire
1. Disconnect the negative (-) battery terminal.
2. Connect the green wire (SP) to SP signal of ECU.
3. Connect the blue wire (TA) to TA signal of ECU.
If the tachometer signal wire of ADVANCE series is already wired, connect only the green
wire. In the case, do not use the speed and tachometer signal wire included in this product.
⇒ Refer to how to solder and how to use the solderless connectors.
4. Connect the speed and tachometer signal wire to ADVANCE Control Unit. (In case the
wire is already connected, skip this step.)
5. Connect the negative (-) battery terminal.
6. Set the speed pulse, number of cylinders, and tachometer response after all the
installation and wiring are done by referring operation section.
⇒9 How to operate <for customer>
Caution for wiring of speed and tachometer signal wires
If there is an unconnected wire, be sure to insulate it.
