Defi ADVANCE FD User Manual

ADVANCE FD Manual 63 Return to top
9.7.4. Real time peak reset mode
This mode resets the maximum value (maximum and minimum values for oil pressure and
fuel pressure) of during driving and idling up to that point. During the peak reset mode,

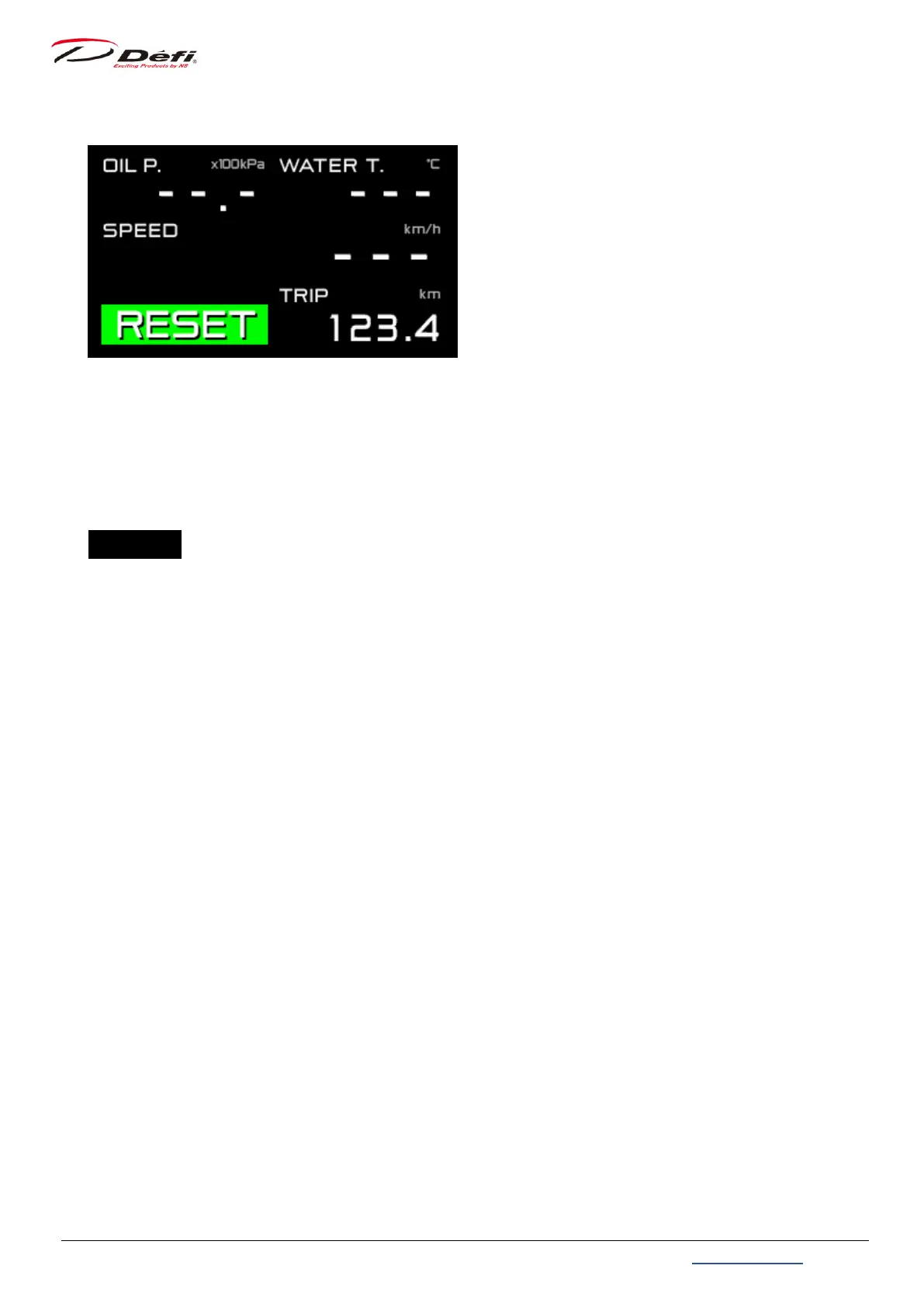

[RESET] is displayed in the multi-display zone for 1 second.
CU OPR (Slide switch position：【UPPER】)
1. Set the slide switch to 【UPPER】.
2. Press the 【MIDDLE button】 to shift to the real time peak mode.
3. Press the 【RIGHT button】 during the real time peak mode to reset the peak values.
After resetting, the display returns to the real time mode. Both the maximum and minimum
values are reset at the same time when either low peak or high peak is displayed.

Defi ADVANCE FD Specifications

General

Brand	Defi
Model	ADVANCE FD
Category	Control Unit
Language	English
