Defi ADVANCE FD - Connecting Switch Wire to FD; Connecting Meter Wire to FD

ADVANCE FD Manual 22 Return to top

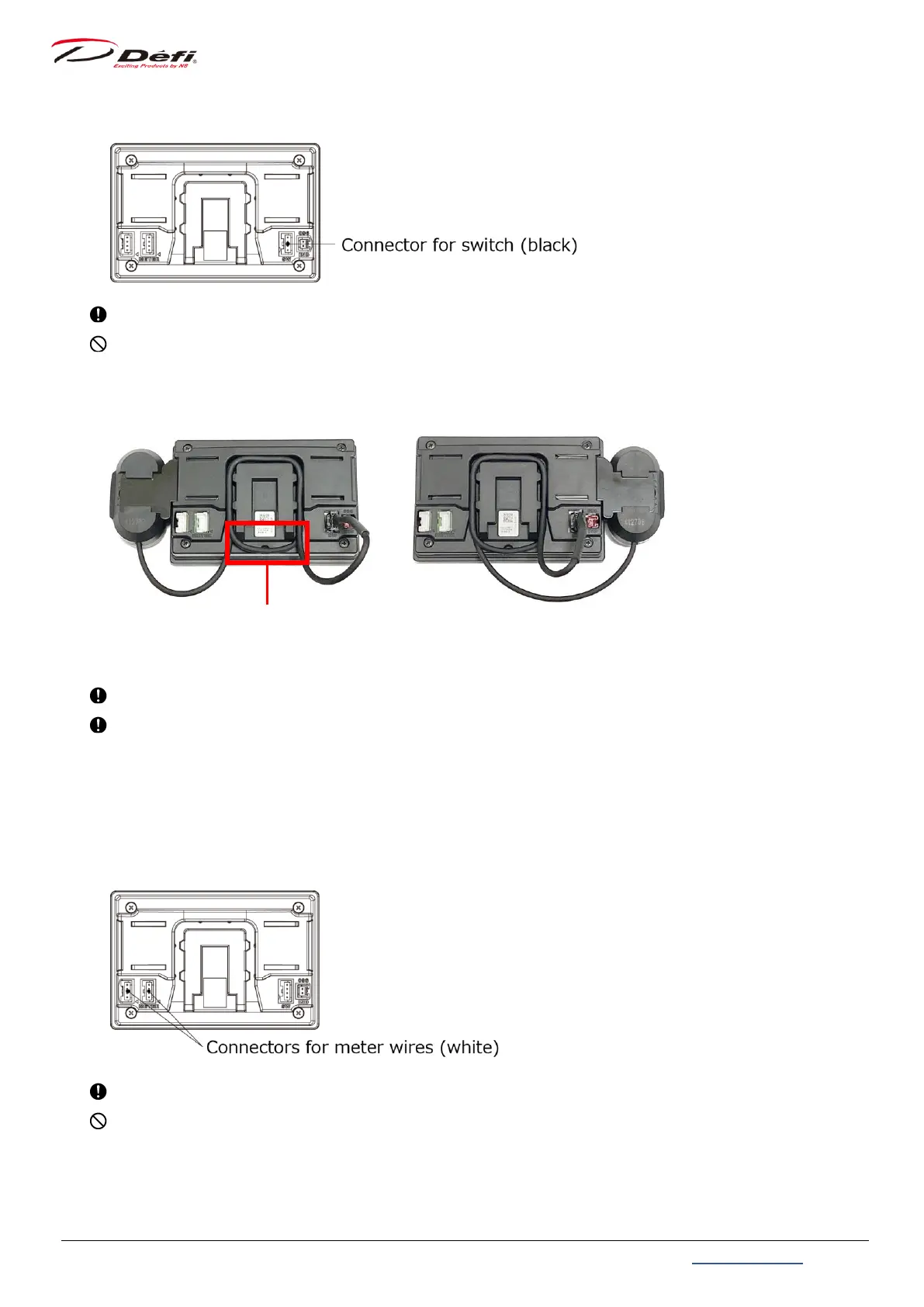

4-2. Connect the connector of the switch wire to the FD.
Plug the black connector of the switch wire into the black connector of the FD.
Do not plug the black connector into the white connector for meter wire.
4-3. Wrap the switch wire around the groove on the back of the FD as needed.
Wrapping example
The harness should be wired with slack. Pulling too hard may break the wire.
When storing the wire in the groove for the switch wire on the back of the FD, wrap the
wire around the mounting brace slot in a single layer. Double wrapping may cause unstable
fixing of the mounting brace or generate noise may affect the FD itself and vehicle
functions.
5. Connect the meter wire to the FD.
Plug the white connector of the meter wire into the white connector of the FD.
Do not plug the white connector into the black connector for the switch wire.
Mounting brace slot
Must be a single layer
