The following example shows the show fip-snooping vlan command.
Dell# show fip-snooping vlan
* = Default VLAN
VLAN FC-MAP FCFs Enodes Sessions
---- ------ ---- ------ --------
*1 - - - -
100 0X0EFC00 1 2 17
FCoE Transit Configuration Example
The following illustration shows a switch used as a FIP snooping bridge for FCoE traffic between an
ENode (server blade) and an FCF (ToR switch). The ToR switch operates as an FCF and FCoE gateway.

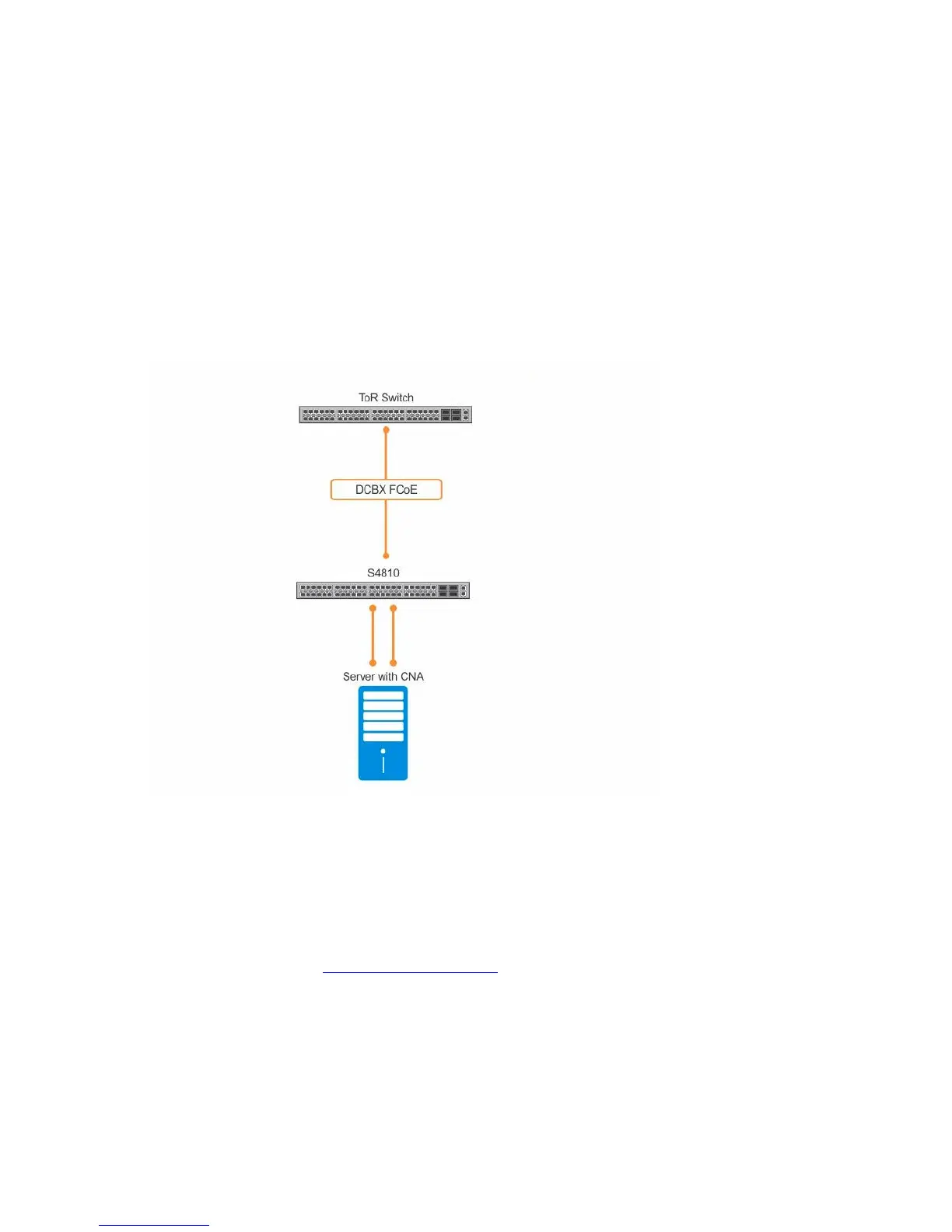

Figure 37. Configuration Example: FIP Snooping on a Switch
In this example, DCBx and PFC are enabled on the FIP snooping bridge and on the FCF ToR switch. On
the FIP snooping bridge, DCBx is configured as follows:
• A server-facing port is configured for DCBx in an auto-downstream role.
• An FCF-facing port is configured for DCBx in an auto-upstream or configuration-source role.
The DCBx configuration on the FCF-facing port is detected by the server-facing port and the DCB PFC
configuration on both ports is synchronized. For more information about how to configure DCBx and
PFC on a port, refer to the Data Center Bridging (DCB) chapter.
The following example shows how to configure FIP snooping on FCoE VLAN 10, on an FCF-facing port
(1/5/1), on an ENode server-facing port (1/1/1), and to configure the FIP snooping ports as tagged
members of the FCoE VLAN enabled for FIP snooping.
FCoE Transit
327
