Dell S6000–ON - Enable MSDP

To Next Page

To Previous Page

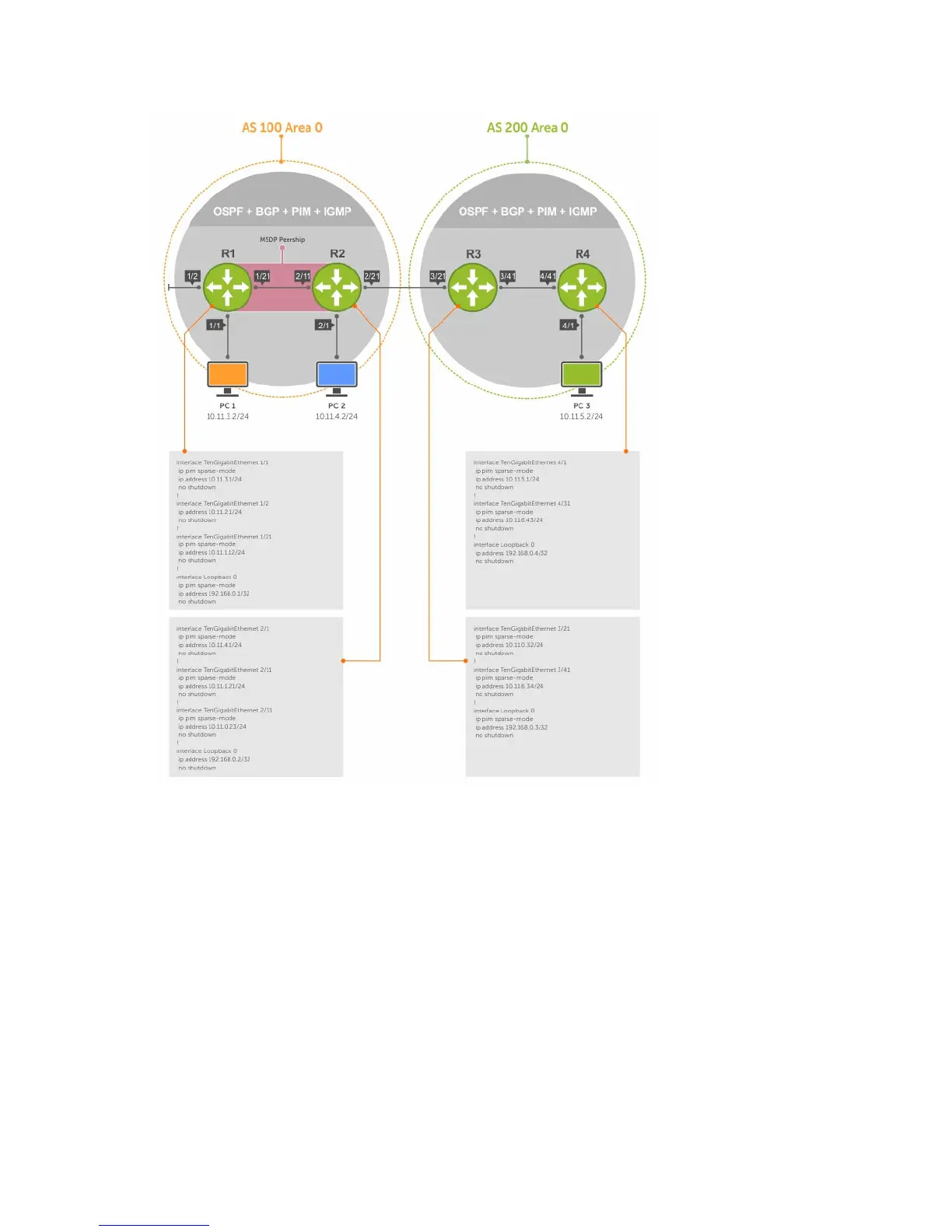

Figure 82. Configuring MSDP

Enable MSDP

Enable MSDP by peering RPs in different administrative domains.

1. Enable MSDP.

CONFIGURATION mode

ip multicast-msdp

2. Peer PIM systems in different administrative domains.

CONFIGURATION mode

ip msdp peer connect-source

Multicast Source Discovery Protocol (MSDP)

559
