Dell S6000–ON - Important Points to Remember; Enabling 802.1 X

Important Points to Remember
• Dell Networking OS supports 802.1X with EAP-MD5, EAP-OTP, EAP-TLS, EAP-TTLS, PEAPv0, PEAPv1,
and MS-CHAPv2 with PEAP.
• All platforms support only RADIUS as the authentication server.
• If the primary RADIUS server becomes unresponsive, the authenticator begins using a secondary
RADIUS server, if configured.
• 802.1X is not supported on port-channels or port-channel members.
Enabling 802.1X
Enable 802.1X globally.

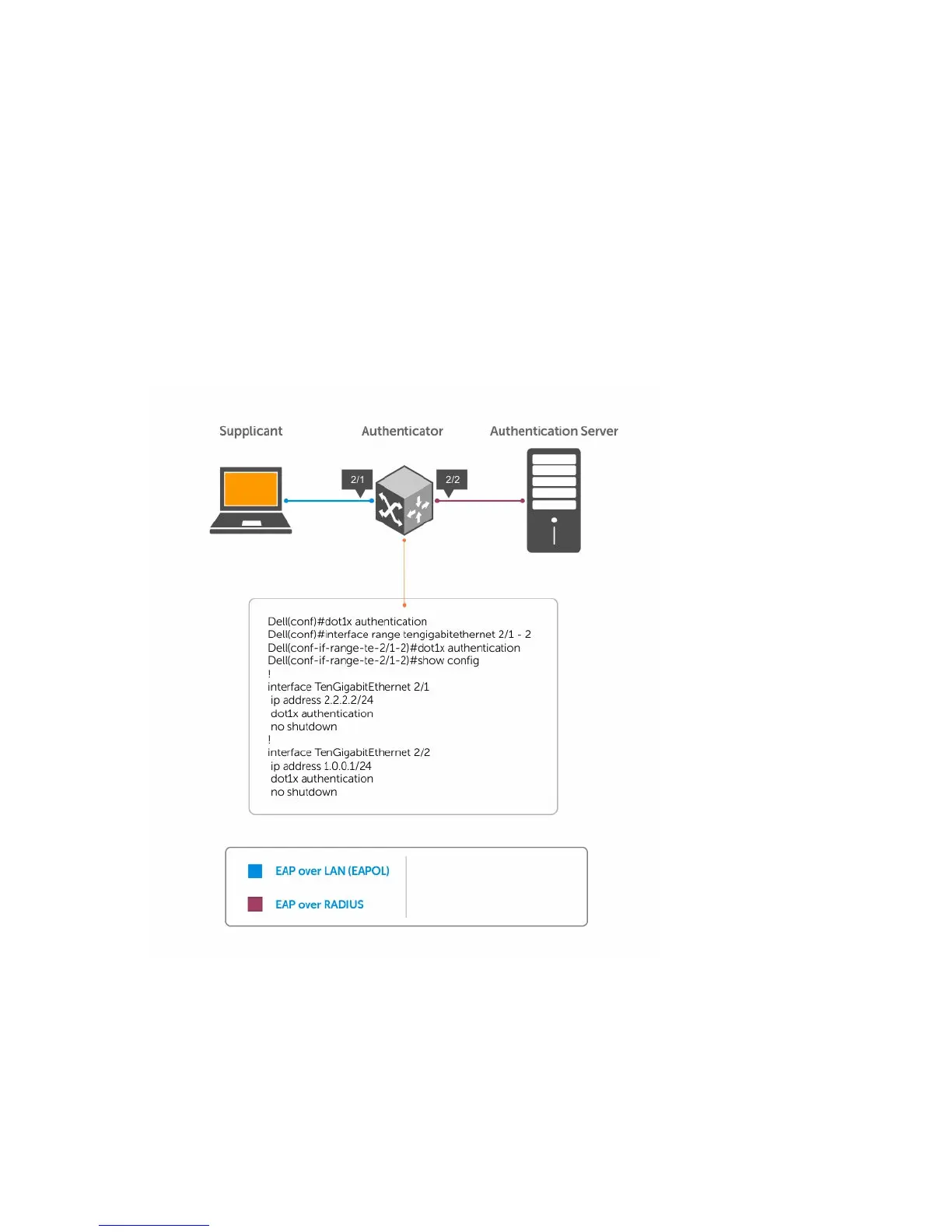

Figure 7. 802.1X Enabled
1. Enable 802.1X globally.
CONFIGURATION mode
86
802.1X
