Virtual Extensible LAN (VXLAN)

Virtual Extensible LAN (VXLAN) is supported on Dell Networking OS.

Overview

The switch acts as the VXLAN gateway and performs the VXLAN Tunnel End Point (VTEP) functionality.

VXLAN is a technology where in the data traffic from the virtualized servers is transparently transported

over an existing legacy network.

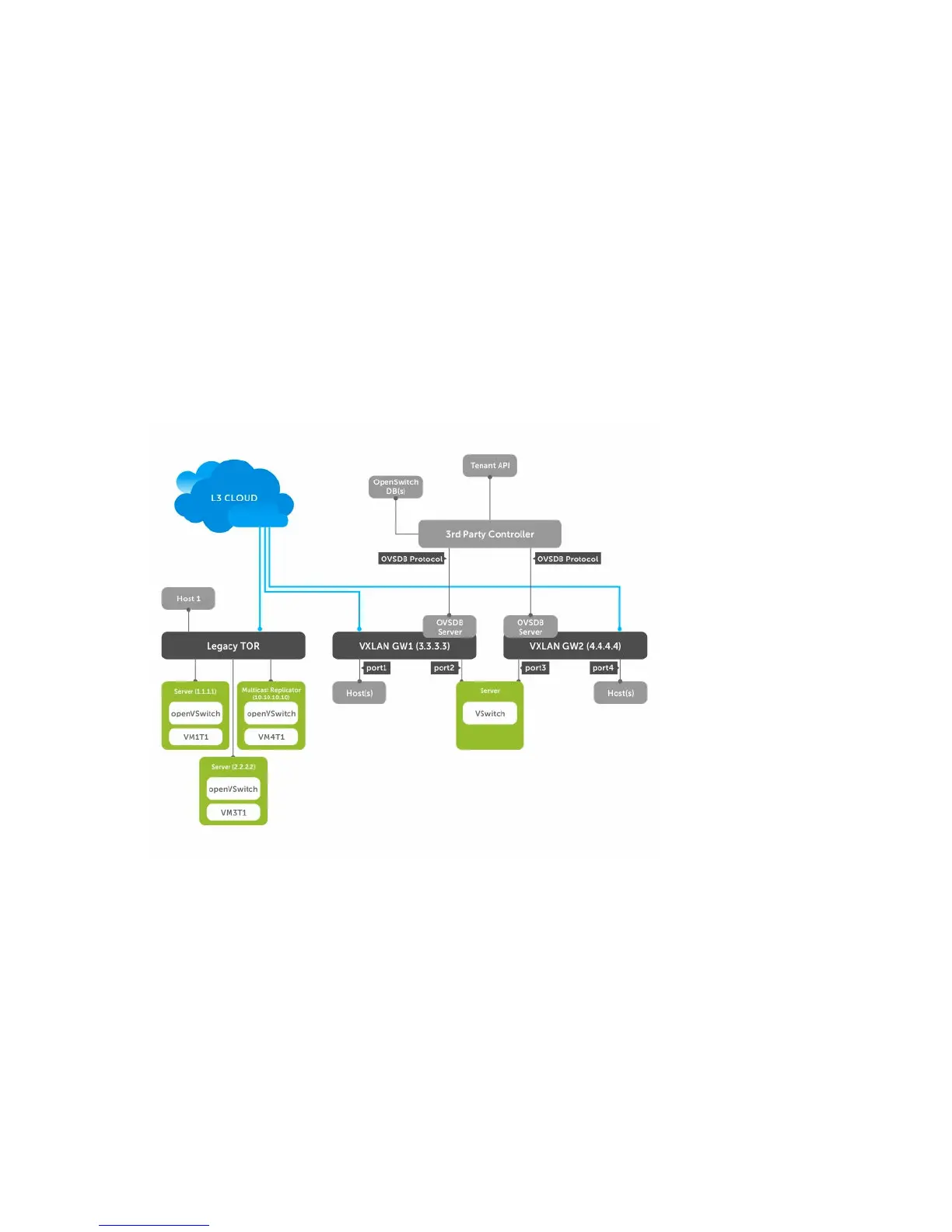

Figure 130. VXLAN Gateway

Virtual Extensible LAN (VXLAN)

975
