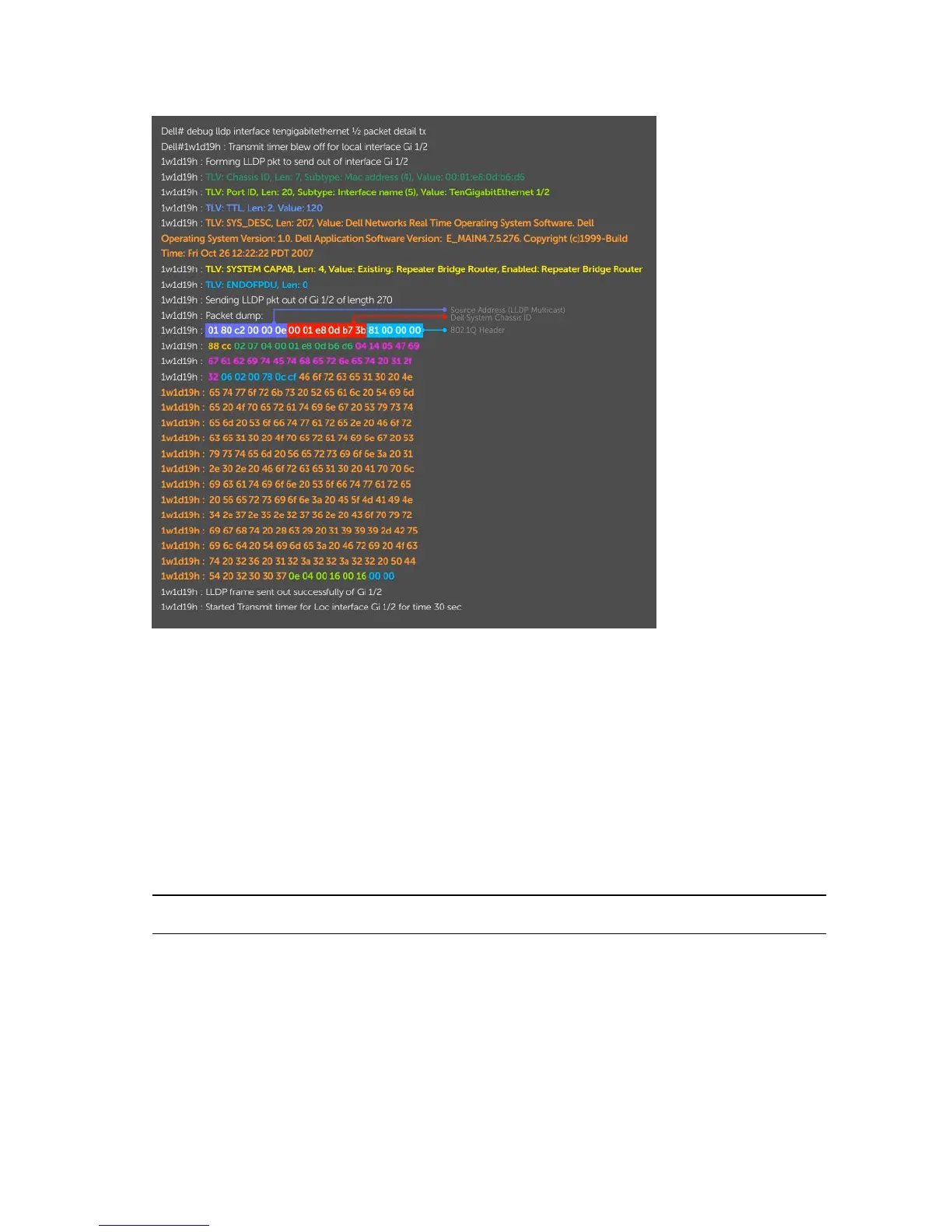

Figure 76. The debug lldp detail Command — LLDPDU Packet Dissection
Relevant Management Objects
Dell Networking OS supports all IEEE 802.1AB MIB objects.
The following tables list the objects associated with:
• received and transmitted TLVs
• the LLDP configuration on the local agent
• IEEE 802.1AB Organizationally Specific TLVs
• received and transmitted LLDP-MED TLVs
Table 55. LLDP Configuration MIB Objects
MIB Object
Category
LLDP Variable LLDP MIB Object Description
LLDP
Configuration
adminStatus lldpPortConfigAdminStatus Whether you enable the
local LLDP agent for
transmit, receive, or both.
msgTxHold lldpMessageTxHoldMultiplie
r
Multiplier value.
Link Layer Discovery Protocol (LLDP)
543
