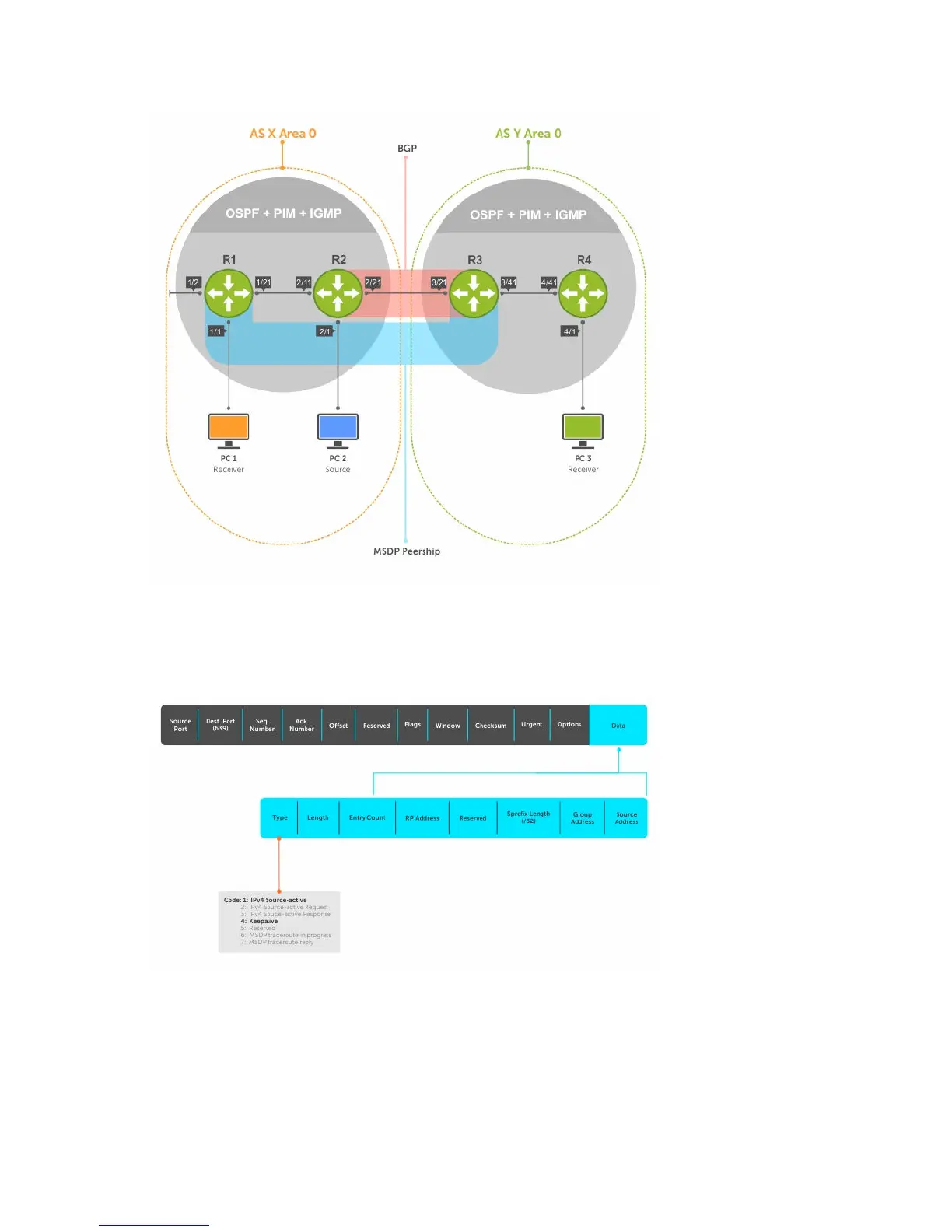

Figure 77. Multicast Source Discovery Protocol (MSDP)

RPs advertise each (S,G) in its domain in type, length, value (TLV) format. The total number of TLVs

contained in the SA is indicated in the “Entry Count” field. SA messages are transmitted every 60 seconds,

and immediately when a new source is detected.

Figure 78. MSDP SA Message Format

554

Multicast Source Discovery Protocol (MSDP)
