Dell S6000–ON - Page 596

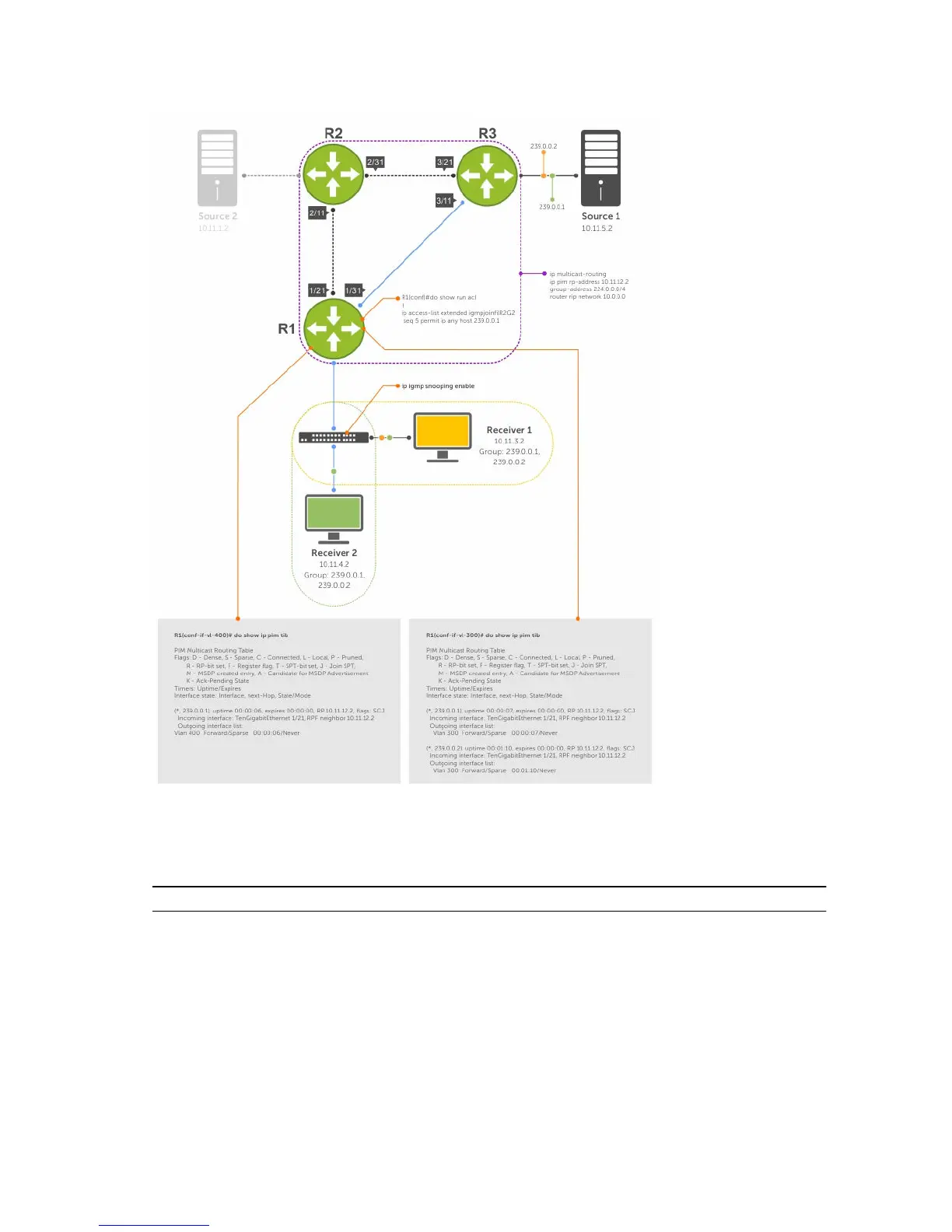

Figure 90. Preventing a Host from Joining a Group
The following table lists the location and description shown in the previous illustration.
Table 61. Preventing a Host from Joining a Group — Description
Location Description
1/21/1
• Interface TenGigabitEthernet 1/21/1
• ip pim sparse-mode
• ip address 10.11.12.1/24
• no shutdown
1/31/1
• Interface TenGigabitEthernet 1/31/1
• ip pim sparse-mode
596
Multicast Features
