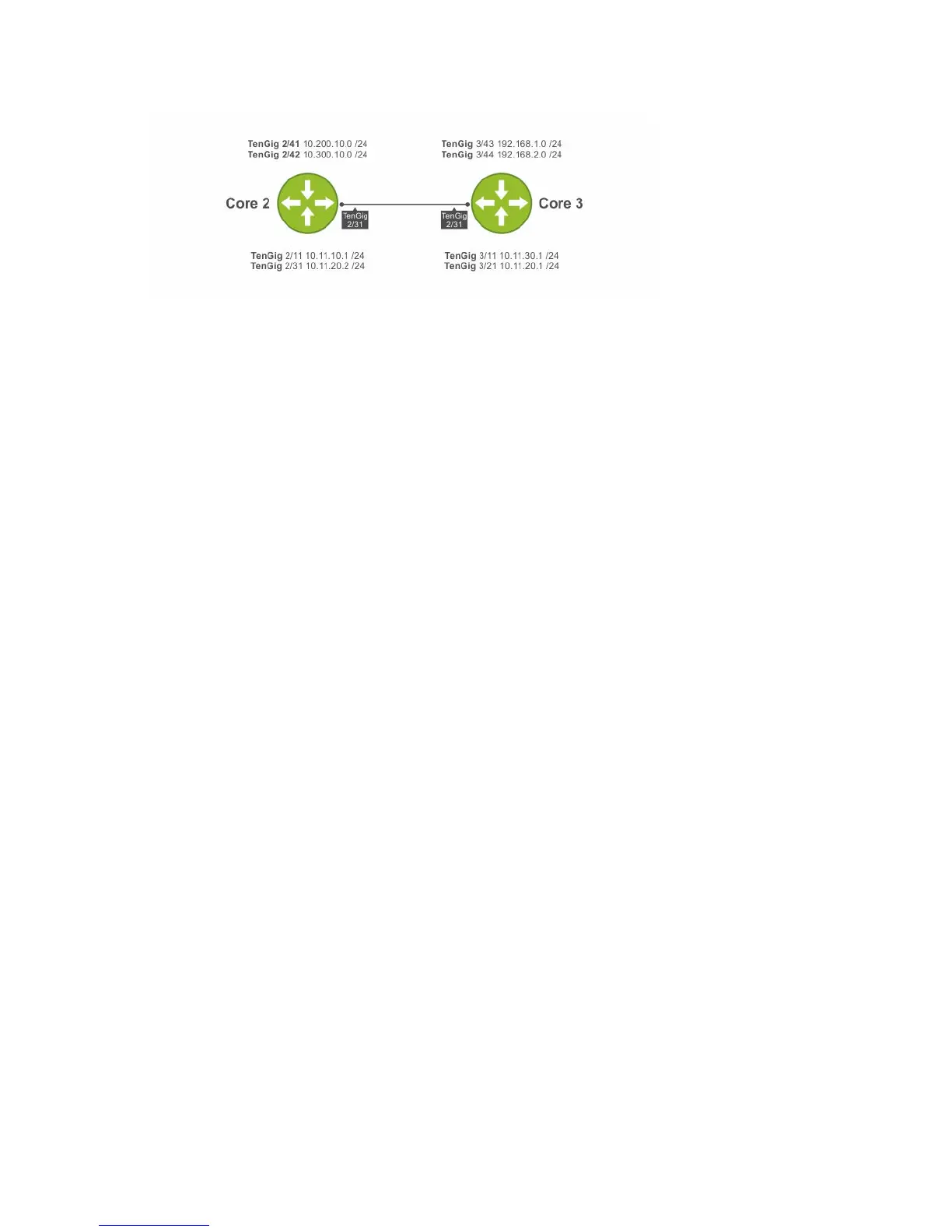

Figure 107. RIP Topology Example
RIP Configuration on Core2
The following example shows how to configure RIPv2 on a host named Core2.
Example of Configuring RIPv2 on Core 2
Core2(conf-if-te-2/3/1)#
Core2(conf-if-te-2/3/1)#router rip
Core2(conf-router_rip)#ver 2
Core2(conf-router_rip)#network 10.200.10.0
Core2(conf-router_rip)#network 10.300.10.0
Core2(conf-router_rip)#network 10.11.10.0
Core2(conf-router_rip)#network 10.11.20.0
Core2(conf-router_rip)#show config
!
router rip
network 10.0.0.0
version 2
Core2(conf-router_rip)#
Core 2 RIP Output
The examples in the section show the core 2 RIP output.
Examples of the show ip Commands to View Core 2 Information
• To display Core 2 RIP database, use the show ip rip database command.
• To display Core 2 RIP setup, use the show ip route command.
• To display Core 2 RIP activity, use the show ip protocols command.
The following example shows the show ip rip database command to view the learned RIP routes on
Core 2.
Core2(conf-router_rip)#end
00:12:24: %RPM0-P:CP %SYS-5-CONFIG_I: Configured from console by console
Core2#show ip rip database
Total number of routes in RIP database: 7
10.11.30.0/24
[120/1] via 10.11.20.1, 00:00:03, TenGigabitEthernet 2/3/1
10.300.10.0/24 directly connected,TenGigabitEthernet 2/4/1
10.200.10.0/24 directly connected,TenGigabitEthernet 2/5/1
10.11.20.0/24 directly connected,TenGigabitEthernet 2/6/1
10.11.10.0/24 directly connected,TenGigabitEthernet 2/11/1
10.0.0.0/8 auto-summary
192.168.1.0/24
[120/1] via 10.11.20.1, 00:00:03, TenGigabitEthernet 2/3/1
192.168.1.0/24 auto-summary
192.168.2.0/24
[120/1] via 10.11.20.1, 00:00:03, TenGigabitEthernet 2/3/1
