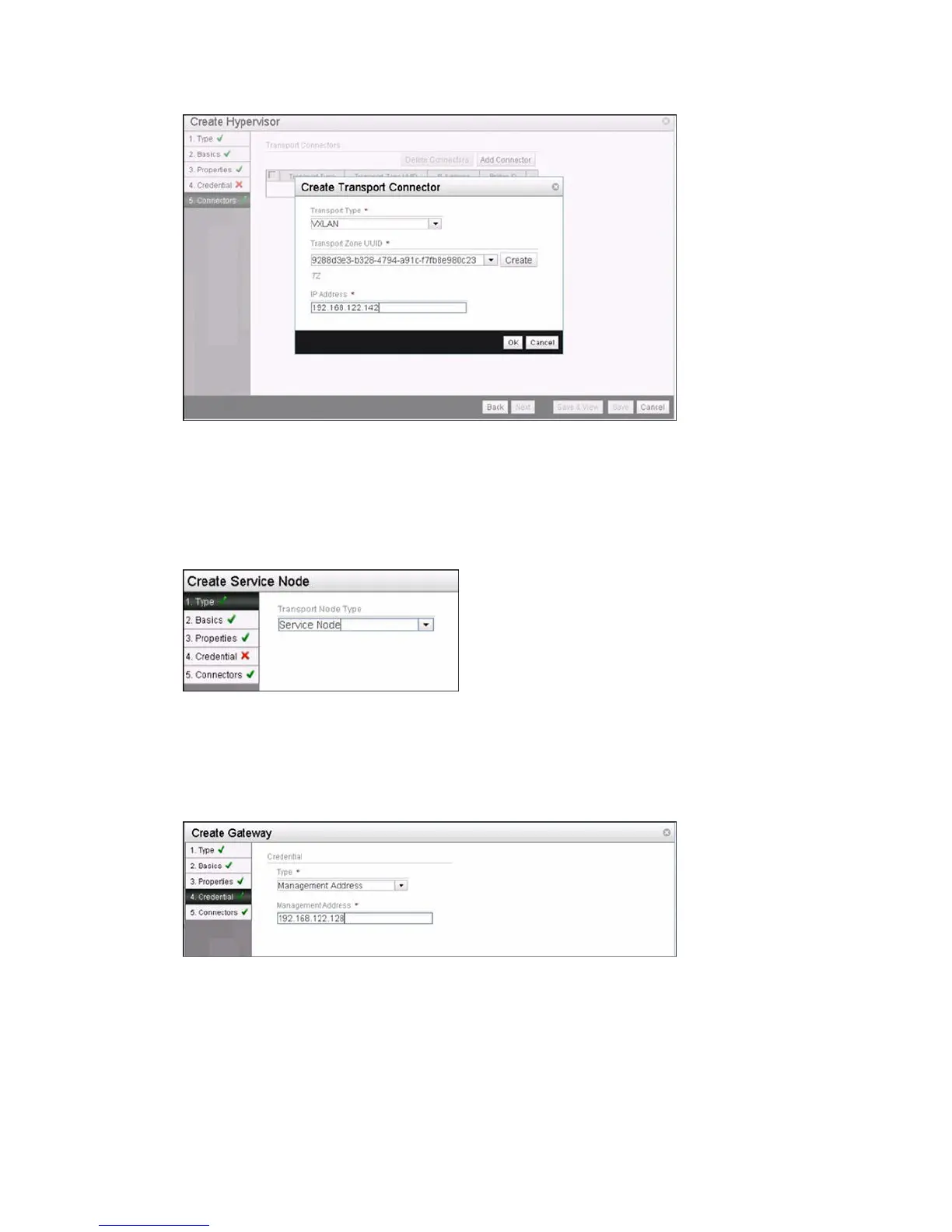

Figure 134. Create Transport Connector
2. Create Service Node
To create service node, the required fields are the IP address and SSL certificate of the server. The
Service node is responsible for broadcast/unknown unicast/multicast traffic replication. The
following is the snapshot of the user interface for the creation of service node:
Figure 135. Create Service Node
3. Create VXLAN Gateway
To create a VXLAN L2 Gateway, the IP address of the Gateway is mandatory. The following is the
snapshot of the user interface in creating a VXLAN Gateway
Figure 136. Create Gateway
4. Create Logical Switch
980
Virtual Extensible LAN (VXLAN)
