DVP15MC11T Operation Manual
3. Keep enough space for air ventilation.
4. The fan or air conditioner must be installed if the environment temperature is higher than 55°C.
Notes:
1. The control cabinet of the height 1.0m~2.0m is easy for installation and operation.
2. Make the installation away from the high-voltage equipment and power equipment.
3. The power supply in the control cabinet must be cut before installation.
5.2.4 Actions for Anti-interference
Do not install the controller in the control cabinet where there is high-voltage equipment.
Please keep at least 200mm far away from the power wire for the installation.
There should be a grounding wire for the control cabinet.
5.2.5 Dimension Requirement in the Control Cabinet

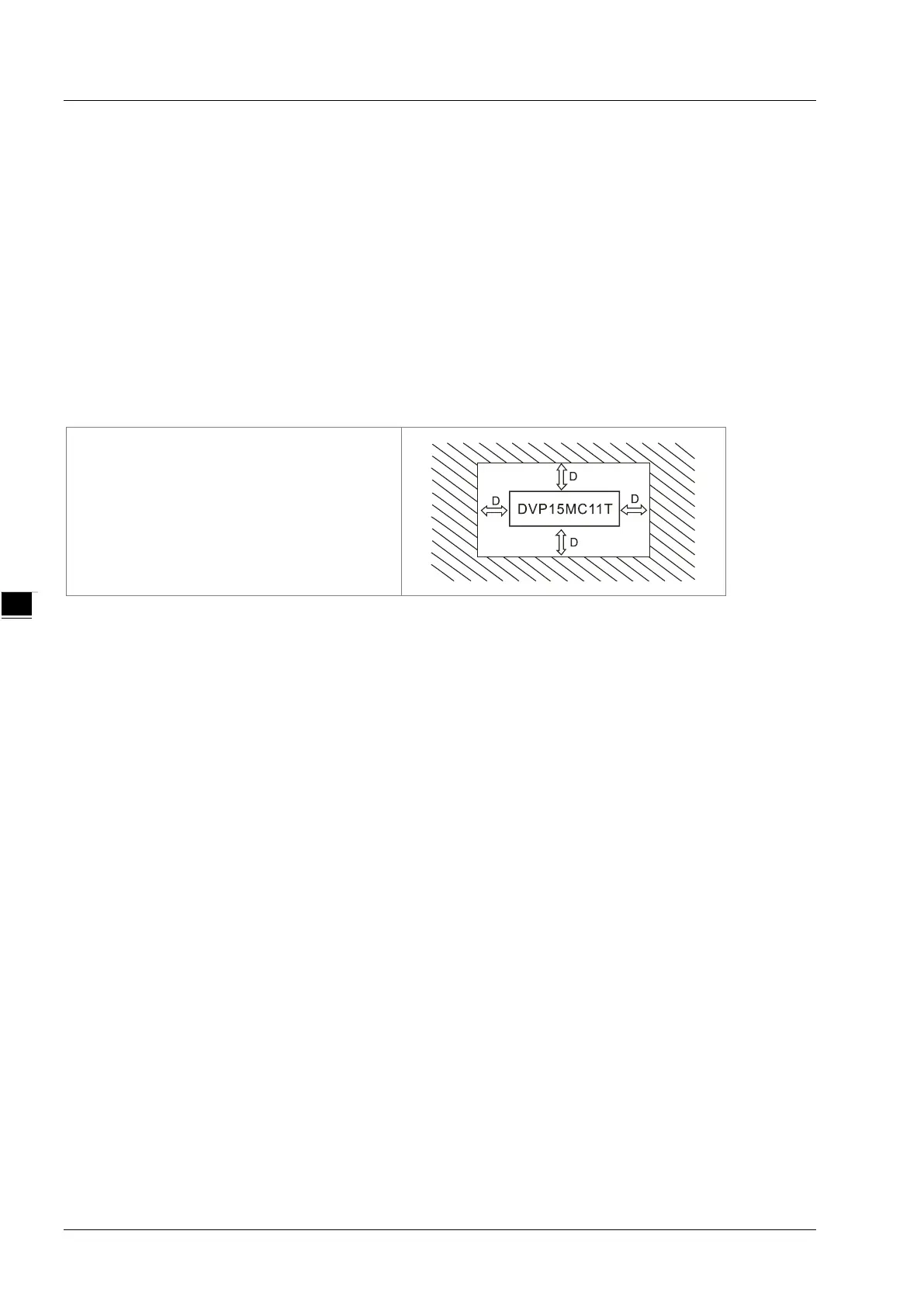

Installation Figure
DVP15MC11T has to be installed in an
enclosure
. In order to ensure that the
controller radiates heat normally, the space
between the controller and the enclosure has
to be larger than 50 millimeters. D > 50mm
