In this situation, the feed axis and rotary cut axis in SYNC area and non-SYNC area keep synchronous in
speed. The rotary cut axis does not need to make any adjustment.
3. Long material cutting

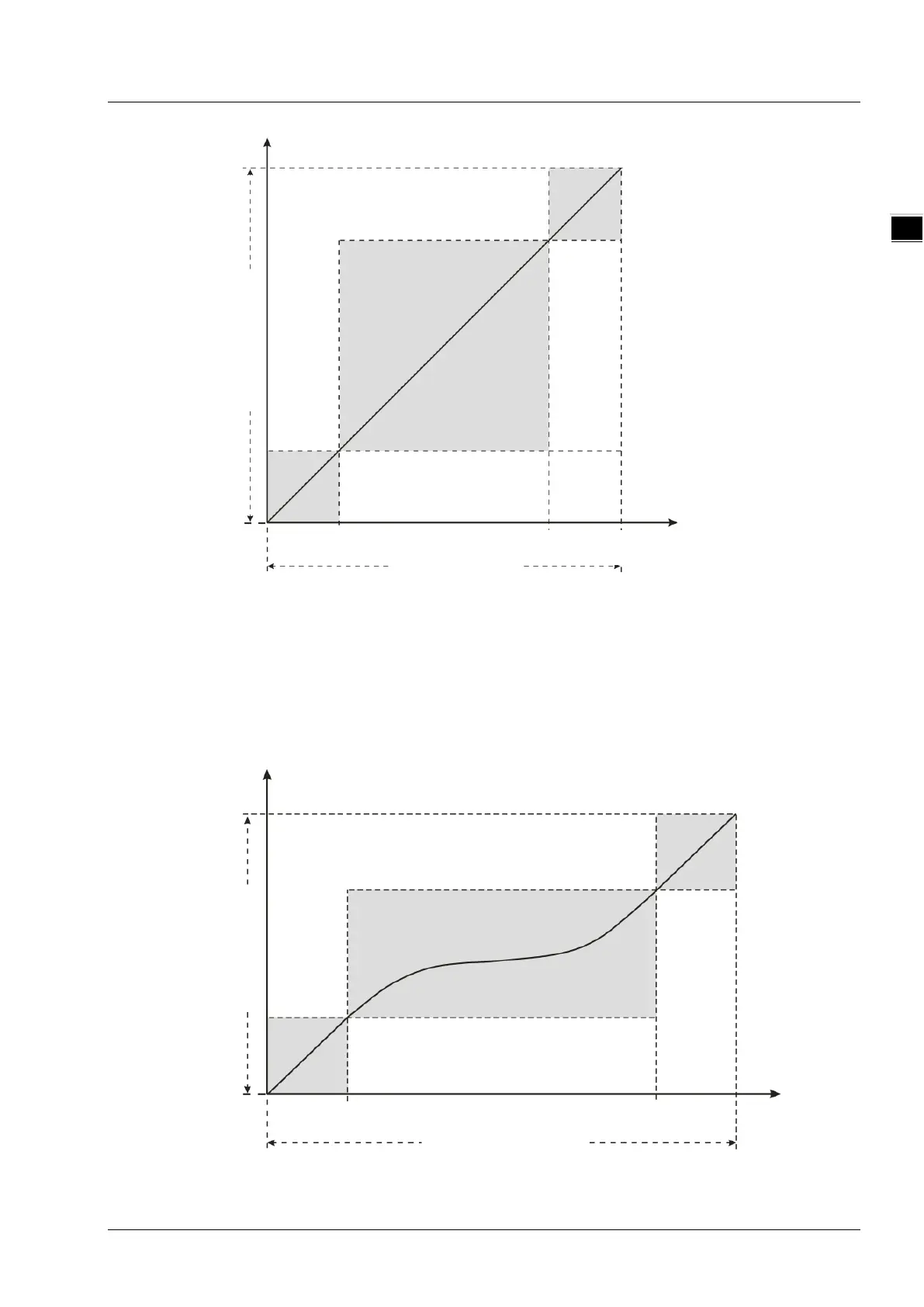

When the cutting length is greater than the knife roller circumference, the rotary-cut curve for any cycle
is shown below.
Rotary cut axis
Feed axis
SYNC area
Adjustment area
SYNC
area
Circumference of the
knife roller
End of SYNC area
Start of SYNC area
Cutting length
Cutting length equals the
knife roller circumference
Rotary cut axis
Feed axis
Cutting length is greater than the
knife roller circumference
Start of SYNC area
End of SYNC area
Circumference of
the
knife roller
SYNC
area
Adjustment area
SYNC area
Cutting length
