DVP15MC11T Operation Manual
12
1
LED state Explanation How to deal with
4. Check if the interference around CANopen
bus cable is too strong.
Red light single
flash
The bus error is out of the alert
level.
1. Check if the CANopen bus cable connection
is correct.
2. Check if the CANopen bus cable is Delta
standard cable.
3. Check if the two ends of CANopen bus have
connected a terminal resistor respectively.
4. Check if the baud rate of CANopen port is
the same as that of other slaves.
5. Check if the interference around CANopen
bus cable is too strong.
Red light ON Bus-off
1. Check if the bus cable wiring in CANopen
network is correct.
2. The baud rates of DVP15MC11T and other
stations are same.

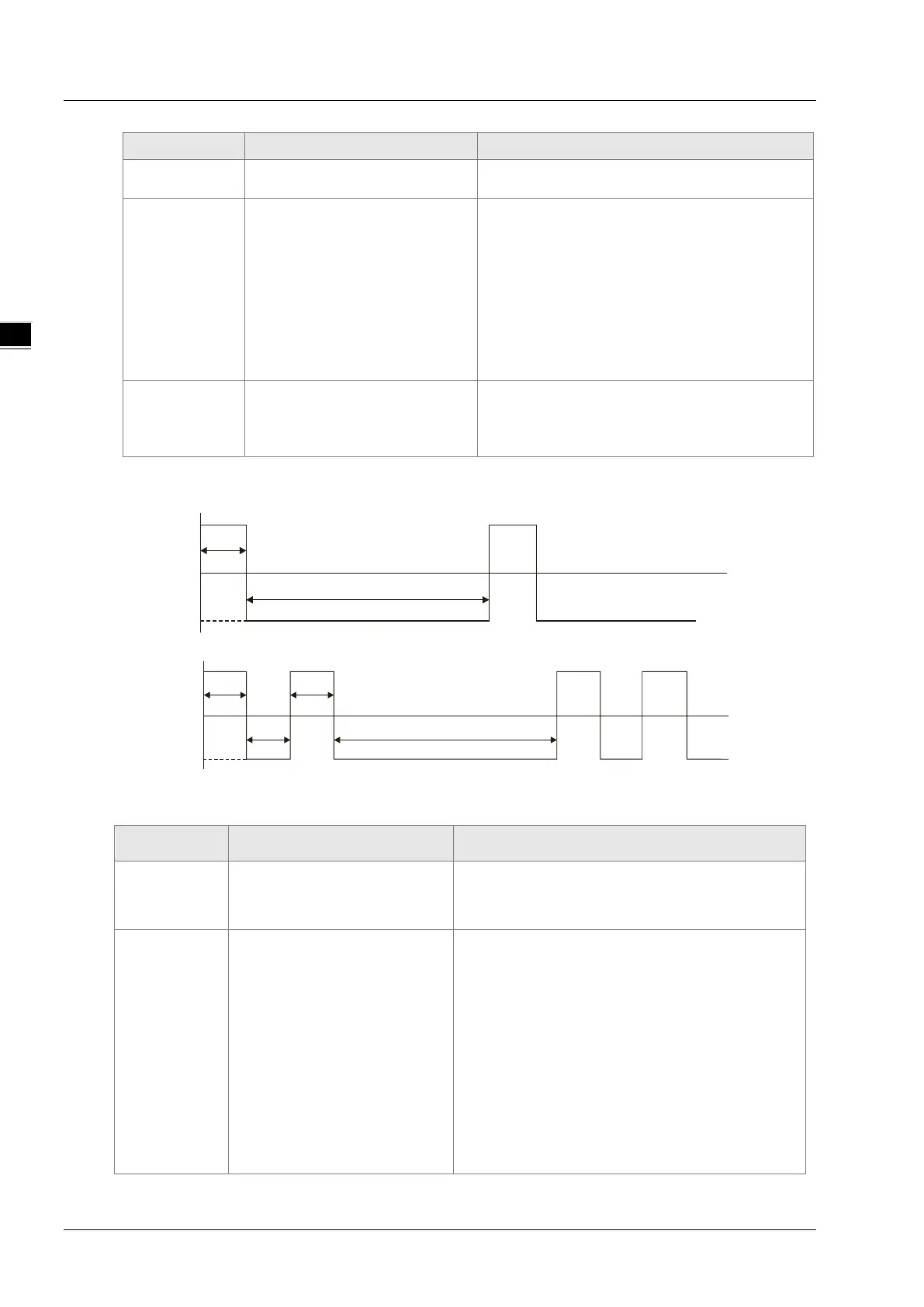

 ERR LED: Red light is in a single flash and double flashes as below.
 CAN2 (Motion) LED
 RUN LED
LED state Explanation How to deal with
LED OFF
No axis is configured for
CAN2 (Motion) port in the
software.
Configure the slave connected to Motion port to
the master in the software.
Green light
blinking
Not all of the axes configured
for CAN2 (Motion) in the
software have been online.
1. Check if the bus cable connection in the
Motion network is correct.
2. Check if the Motion bus cable is Delta
standard CANopen cable.
3. Check if the two ends of Motion bus have
connected a terminal resistor respectively
4. Check if the baud rates of Motion port and
slaves are same.
5. Check if the slaves configrued in the
software have actually been connected to
ON
OFF
200ms
1000ms
Red light
single flash
ON
OFF
200m s
2 00ms
200m s
10 00ms
Red light
double flashes
12-4
