DVP15MC11T Operation Manual
Note: The power supply for COM/SSI port of DVP15MC11T is 5V power.
When VCC = 5V, connect the power voltage VCC of SSI encoder to pin 15 of COM/SSI interface and 0V
of SSI encoder to pin 8 of COM/SSI interface.
When VCC ǂ 5V, the power is supplied to SSI encoder alone according to the actual power voltage of
the SSI encoder which is connected.

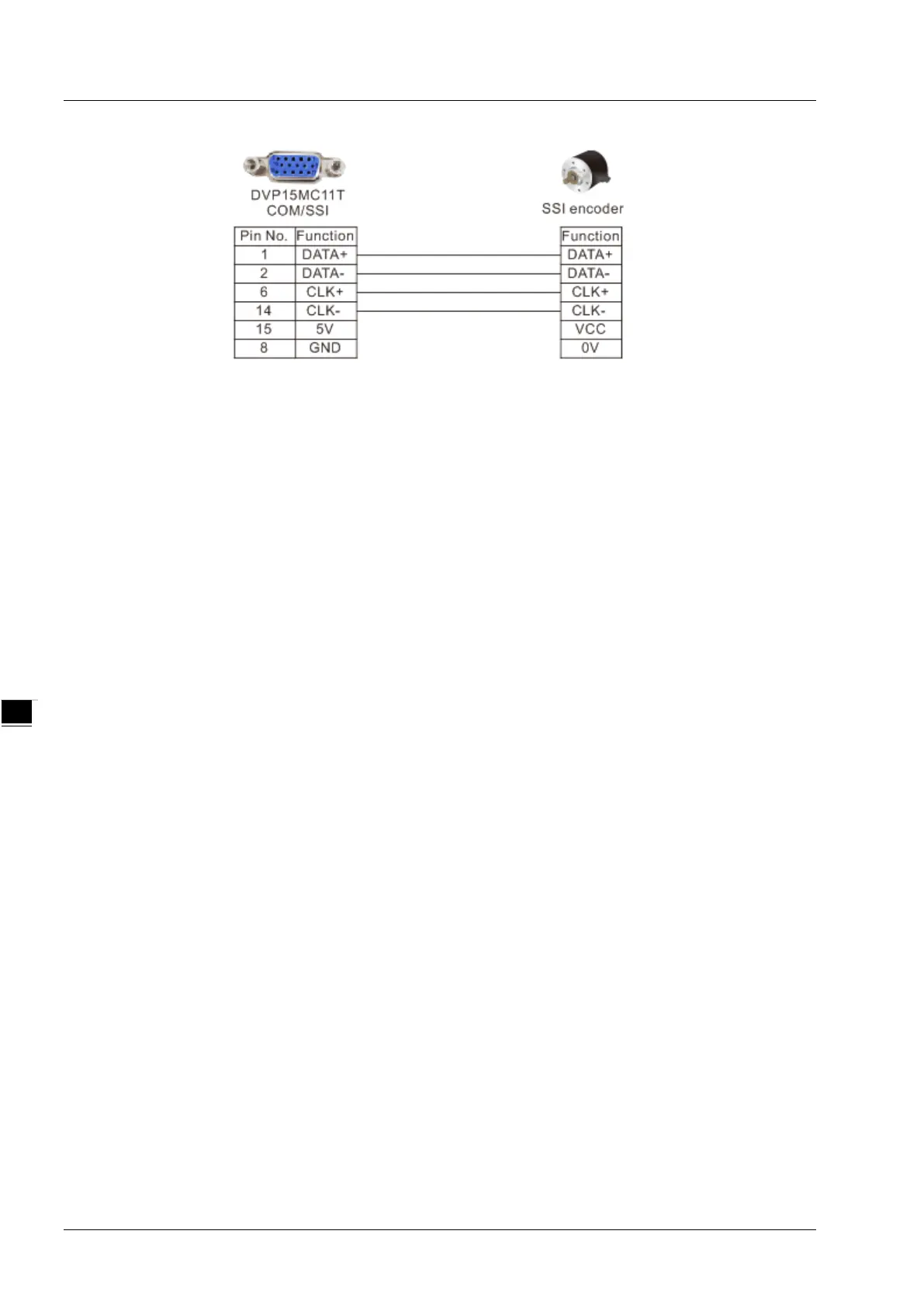

Specification for SSI Absolute Encoder Communication Cable
Please use the shielded pair-twisted cable for CLK+, CLK-, DATA+ and DATA- signal transmission.
