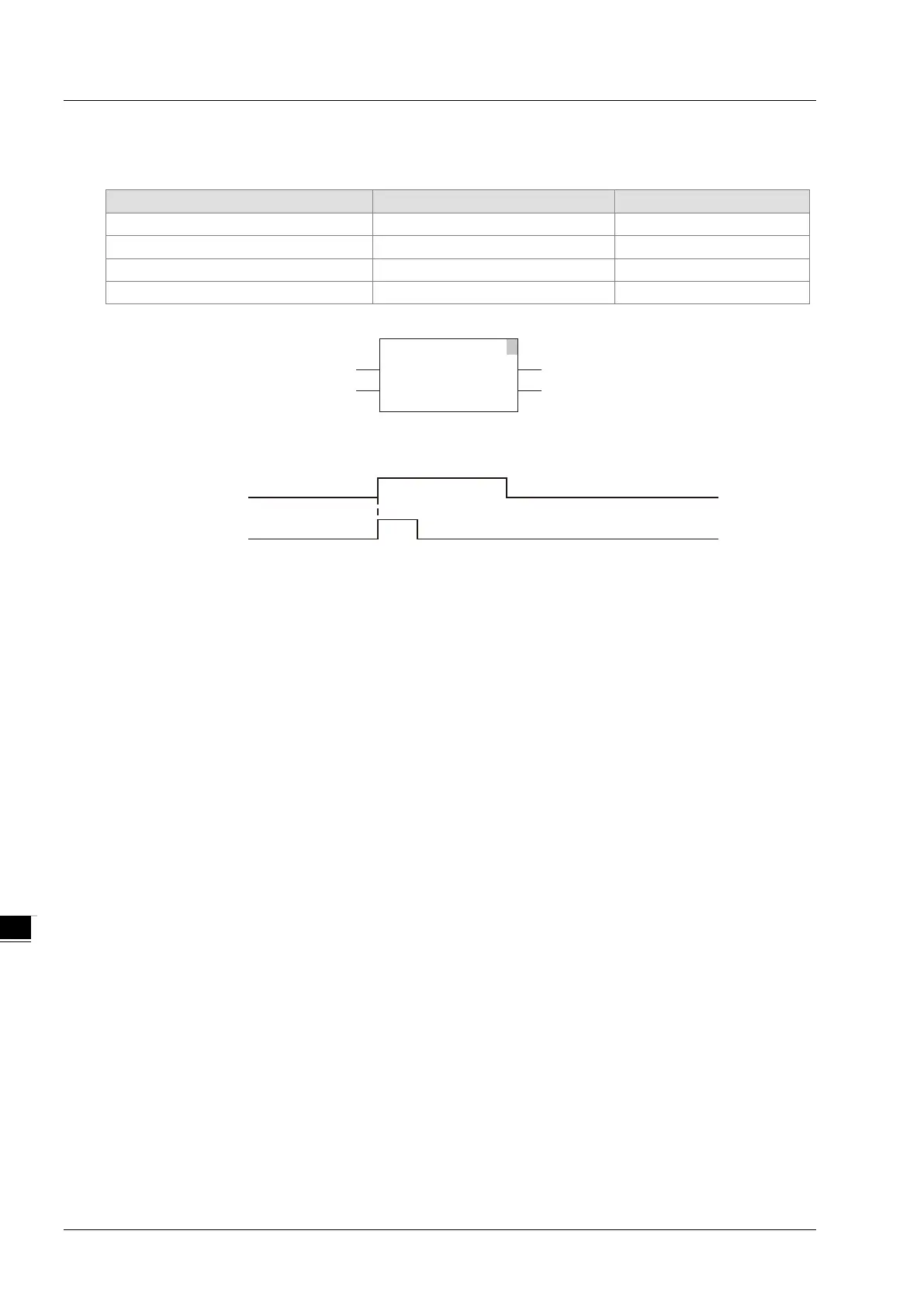

Programming Example
 The variable table and program
Variable name Data type Initial value
R_TRG
R_TRIG
R_TRG_EN
BOOL
FALSE
R_TRG_CLK
BOOL
FALSE
R_TRG_Q
BOOL
 Timing Chart:
1
R_TRIG
EN ENO
CLK Q
R_TRG
R_TRG_EN
R_TRG_CLK R_TRG_Q
R_TRG_CLK
R_TRG_Q
