DVP15MC11T Operation Manual
_8

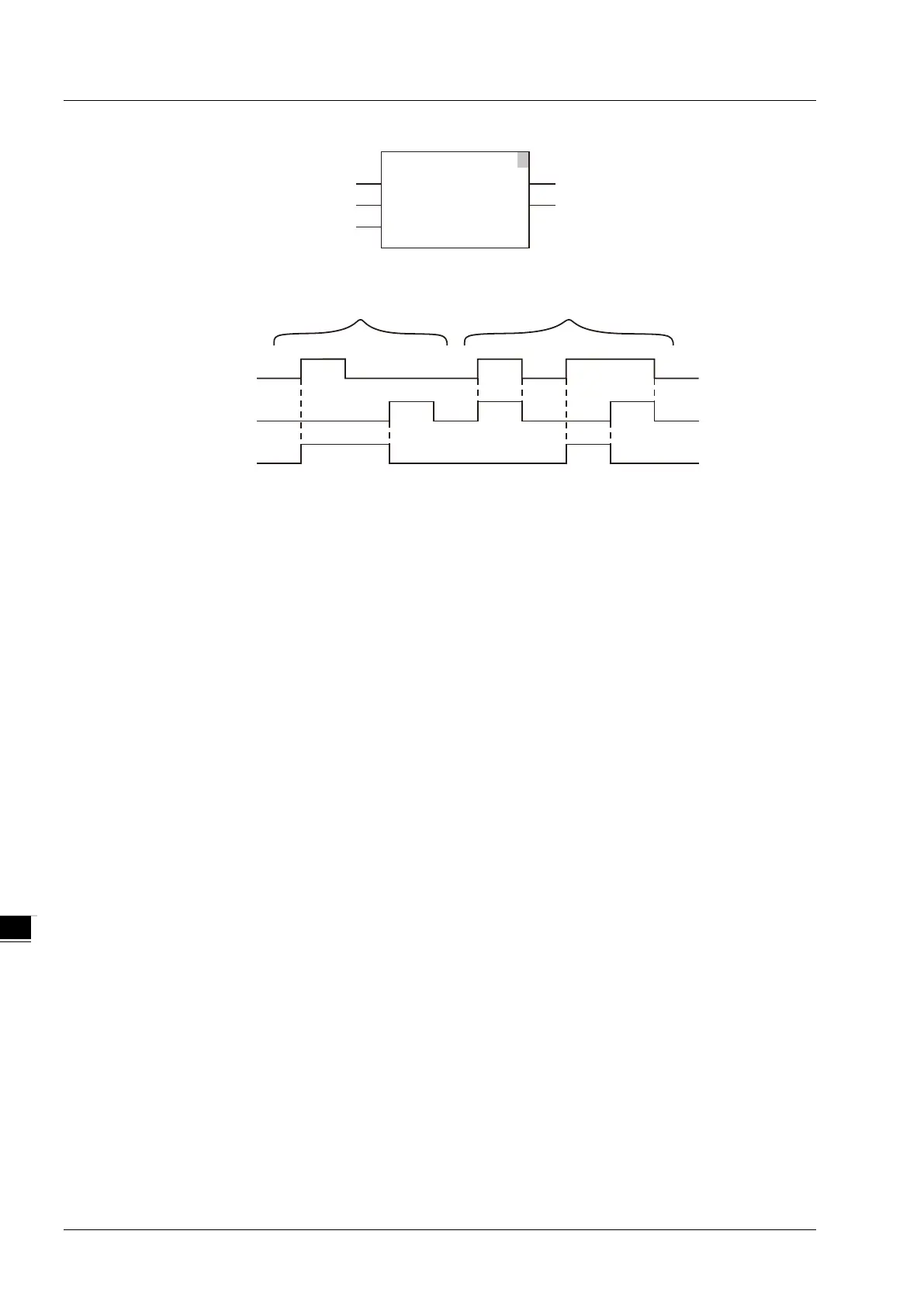

Timing Chart:
Case 1： When RS1_SET is TRUE, the output RS1_Q is TRUE. If RS1_Reset is TRUE, RS1_Q is
FALSE.
Case 2： When RS1_Reset is TRUE, RS1_Q is always FALSE.
1
RS
EN ENO
SET Q
Reset
RS1_EN
RS1_SET
RS1_Reset
RS1_Q
1RS
RS1_SET
RS1_Reset
RS1_Q
Case 1
Case 2
8-12
