_8

Programming Example
 The variable table and program
Variable name Data type Initial value
SR1
SR
SR1_EN
BOOL
FALSE
SR1_SET
BOOL
FALSE
SR1_Reset
BOOL
FALSE
SR1_Q
BOOL

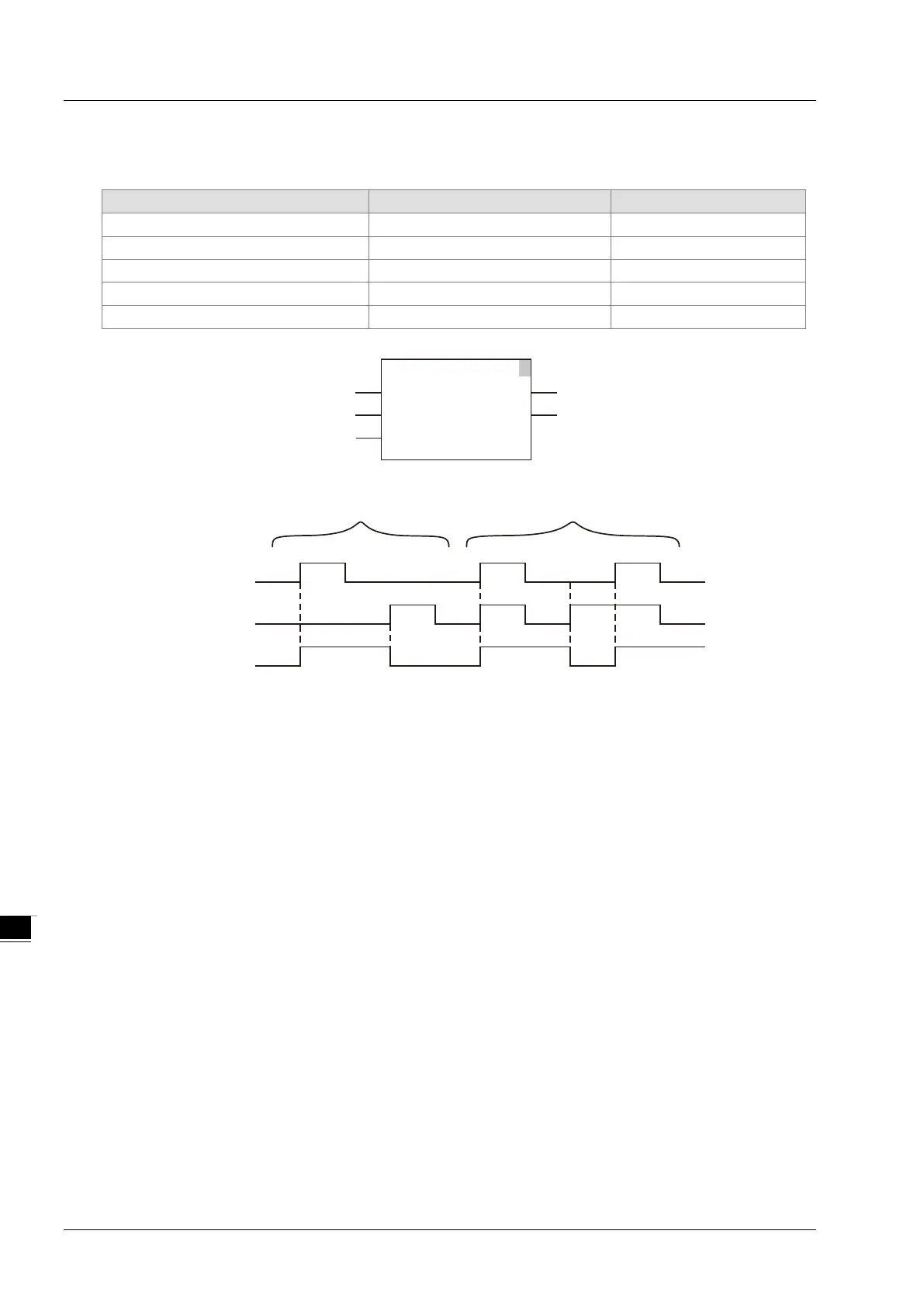

 Timing Chart:
Case 1： When SR1_SET is TRUE, SR1_Q is TRUE. When SR1_Reset is TRUE, SR1_Q is FALSE.
Case 2： SR1_SET is given the priority when SR1_SET and SR1_Reset are both TRUE.
1
SR
EN ENO
SET Q
1
Reset
SR1_EN
SR1_SET
SR1_Reset
SR1_Q
SR
SR1_SET
SR1_Reset
SR1_Q
Case 1
Case 2
8-14
