AS Series Module Manual
10-16
10

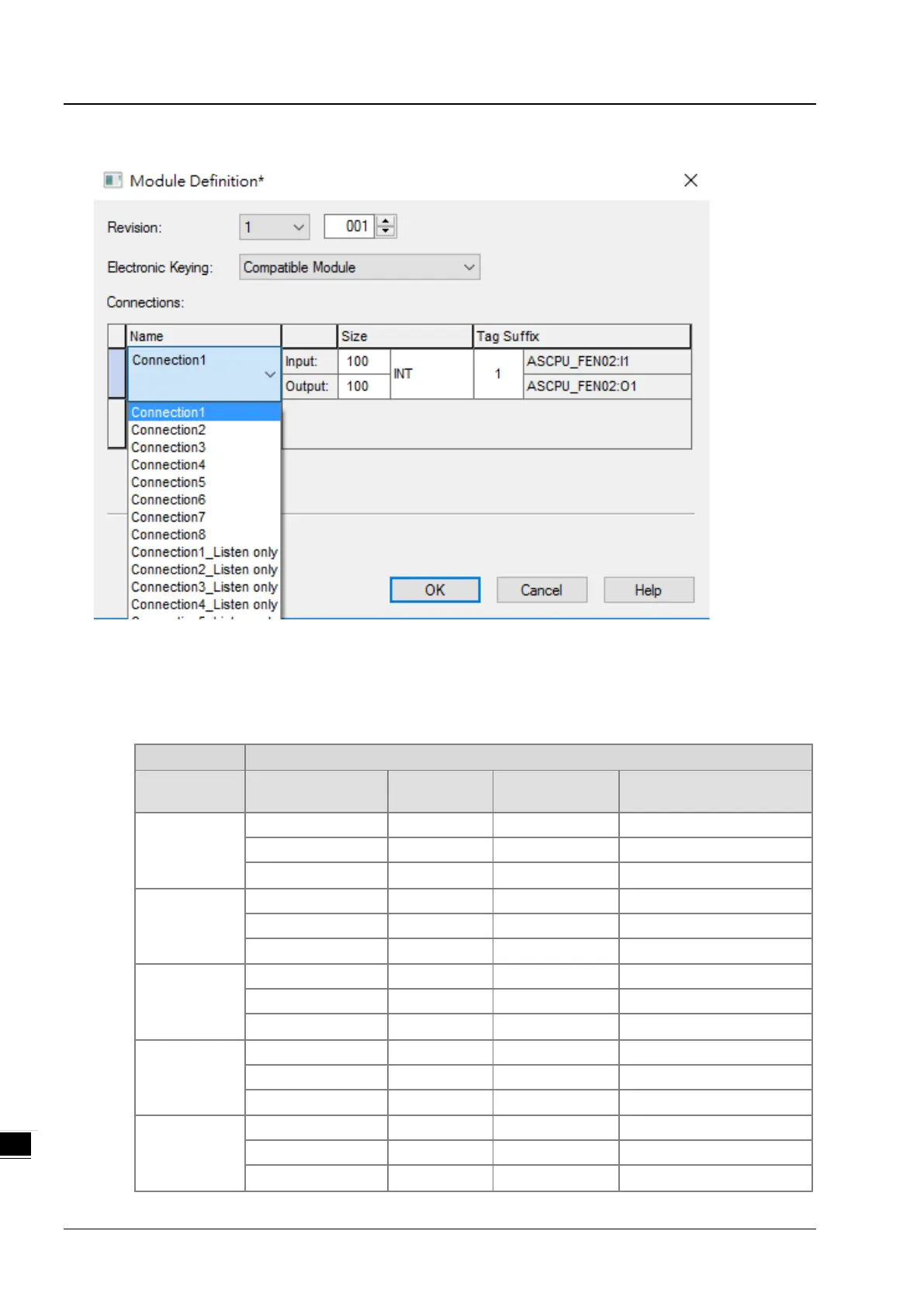

(4) Setting up the data mapping table
I: Input data (TO), Ex. Connection 1 is corresponding to PLC D3000~D3099.
O: Output data (OT), Ex. Connection 1 is corresponding to PLC D2000~D2099.
C: here corresponds to the configurations. You can edit the corresponding PLC addresses of input and output. After
editing, you need to download the parameters to Rockwell PLC.
I/O Message Connection
Connection No. Function
Instance
Attribute
Length Defaults
Connection 1
Input (TO) 0x65 100 words D3000~D3099
Output (OT) 0x64 100 words D2000~D2099
Configuration
0x80
8 words
Refer to the table below
Connection 2
Input (TO) 0x67 100 words D3100~D3199
Output (OT) 0x66 100 words D2100~D2199
Configuration 0x81 8 words Refer to the table below
Connection 3
Input (T

O)
0x69
100 words
D3200~D3299
Output (O

T)
0x68
100 words
D2200~D2299
Configuration 0x82 8 words Refer to the table below
Connection 4
Input (TO) 0x6B 100 words D3300~D3399
Output (OT) 0x6A 100 words D2300~D2399
Configuration 0x83 8 words Refer to the table below
Connection 5
Input (TO) 0x6D 100 words D3400~D3499
Output (OT) 0x6C 100 words D2400~D2499
Configuration 0x84 8 words Refer to the table below
