Delta AS Series Manual

Chapter 10 Function Cards
10-17
10

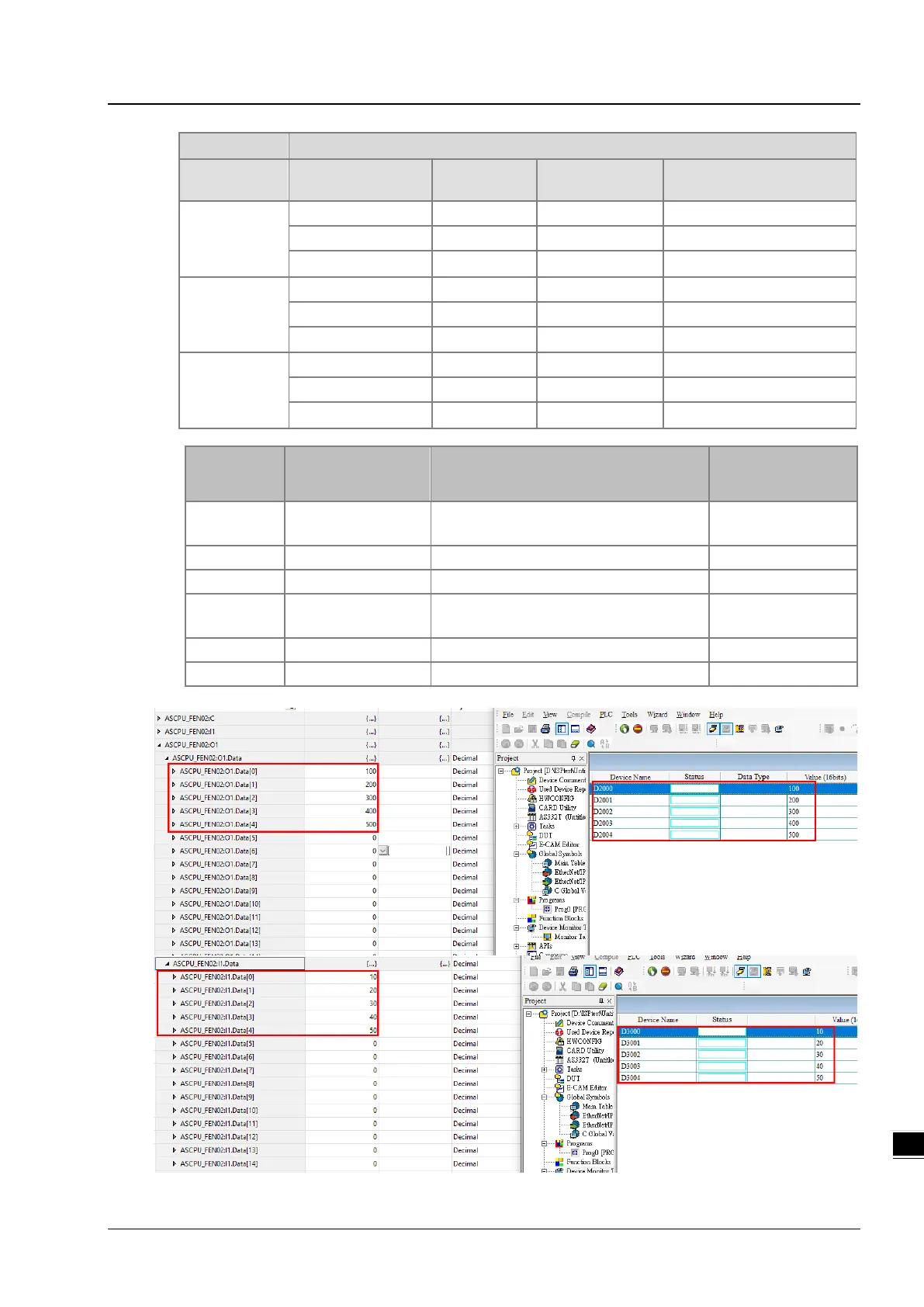

I/O Message Connection
Connection No. Function
Instance
Attribute
Length Defaults
Connection 6
Input (TO) 0x6F 100 words D3500~D3599
Output (OT) 0x6E 100 words D2500~D2599
Configuration 0x85 8 words Refer to the table below
Connection 7
Input (T

O)
0x71
100 words
D3600~D3699
Output (OT) 0x70 100 words D2600~D2699
Configuration 0x86 8 words Refer to the table below
Connection 8
Input (T

O)
0x73
100 words
D3700~D3799
Output (O

T)
0x72
100 words
D2700~D2799
Configuration 0x87 8 words Refer to the table below
Configuration
address
Data type Description
Defaults
(Connection 1)
Word[0] UINT
Input corresponding device
0: D, 1: X, 2: Y
0
Word[1]
UINT
Reserved
200
Word[2-3]
DWORD
Input corresponding device number
3000
Word[4] UINT
Output corresponding device
0: D, 2: Y
0
Word[5] UINT Reserved 200
Word[6-7]
DWORD
Output
corresponding device number
2000

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
