Delta AS Series Manual

Chapter 14 High Speed Counter Module AS02HC
14-7
14

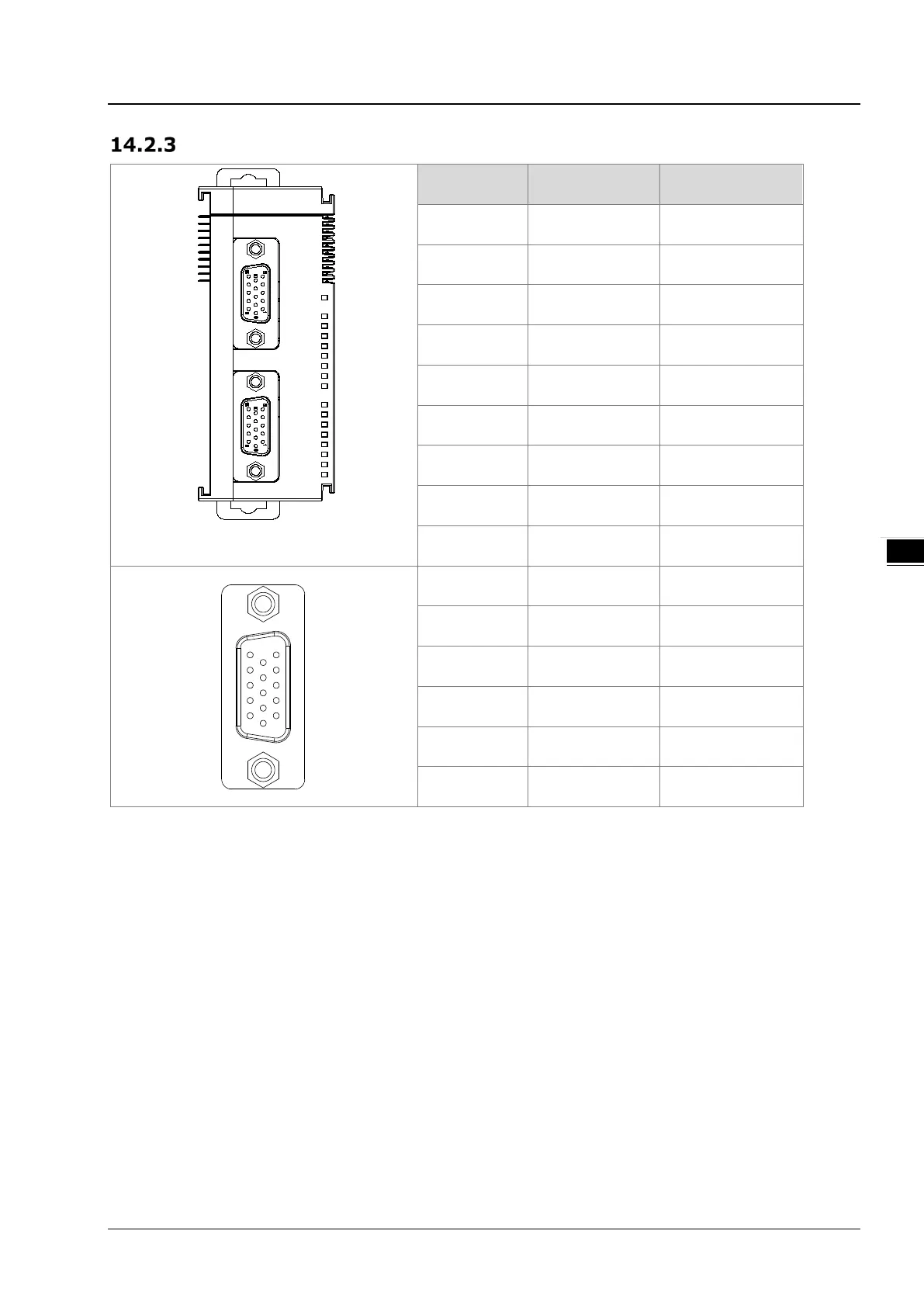

Terminals
Pin No. CH1 CH2
8 A1+ A2+
3 A1- A2-
7 B1+ B2+
2 B1- B2-
6 Z1+ Z2+
1 Z1- Z2-
10 CLK1+ CLK2+
5 CLK1- CLK2-
9 DATA1+ DATA2+
D-sub15 pin
5
15
1 0 6
1
11
4 DATA1- DATA2-
14 +5VO1 +5VO2
15 GND1 GND2
12 Y0.0 Y0.2
11 Y0.1 Y0.3
13 COM0 COM1
PWR
ERR
CH1 Act.
CH1 A
CH1 B
CH1 Z
Y0.0
Y0.1
CH2 Act.
CH2 A
CH2 B
CH2 Z
Y0.2
Y0.3
02HC
CH1
CH2

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
