ASDA-B2 Chapter 6 Control Modes of Operation
Revision May, 2018 6-19
Analog speed command filter smooth the analog input command. Its time program is the
same as S-curve filter in normal speed. Also, the speed curve and the acceleration curve
are both continuous. The above is the diagram of analog speed command filter. The slope
of speed command in acceleration and deceleration is different. Users could adjust the
time setting (P1-34, P1-35, and P1-36) according to the actual situation to improve the
performance.
Command End Low-pass Filter
It is usually used to eliminate the unwanted high-frequency response or noise. It also can
smooth the command.
Related parameters:

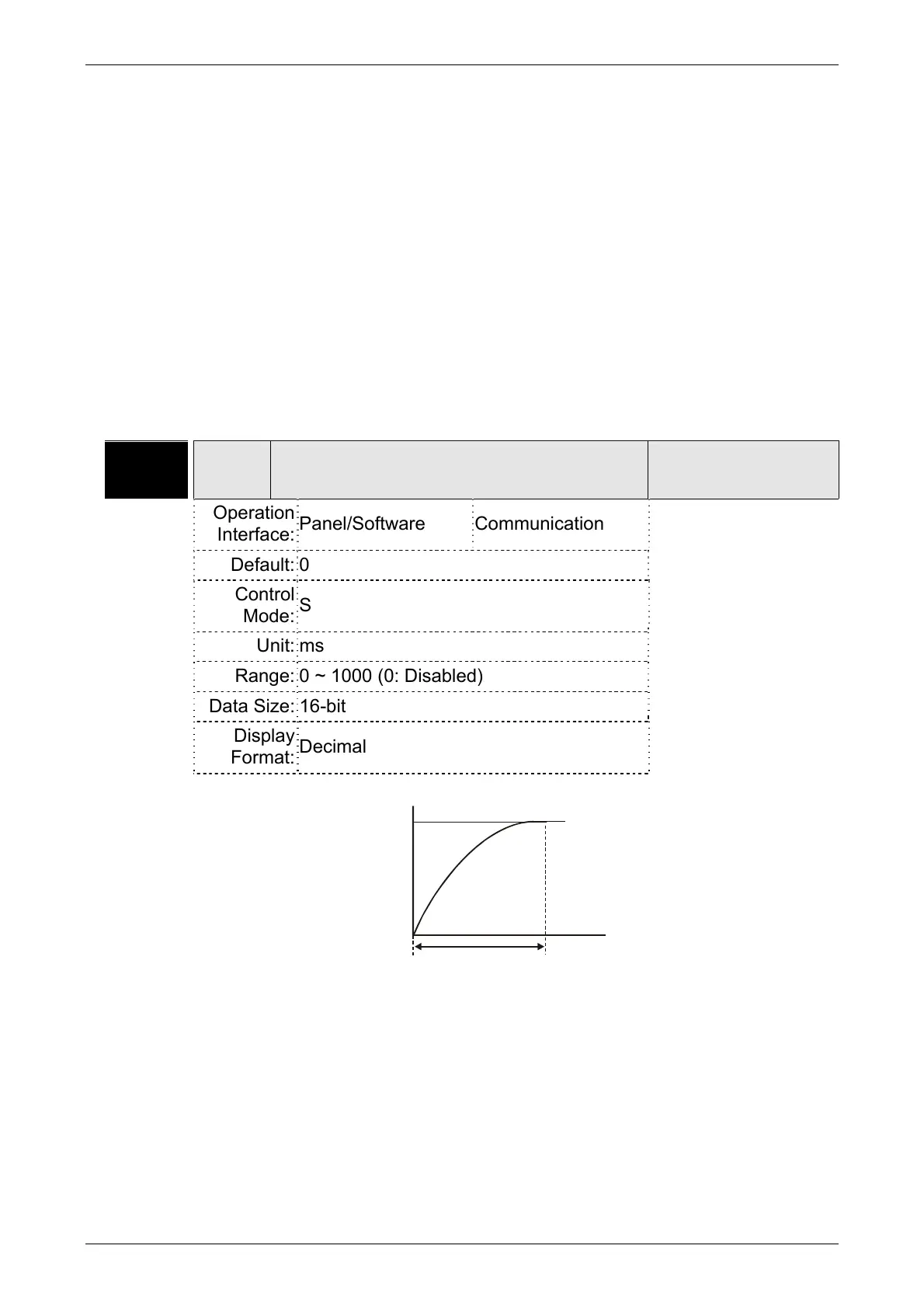

P1-06 SFLT
Analog Speed Command (Low-pass
Filter)
Address: 010CH
010DH
Operation
Interface:
Panel/Software Communication
Related Section:
Section 6.3.3
Default: 0
Control
Mode:
S
Unit: ms
Range: 0 ~ 1000 (0: Disabled)
Data Size: 16-bit
Display
Format:
Decimal
Settings: 0: Disabled
SFLT
Ta rge t S pee d
