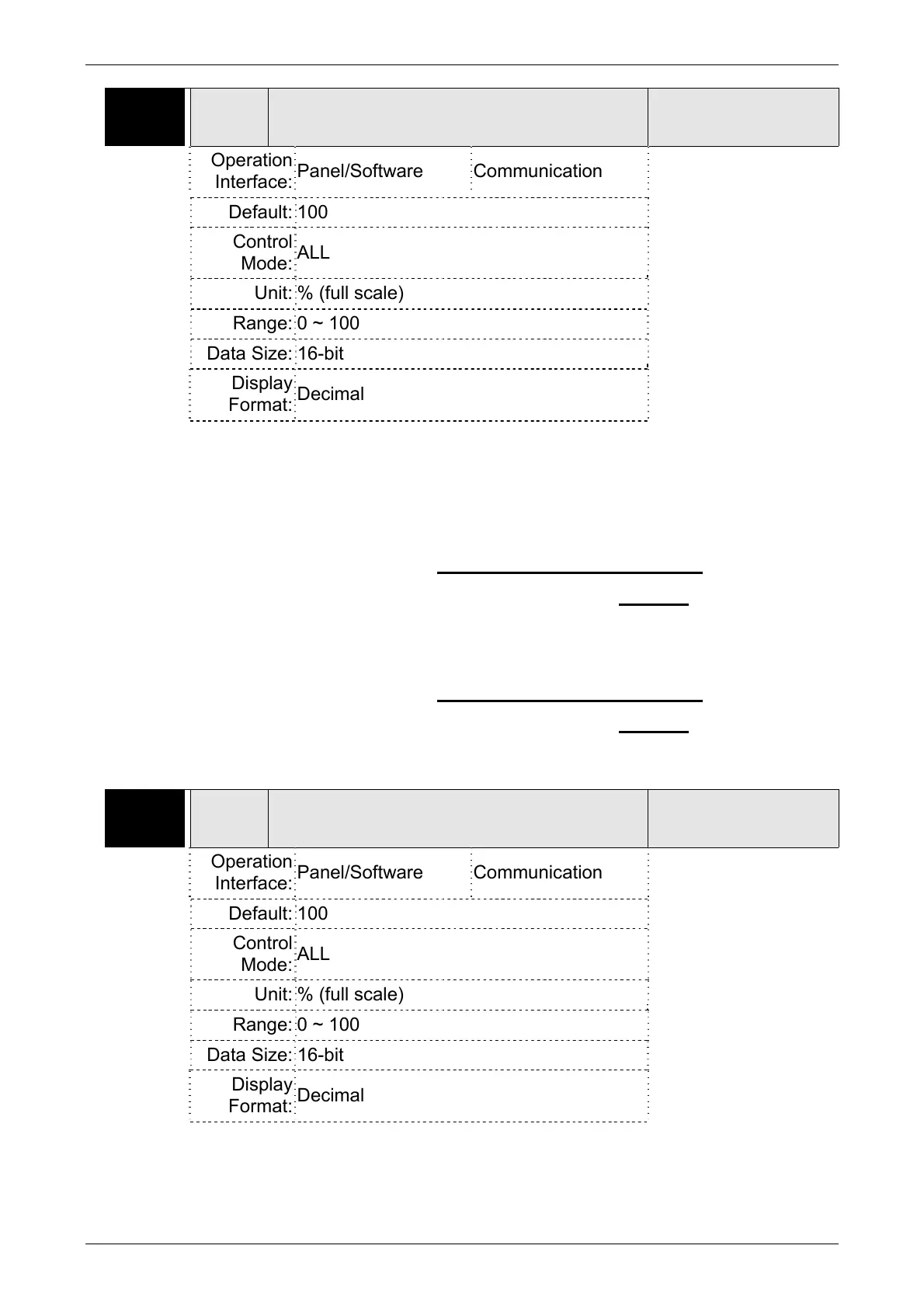

P1-04 MON1
Analog Monitor Output Proportion 1
(MON1)
Address: 0108H
0109H
Operation
Interface:
Panel/Software Communication
Related Section:
Section 6.4.4
Default: 100
Control
Mode:
ALL
Unit: % (full scale)
Range: 0 ~ 100
Data Size: 16-bit
Display
Format:
Decimal
Settings: Please refer to parameter P0-03 for the setting of analog output
selection.
Example: P0-03 = 01 (MON1 is motor speed analog output,
MON2 is motor torque analog output)
MON1 output voltage= 8 ×
Motor speed
(unit: Volts)
(Max. motor speed ×
P1-04
)
100
MON2 output voltage= 8 ×
Motor toque
(unit: Volts)
(Max. motor torque ×
P1-05
)
100
P1-05 MON2
MON2 Analog Monitor Output Proportion
2
Address: 010AH
010BH
Operation
Interface:
Panel/Software Communication
Related Section:
Section 6.4.4
Default: 100
Control
Mode:
ALL
Unit: % (full scale)
Range: 0 ~ 100
Data Size: 16-bit
Display
Format:
Decimal
Settings: Please refer to parameter P0-03 for the setting of analog output
selection.
Example: P0-03 = 01 (MON1 is motor speed analog output,
