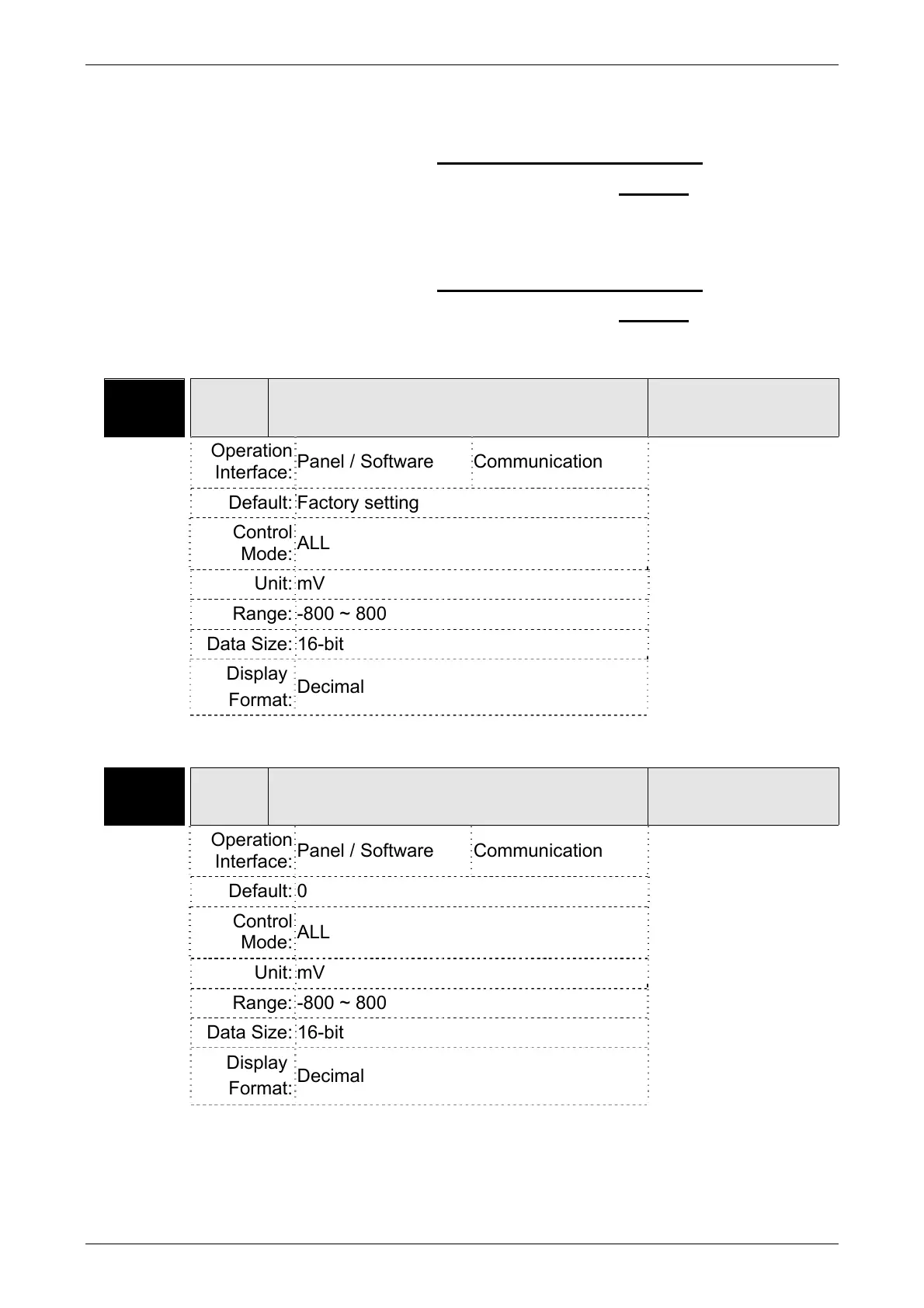

Page #158 background image
ASDA-B2 Chapter 6 Control Modes of Operation
Revision May, 2018 6-47
MON2 is motor torque analog output)
MON1 output voltage= 8 ×
Motor speed
(unit: Volts)
(Max. motor speed ×
P1-04
)
100
MON2 output voltage= 8 ×
Motor toque
(unit: Volts)
(Max. motor torque ×
P1-05
)
100
P4-20 DOF1
Offset Adjustment Value of Analog
Monitor Output (MON1)
Address: 0428H
0429H
Operation
Interface:
Panel / Software Communication
Related Section:
Section 6.4.4
Default: Factory setting
Control
Mode:
ALL
Unit: mV
Range: -800 ~ 800
Data Size: 16-bit
Display
Format:
Decimal
Settings: Offset adjustment value (cannot reset)
P4-21 DOF2
Offset Adjustment Value of Analog
Monitor Output (MON2)
Address: 042AH
042BH
Operation
Interface:
Panel / Software Communication
Related Section:
Section 6.4.4
Default: 0
Control
Mode:
ALL
Unit: mV
Range: -800 ~ 800
Data Size: 16-bit
Display
Format:
Decimal
Settings: Offset adjustment value (cannot reset)
