Delta ASDA-B2 Series User Manual

Chapter 7 Parameters ASDA-B2
7-22 Revision May, 2018

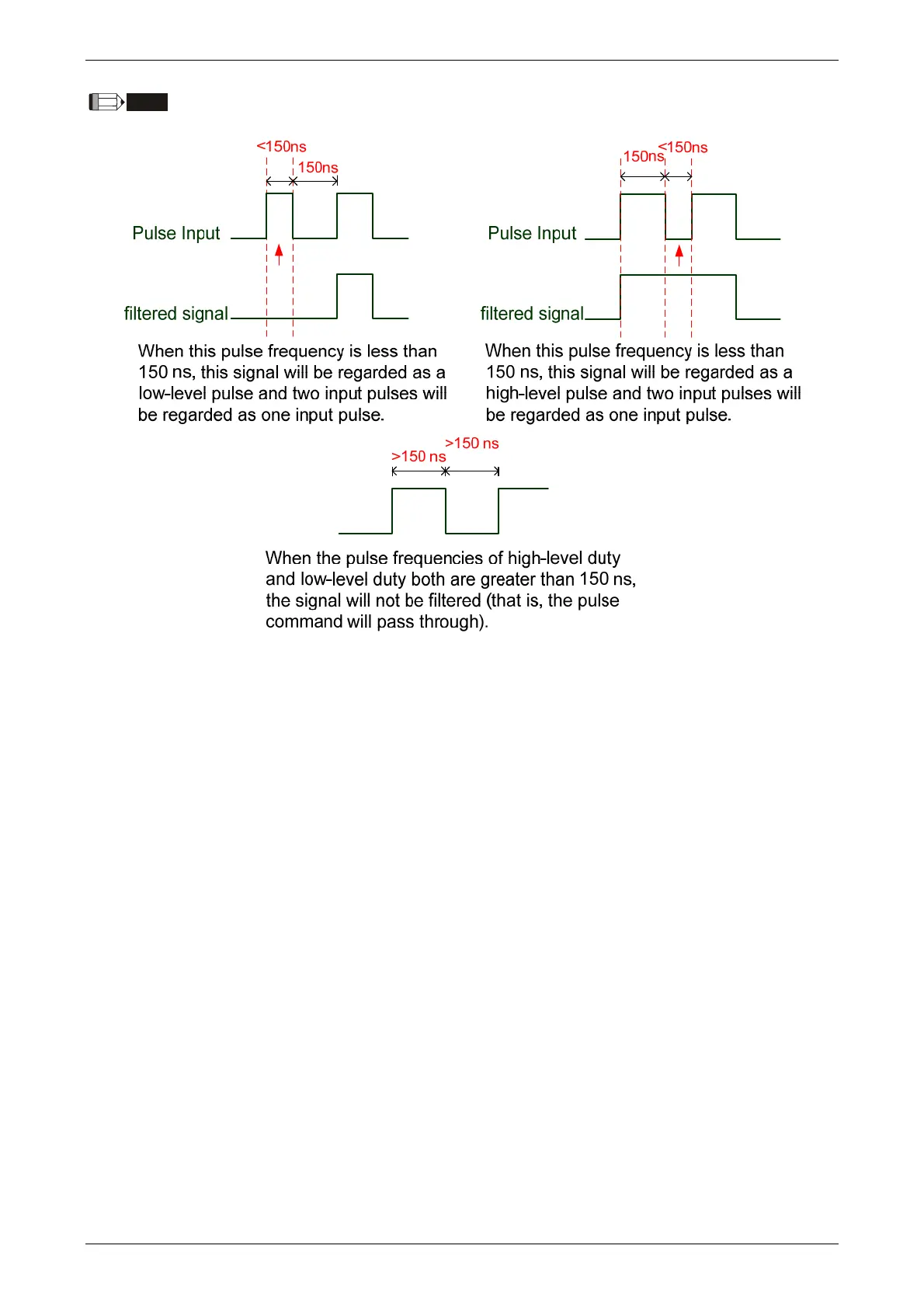

NOTE
If the user uses 2 ~ 4 MHz input pulse, it is suggested to set the filter value to 4. Please
note that the applicable version is: DSP version 1.005 sub10 and version above.
Note: When the signal is the high-speed pulse specification of 4 Mpps and the settings
value of the filter is 4, then pulse will not be filtered.

Delta ASDA-B2 Series Specifications

General

Control Mode	Position, Speed, Torque
Storage Temperature	-20°C to 65°C
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Output Power	0.1 kW to 3.0 kW
Communication Interface	RS-485, CANopen
Encoder Feedback	Incremental
Protection	Overvoltage, Overcurrent, Overload, Overheat
Operating Temperature	0°C to 55°C
Humidity	20% to 90% RH (non-condensing)
Vibration Resistance	5.9 m/s² (0.6G) at 10-55Hz
