ASDA-B2 Chapter 7 Parameters
Revision May, 2018 7-55

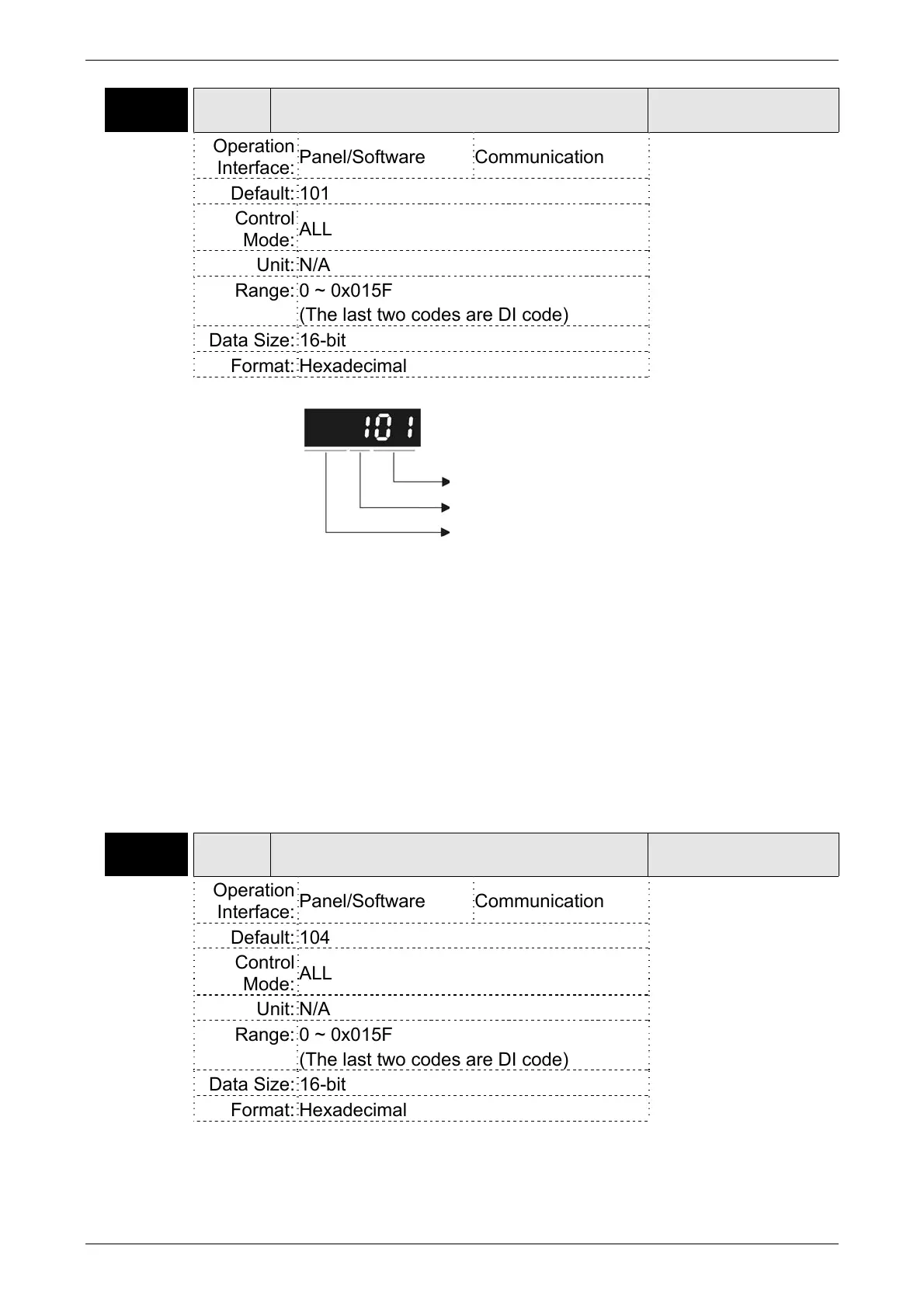

P2-10 DI1
DI1 Funcitonal Planning
Address: 0214H
0215H
Operation
Interface:
Panel/Software Communication
Related Section:
Table 7.1
Default: 101
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 0x015F
(The last two codes are DI code)
Data Size: 16-bit
Format: Hexadecimal
Settings:
Input funciton selection: Please refer to table 7.1
Input contact: a or b contact
0: Set the input contact as normally closed (b contact)
1: Set the input contact as normally opened (a contact)
(P2-10 ~ P2-17 and P2-36) The setting value of function
programmed
When parameters are modified, please re-start the servo drive
to ensure it can work normally.
Note: Parameter P3-06 is used to set how digital inputs (DI)
accepts commands, through external terminal or the
communication which determined by P4-07.
P2-11 DI2
DI2 Funcitonal Planning
Address: 0216H
0217H
Operation
Interface:
Panel/Software Communication
Related Section:
Table 7.1
Default: 104
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 0x015F
(The last two codes are DI code)
Data Size: 16-bit
Format: Hexadecimal
Settings: Please refer to the description of P2-10
Input function selection
Input contact
Not in use
