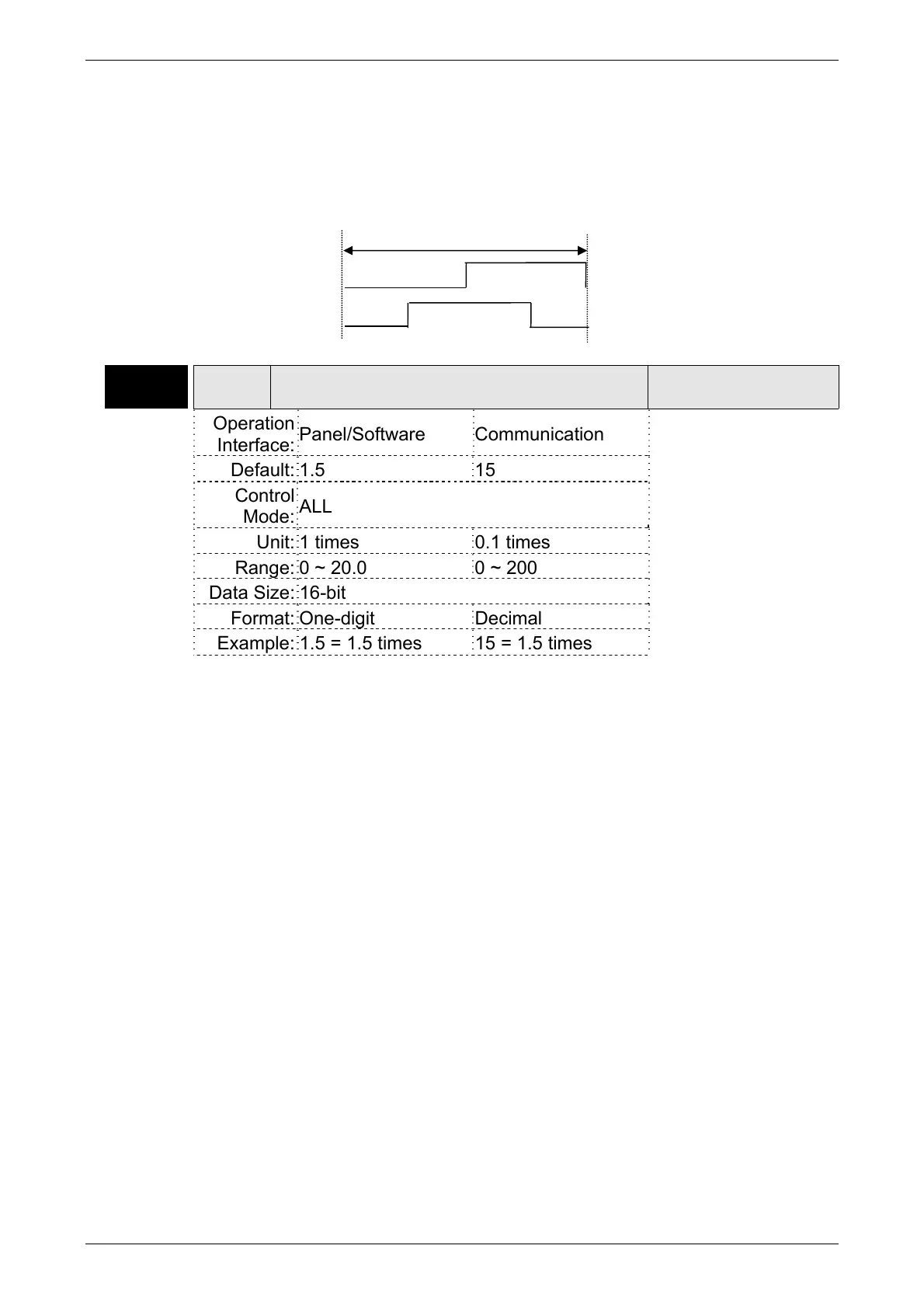

ASDA-B2 Chapter 7 Parameters
Revision May, 2018 7-79
1: 0x8000. The setting value of P1-46 is the pulse number of
quadrupler frequency per cycle.
If the pulse number that host controller needs to receive is 187
pulse per cycle, then set P1-46 to 187 pulse, the host controller
will receive 187 pulse per cycle.
P2-67
JSL Stable Inertia Estimating Time
Address: 0286H
0287H
Operation
Interface:
Panel/Software Communication
Related Section: N/A
Default: 1.5 15
Control
Mode:
ALL
Unit: 1 times 0.1 times
Range: 0 ~ 20.0 0 ~ 200
Data Size: 16-bit
Format: One-digit Decimal
Example: 1.5 = 1.5 times 15 = 1.5 times
Settings: In semi-auto mode, if the value of inertia estimation is smaller
than P2-67 and the status remains for a while, the system will
regard the inertia estimation as completed.
Para. setting: P1-46=4,P2-66=0x8000
OB
OA
Motor runs a cycle
