ASDA-B2 Chapter 7 Parameters
Revision May, 2018 7-83

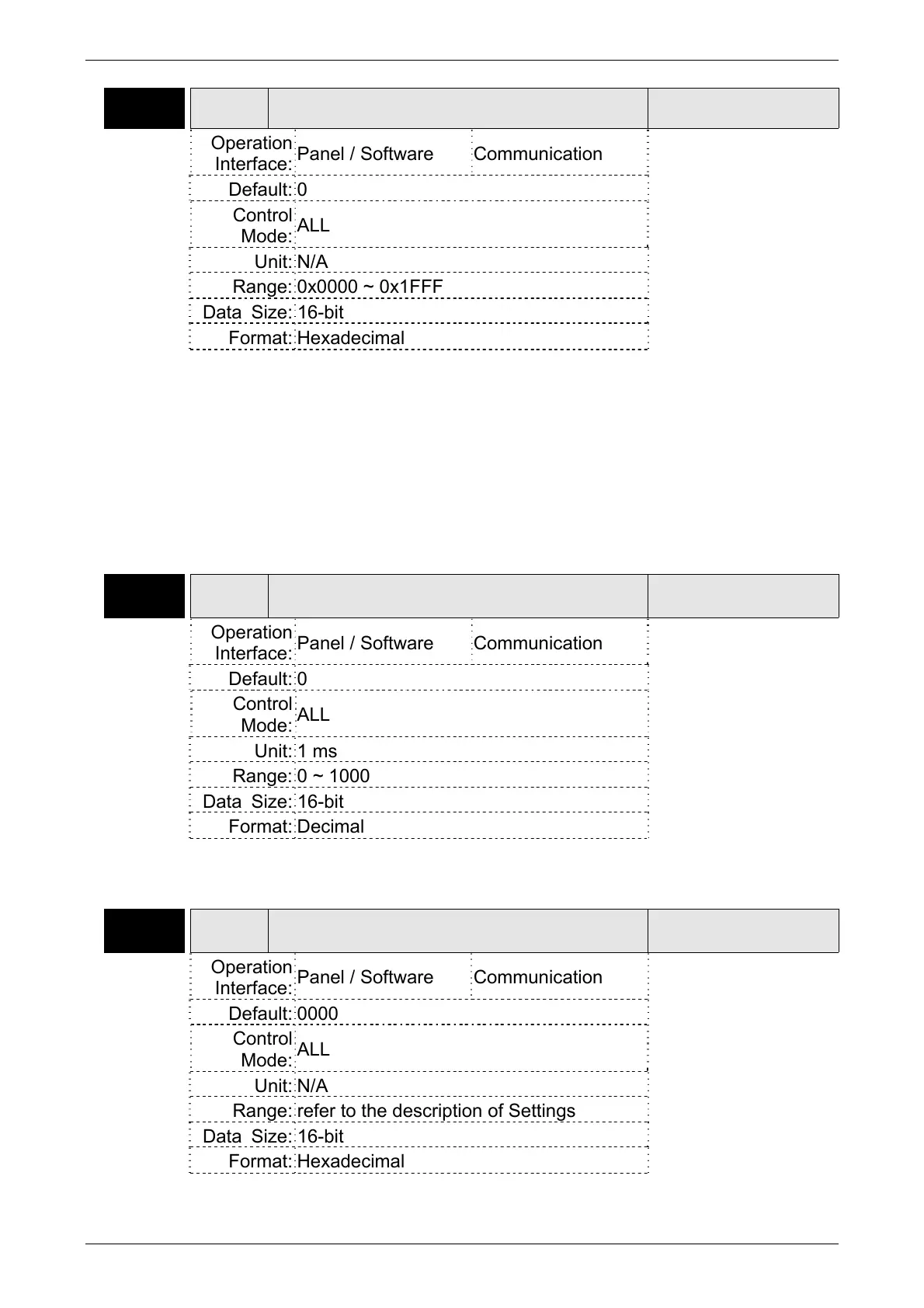

P3-06■
SDI Control Switch of Digital Input (DI)
Address: 030CH
030DH
Operation
Interface:
Panel / Software Communication
Related Section:
8.2
Default: 0
Control
Mode:
ALL
Unit: N/A
Range: 0x0000 ~ 0x1FFF
Data Size: 16-bit
Format: Hexadecimal
Settings: The source of DI controls the switch.
Each bit of this parameter decides one input source of DI signal:
Bit0 ~ Bit8 correspond to DI1 ~ DI9.
The setting of bit is as the followings:
0: The input status is controlled by the external hardware.
1: The input status is controlled by P4-07.
For the functional planning of digital input, please refer to:
DI1 ~ DI9: P2-10 ~ P2-17 and P2-36
P3-07
CDT Communication Response Delay Time
Address: 030EH
030FH
Operation
Interface:
Panel / Software Communication
Related Section:
8.2
Default: 0
Control
Mode:
ALL
Unit: 1 ms
Range: 0 ~ 1000
Data Size: 16-bit
Format: Decimal
Settings: Delay the time of communication response from servo drive to
controller
P3-08■
MNS Monitor Mode
Address: 0310H
0311H
Operation
Interface:
Panel / Software Communication
Related Section:
8.2
Default: 0000
Control
Mode:
ALL
Unit: N/A
Range: refer to the description of Settings
Data Size: 16-bit
Format: Hexadecimal
