ASDA-B2 Chapter 7 Parameters
Revision May, 2018 7-89
The value of writing P4-07 is 0x0011, which means software SDI1
and SDI5 is ON.
Please refer to P2-10 ~ P2-17 and P2-36 for the function program
of digital input pin DI (DI1 ~ DI9).

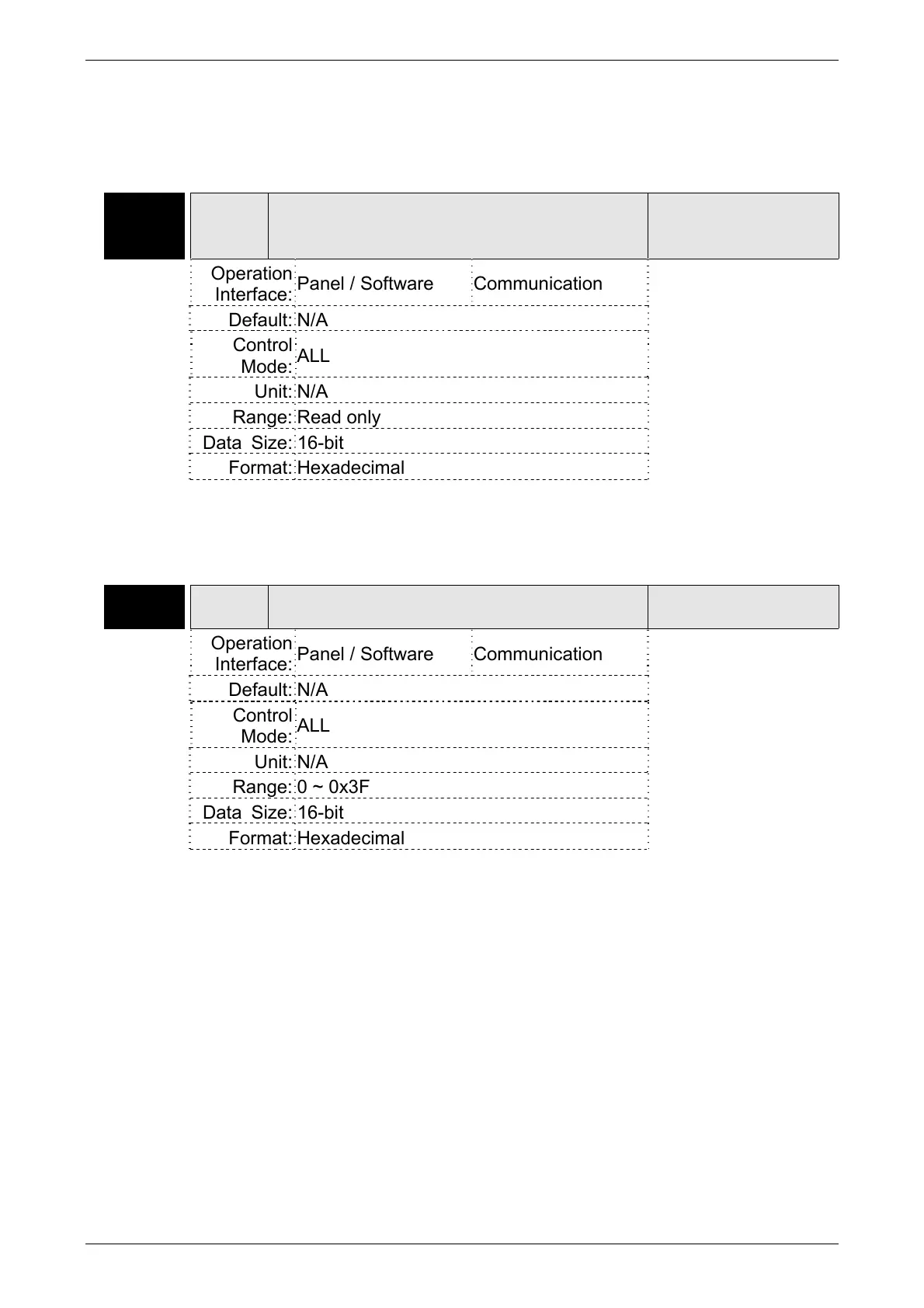

P4-08★
PKEY
Input Status of the Drive Keypad
(Read-only)
Address: 0410H
0411H
Operation
Interface:
Panel / Software Communication
Related Section: N/A
Default: N/A
Control
Mode:
ALL
Unit: N/A
Range: Read only
Data Size: 16-bit
Format: Hexadecimal
Settings: The aim is to check if the five Keys, MODE, UP, DOWN, SHIFT,
and SET can work normally. This parameter is also used to check
if the Keys are all functional when producing servo drives.
P4-09★
MOT Output Status (Read-only)
Address: 0412H
0413H
Operation
Interface:
Panel / Software Communication
Related Section:
4.4.5
Default: N/A
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 0x3F
Data Size: 16-bit
Format: Hexadecimal
Settings: There is no difference when reading DO output signal via panel or
the communication.
