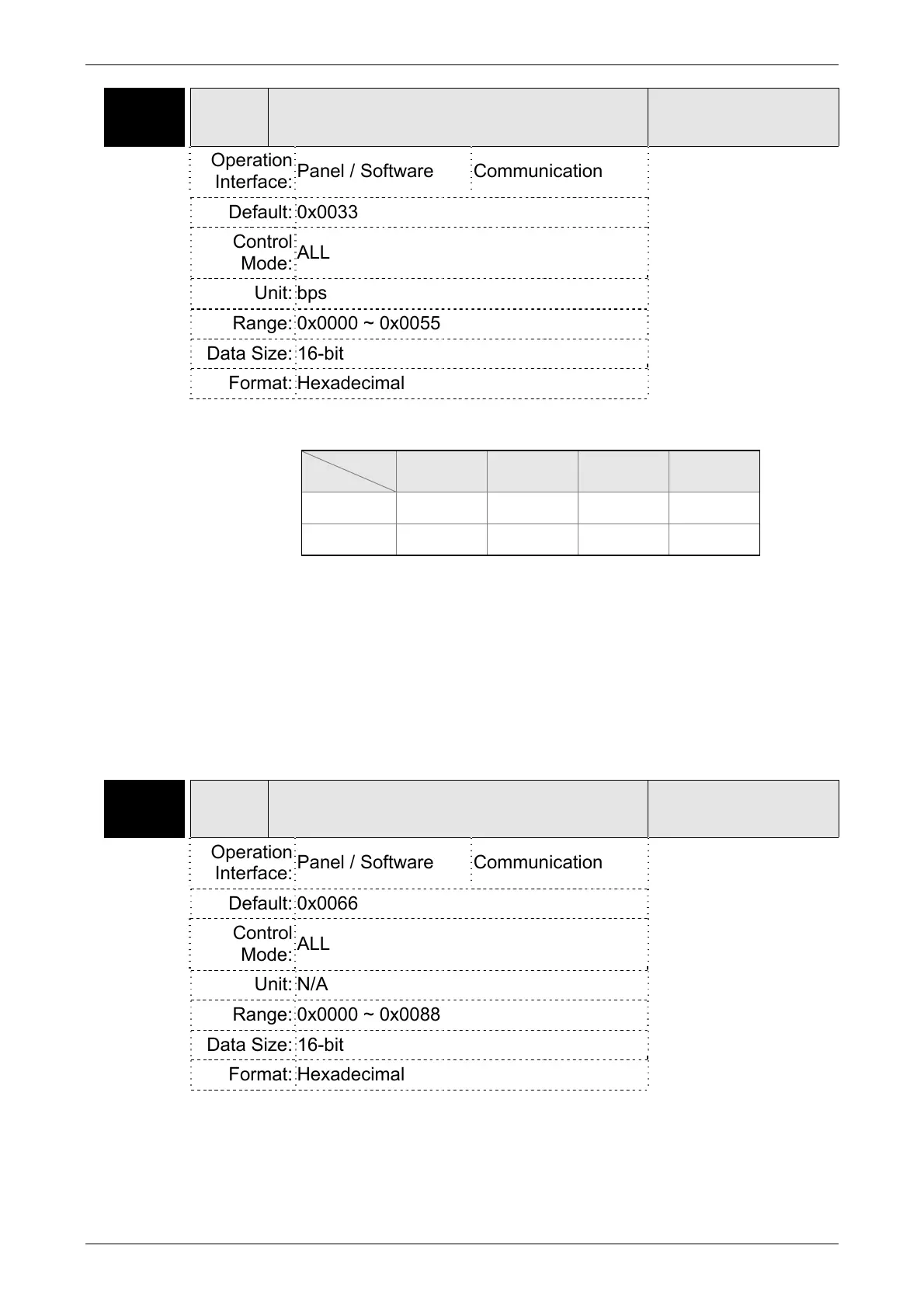

P3-01 BRT Transmission Speed
Address: 0302H
0303H
Operation
Interface:
Panel / Software Communication
Related Section:
Section 8.2
Default: 0x0033
Control
Mode:
ALL
Unit: bps
Range: 0x0000 ~ 0x0055
Data Size: 16-bit
Format: Hexadecimal
Settings: The setting of transmission speed is divided into Z, Y, X
(hexadecimal):
0 Z Y X
COM Port - - RS-485 RS-232
Range 0 0 0 ~ 5 0 ~ 5
Settings:
0: 4800
1: 9600
2: 19200
3: 38400
4: 57600
5: 115200
P3-02 PTL Communication Protocol
Address: 0304H
0305H
Operation
Interface:
Panel / Software Communication
Related Section:
Section 8.2
Default: 0x0066
Control
Mode:
ALL
Unit: N/A
Range: 0x0000 ~ 0x0088
Data Size: 16-bit
Format: Hexadecimal
