ASDA-B2 Chapter 8 Communications
Revision May, 2018 8-5
Settings: The setting of transmission speed is divided into Z, Y, X
(hexadecimal):
0 Z Y X
COM Port - - RS-485 RS-232
Range 0 0 0 ~ 8 0 ~ 8
The settings are defined as follows:
0: 7, N, 2 (MODBUS, ASCII)
1: 7, E, 1 (MODBUS, ASCII)
2: 7, O,1 (MODBUS, ASCII)
3: 8, N, 2 (MODBUS, ASCII)
4: 8, E, 1 (MODBUS, ASCII)
5: 8, O, 1 (MODBUS, ASCII)
6: 8, N, 2 (MODBUS, RTU)
7: 8, E, 1 (MODBUS, RTU)
8: 8, O, 1 (MODBUS, RTU)

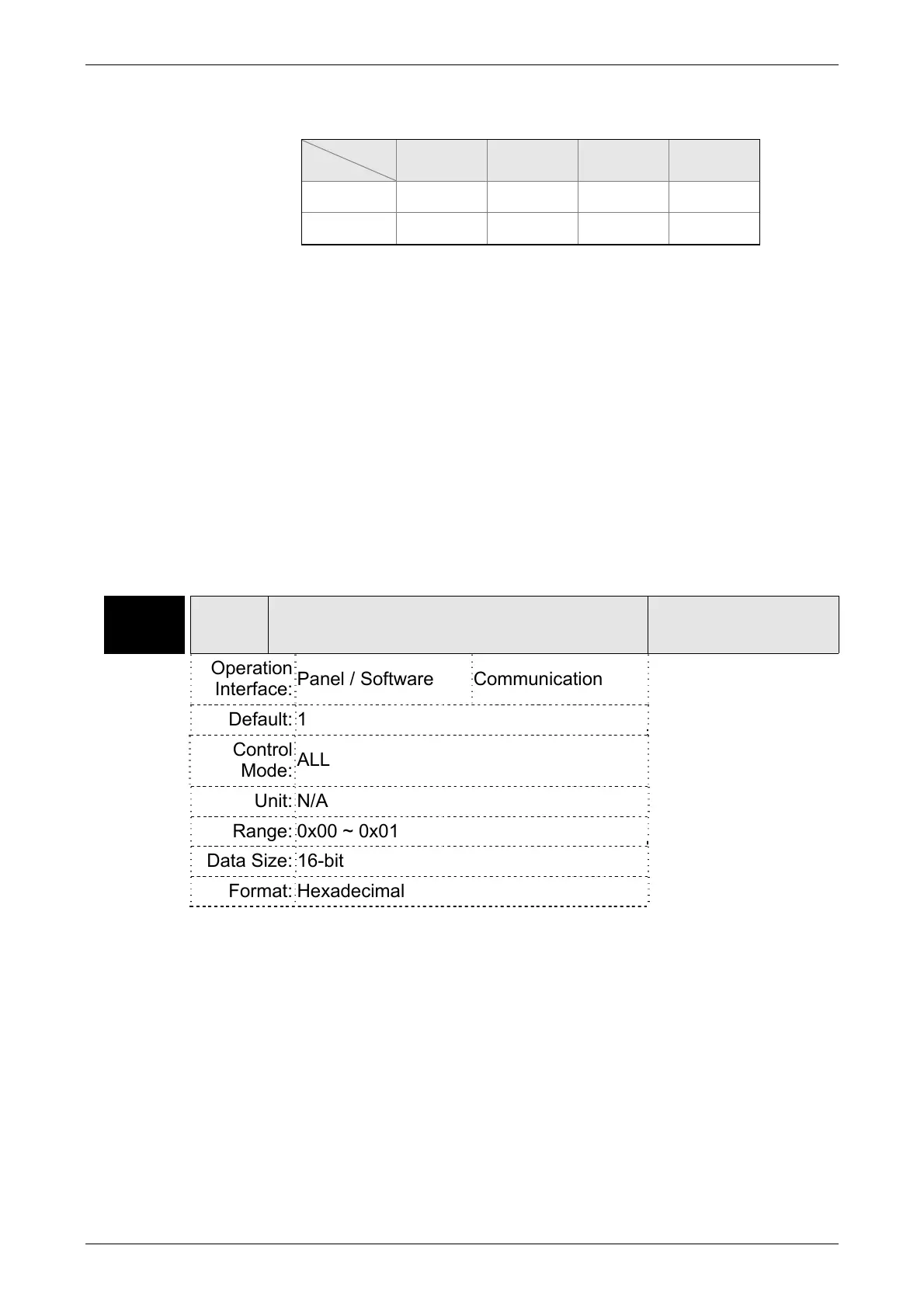

P3-05 CMM Communication Mechanism
Address: 030AH
030BH
Operation
Interface:
Panel / Software Communication
Related Section:
Section 8.2
Default: 1
Control
Mode:
ALL
Unit: N/A
Range: 0x00 ~ 0x01
Data Size: 16-bit
Format: Hexadecimal
Settings: RS-232 Communication interface selection
0: RS-232 via Modbus communication
1: RS-232 upon ASDA-Soft software
