3.5.1 Option Card Mounting Position 1
Installation method: Back-mount the option card
1. Turn off the power of the motor drive, and then remove the front cover, as shown in Figure 3-3.
2. Assemble the connection cable: Connect the connector at one end of the connection cable to the
control board connector. See Section 3.6.1 <Connection Cable of Option Cards> for details.
3. Assemble the supported frame of the option card: Aim the two clips at the two slots on the motor
drive, and then press downward to have the two clips engage the slots, as shown in Figure 3-4.
4. Assemble the connection cable: Connect the connector at the other end of the connection cable
to the connector of the option card.
5. Assemble the option card: Have the terminal block and connector of the option card face
downward, aim the two holes of the option card to the positioning pin and press downward so that
the three clips engage the option card, as shown in Figure 3-5.
6. Make sure that three clips properly engage the option card and then tighten the screws
(suggested torque value: 4–6 kg-cm (3.5–5.2 lb-in.) (0.39–0.59 Nm)), as shown in Figure 3-6.
7. Assembly is completed, as shown in Figure 3-7.

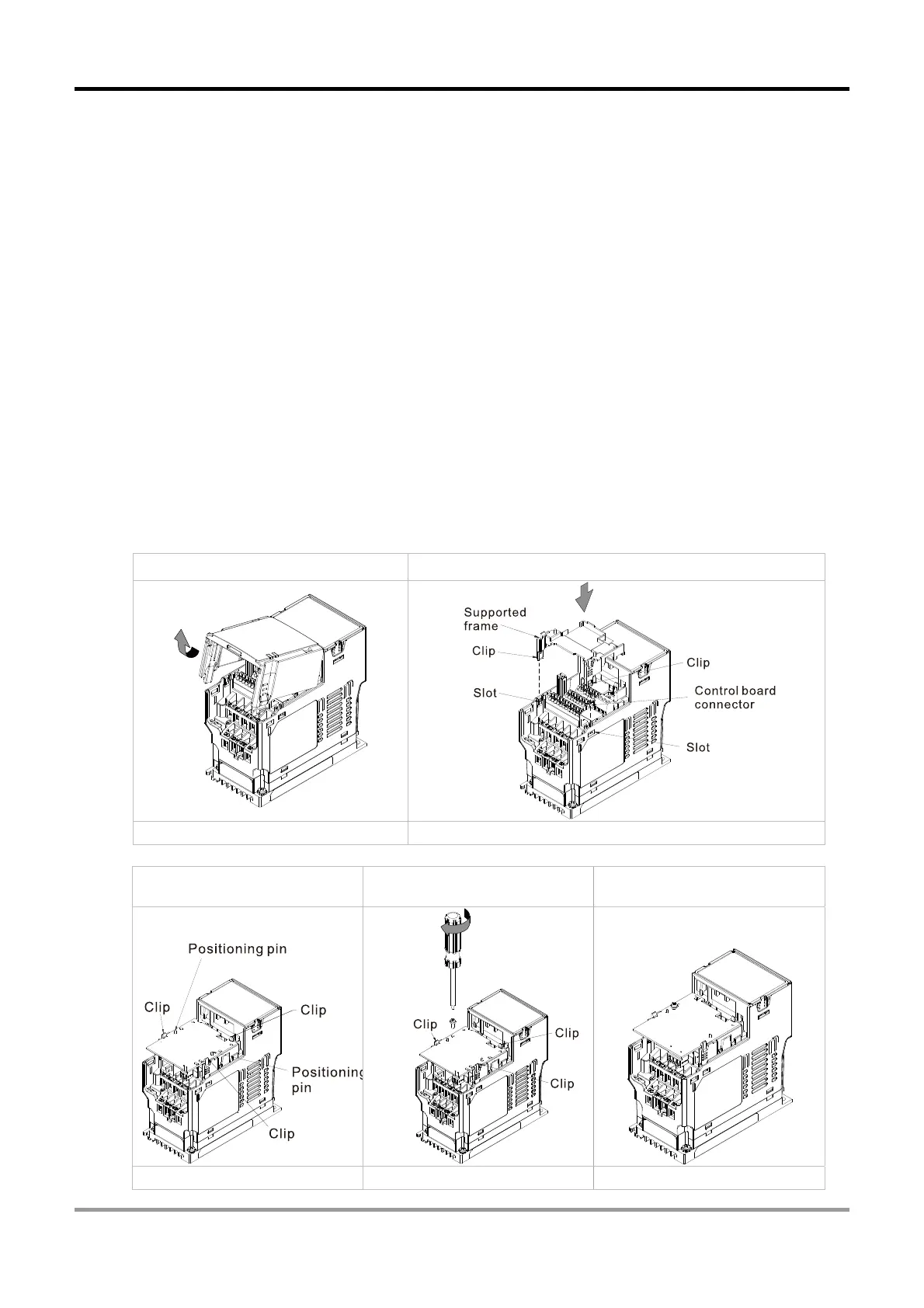

Step1: Remove the front cover
Step 2: Assemble the supported frame
Figure 3-3
Figure 3-4
Step 3: Assemble the
option card
Step 4: Tighten the
screws
Step 5: Assembly
completed
Figure 3-5
Figure 3-6 Figure 3-7
