VFD EtherNet/IP Option Card
Option Card Application Manual
29
4.2.2 Using Delta-defined New Standard (60xx)
Set the drive according to the steps mentioned in Section 4.1 <Drive Setting>, and then set the
drive to delta-defined new control method by setting Pr.09-30 = 1. The new control method
supports all control modes of the drive.

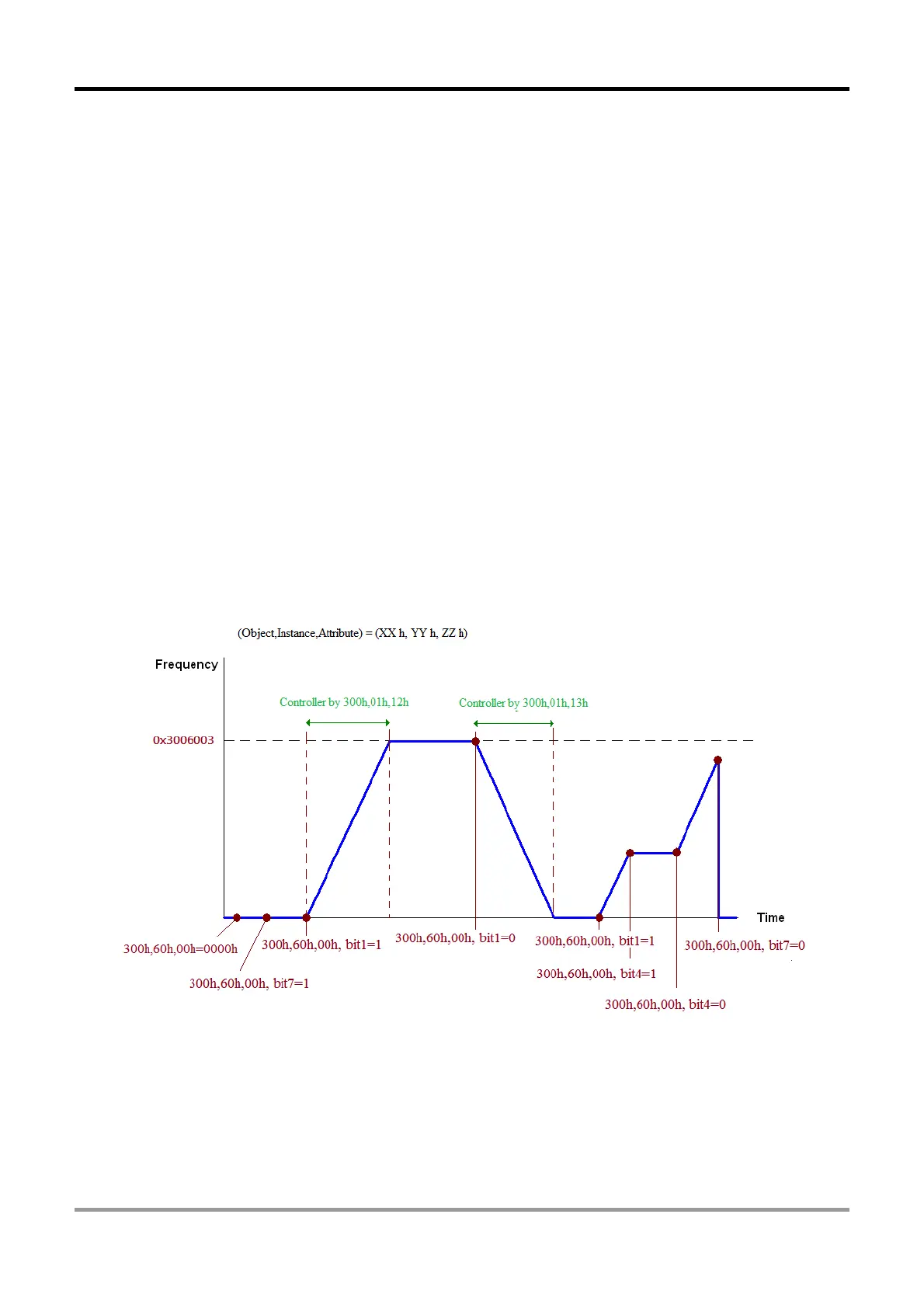

Speed Mode Control
1. Control in speed mode: Set (Object, Instance, Attribute) = (300h, 60h, 01h) to 0.
2. Set the target frequency: Set (Object, Instance, Attribute) = (300h, 60h, 02h). The unit is Hz,
and the value is in two decimal places. For example, 1000 stands for 10.00 Hz.
3. RUN operation: Setting (Object, Instance, Attribute) = (300h, 60h, 00h) = 0080H stands for
excitation. Setting (Object, Instance, Attribute) = (300h, 60h, 00h) = 0081H stands for
running.
4. Acceleration and deceleration time operation: Based on the first-step
acceleration/deceleration time, set acceleration time setting (Object, Instance, Attribute) =
(300h, 01h, 12h), and set the deceleration time setting (Object, Instance, Attribute) = (300h,
01h, 13h). The unit is second, and the value is in one decimal place. For example, 100
stands for 10.0 seconds.
