3.6.1 Connection Cable of Option Cards
You must buy connection cables along with the option card, or you will not be able to use the option
card. Ensure your option card model and mounting position before purchasing connection cables.
Two different lengths of connection cables are available for your choice. See the table below.
Option Card
CMM-EIP02
CMM-EIP03
Frame
Mounting Position 1 Mounting Position 2
Model of
Connection Cable
Model of
Connection Cable
A
CBM-CL01A
CBM-CC01A
B
CBM-CC02A
C
CBM-CL02A
D
E
N/A
F

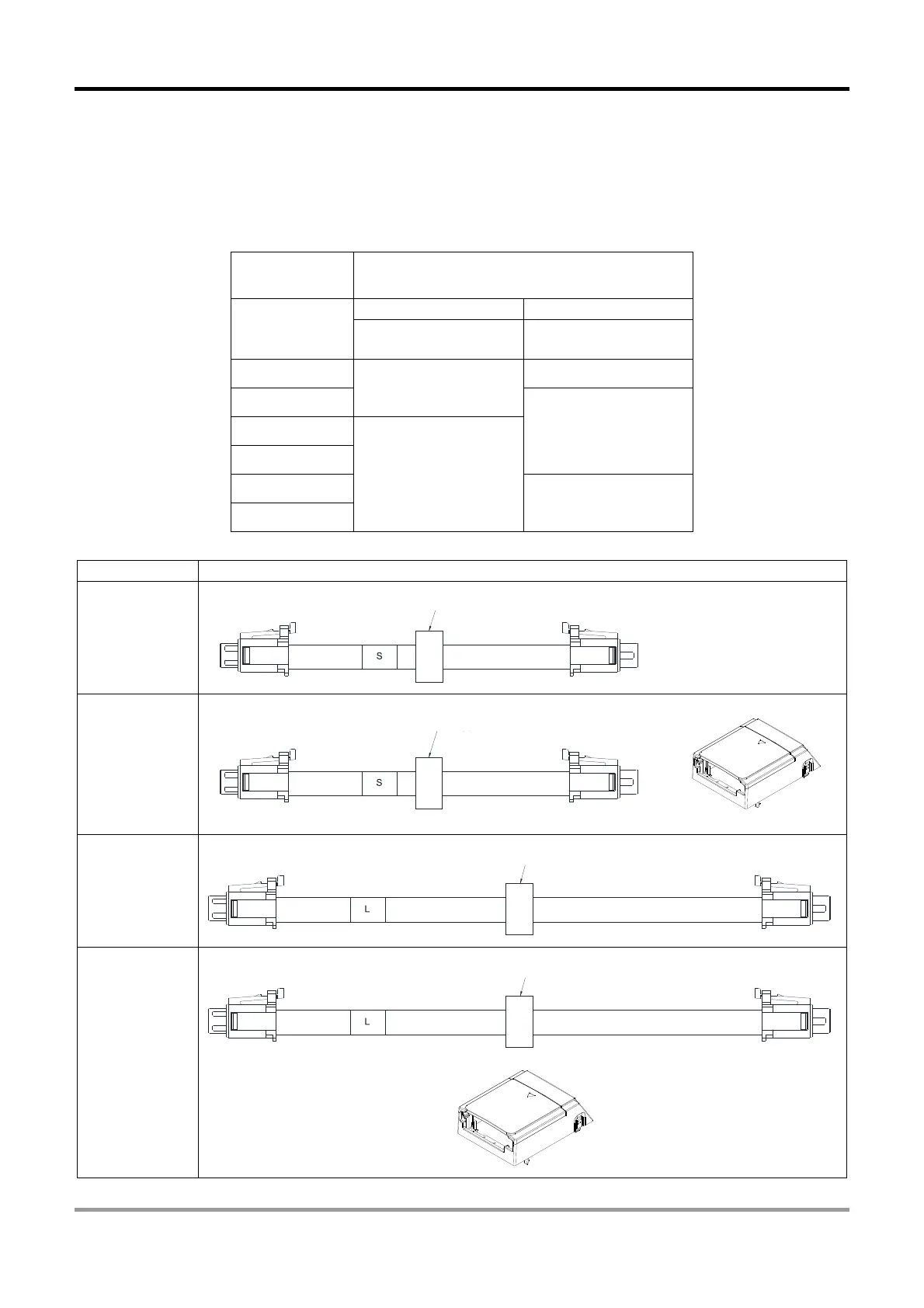

Model Figures
CBM-CL01A
CBM-CC01A
(mounting
box included)
CBM-CL02A
CBM-CC02A
(mounting
box included)
Ferrite
Ferrite
Ferrite
Ferrite
