5.1.1 Delta’s PLC – A Demonstration of AS300
Device
AS332P-A 192.168.1.5
MS300
CMM-EIP02
192.168.1.105
Software
COMMGR Above V1.11
DCISoft Above V1.23
ISPSoft Above V3.10
EIP Builder Above V1.07
1. Connect your computer, AS332P-A and option card CMM-EIP03 using Ethernet. Then, build
up either a star typology or linear typology. For how to create a typology, see Section 3.9.1
<Single-port Communication Device>. If the option card is single port, build up a star
typology.
2. Set the IP address of option card and drive parameters according to the instructions in
Chapter 4. Then, use DCISoft software to change the IP address of CMM-EIP02 to
192.168.1.105.

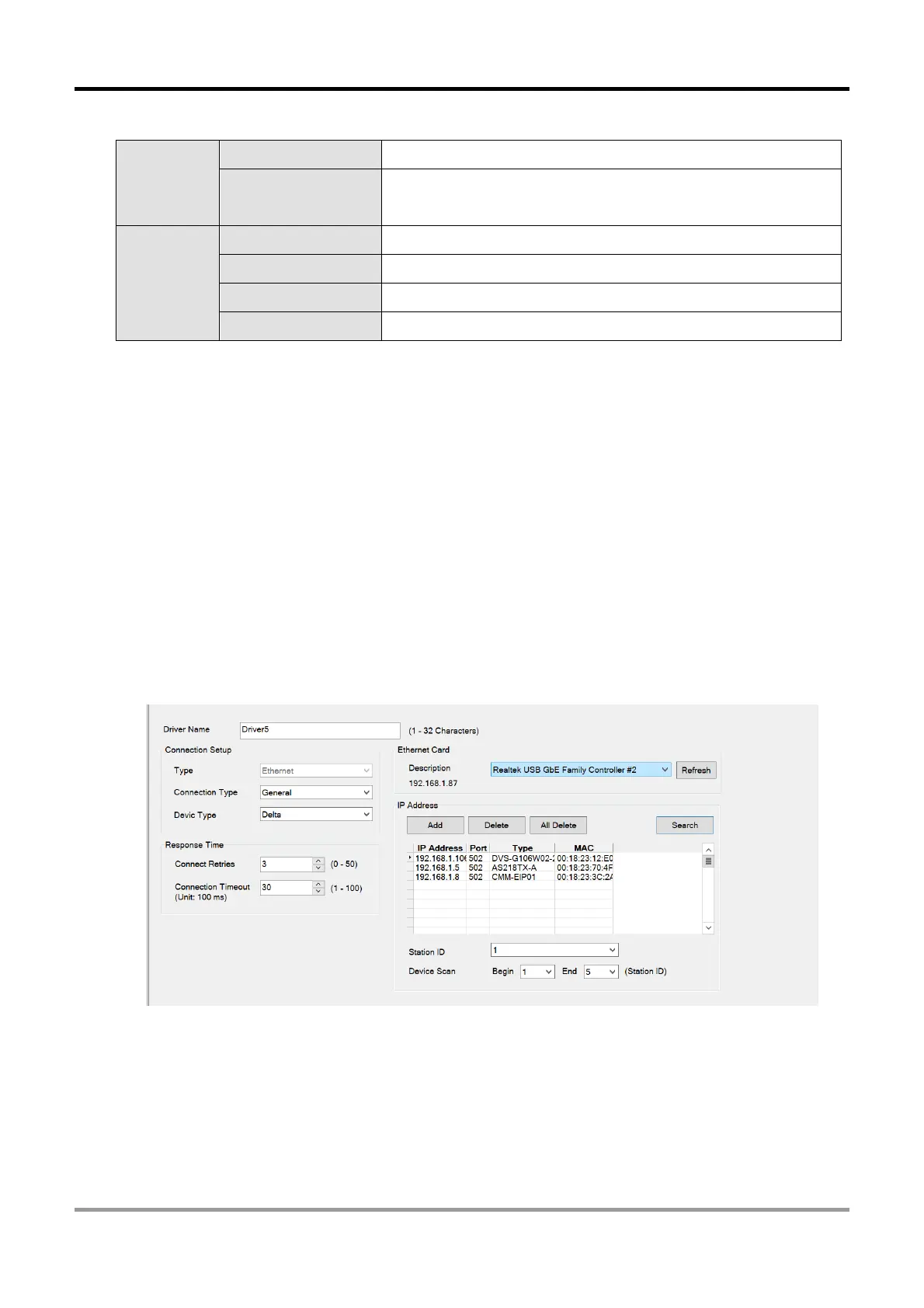

3. Open COMMGR software, and click Add to select Ethernet as communication type. Select
the correct Ethernet card, and then click Search to scan all devices. Make sure that AS332P
and CMM-EIP02 are listed in the scanned results. Then, press OK button to successfully add
device channel into COMMGR for ISPSoft connection.
