VFD EtherNet/IP Option Card
Option Card Application Manual
9
3.3 CMC-EIP01

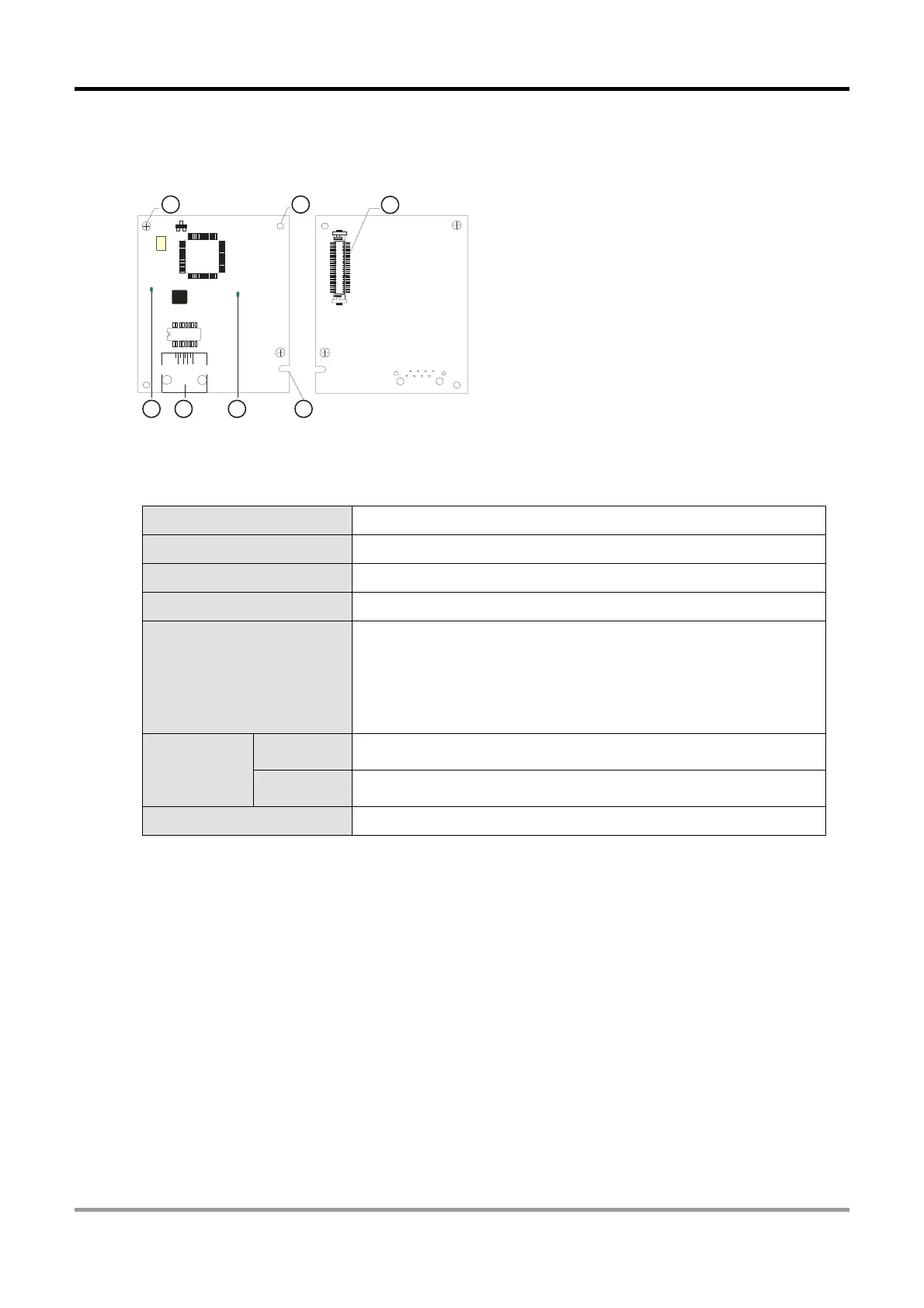

3.3.1 Product Profile
5
2 31
4
7
6
Screw torque: 6–8 kg-cm / (5.21–6.94 Ib-in.) / (0.2 Nm)
1. Screw fixing hole
2. Option card positioning hole
3. Drive connection port
4. LINK indicator
5. Ethernet communication port (RJ45)
6. POWER indicator
7. Fool-proof groove on option card
3.3.2 Electrical Specifications and Environment
Power Supply Voltage 5 V
DC
Insulation Voltage 500 V
AC
Power Consumption 0.8 W
Weight 25 g
Noise Immunity
ESD (IEC 61800-5-1, IEC 6100-4-2)
EFT (IEC 61800-5-1, IEC 6100-4-4)
Surge Test (IEC 61800-5-1, IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 6100-4-6)
Operation
and
Storage
Operation
-10–50°C (Temperature)
90% (Humidity)
Storage
-25–70°C (Temperature)
95% (Humidity)
Vibration/Shock Resistance IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1, IEC 60068-2-27
