3.5.2 Option Card Mounting Position 2 (Frame A–D)
Installation method: Front-mount the option card
1. Turn off the power of the motor drive, and then remove the front cover, as shown in Figure 3-8.
2. Assemble the option card: Detach the upper cover of the mounting box for the option card by
slipping and make the terminal block and connector of the option card face upward. Fix the front
end of the option card to the slots, and then rotate it, as shown in the Figure 3-9.
3. Make sure that two clips properly engage the option card on the backside, and then tighten the
screws (suggested torque value: 4–6 kg-cm (3.5–5.2 lb-in.) (0.39–0.59 Nm)), as shown in Figure
3-10.
4. Assemble the connection cable: Connect the connector at one end of the connection cable to the
control board connector. See Section 3.6.1 <Connection Cable of Option Cards> for details.
5. Attach the front cover of the drive.
6. Assemble the connection cable: Connect the connector at the other end of the connection cable
to the connector of the option card.
7. Attach the upper cover to the mounting box for the option card, as shown in Figure 3-11.
8. Assemble the mounting box for the option card: Aim the four clips of the mounting box for the
option card at the slots on the upper cover of the motor drive, and then press downward to have
the four clips engage the slots, as shown in the Figure 3-12.
9. Assembly is completed, as shown in Figure 3-13.

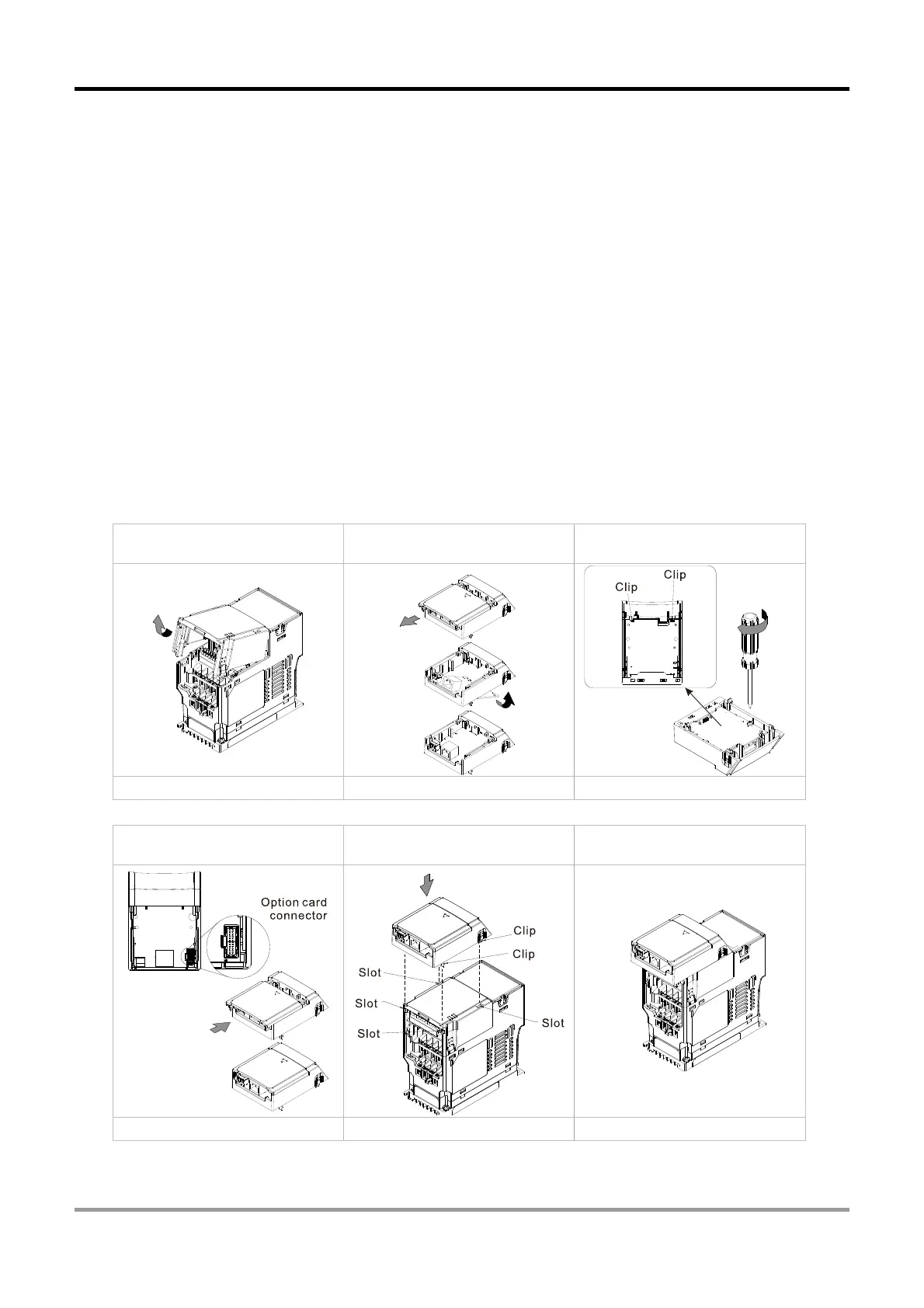

Step1: Remove the
front cover
Step 2: Assemble the
option card
Step 3: Tighten the
screws
Figure 3-8
Figure 3-9 Figure 3-10
Step 4: Attach the upper
cover to the mounting box
Step 5: Assemble the
mounting box for option card
Step 5: Assembly
completed
Figure 3-11
Figure 3-12 Figure 3-13
