Delta CMM-EIP02 User Manual

VFD EtherNet/IP Option Card
Option Card Application Manual
8

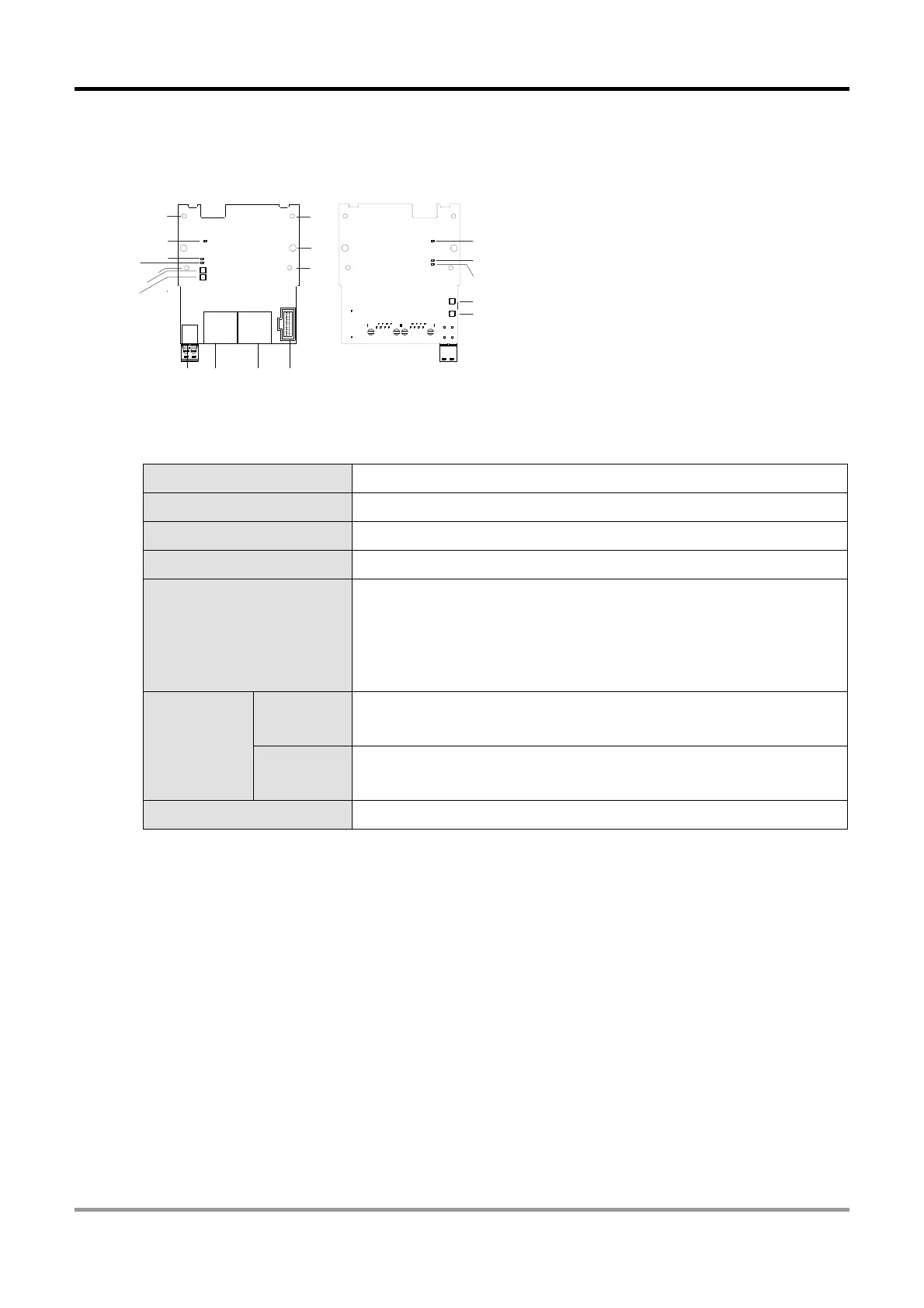

3.2 CMM-EIP03
3.2.1 Product Profile
Screw torque: 6–8 kg-cm / (5.21–6.94 Ib-in.) / (0.2 Nm)
1. Screw fixing hole
2. Option card positioning hole
3. Drive connection port
4. Communication connection port
P1 (PORT 1), P2 (PORT 2)
5. Indicator NET1 (NS), NET2 (MS)
6. POWER indicator
7. LINK indicator P1 (PORT 1), P2 (PORT 2)
8. Ground terminal block
3.2.2 Electrical Specifications and Environment
Power Supply Voltage 15 V
DC
Insulation Voltage 500 V
AC
Power Consumption 1.3 W
Weight 30 g
Noise Immunity
ESD (IEC 61800-5-1, IEC 6100-4-2)
EFT (IEC 61800-5-1, IEC 6100-4-4)
Surge Test (IEC 61800-5-1, IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 6100-4-6)
Operation
and
Storage
Operation
-10–50°C(Temperature)
90% (Humidity)
Storage
-25–70°C (Temperature)
95% (Humidity)
Vibration/Shock Resistance IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1, IEC 60068-2-27
2
2
6
7(P1)
7(P2)
5(NET1)
5(NET2)
2
1
2
8
4(P1) 4(P2)
3
6
7(P1)
7(P2)
5(NET1
)
5(NET2)
