VFD EtherNet/IP Option Card
Option Card Application Manual
31
4.3 DCISoft Software Setting
You can use Delta's software DCISoft to quickly finish the settings of network parameter for the option
card. Download the latest DCISoft at Delta's website. Before connecting to the computer, make sure
that you have correctly mounted the option card and used the correct typology for network
connections according to instructions mentioned in Chapter 3 <Hardware and Installation>.
Before opening DCISoft, make sure that your computer’s IP address configuration is in the same
subnetwork as the option card. Consult a network administrator before setting the IP address. If you
are not sure the IP address, set 192.168.1.x (x=1–254) as IP address. For example, if the IP address
of the option card is 192.168.1.5, the computer’s IP address must be set to 192.168.1.x (x=1–254, x ≠

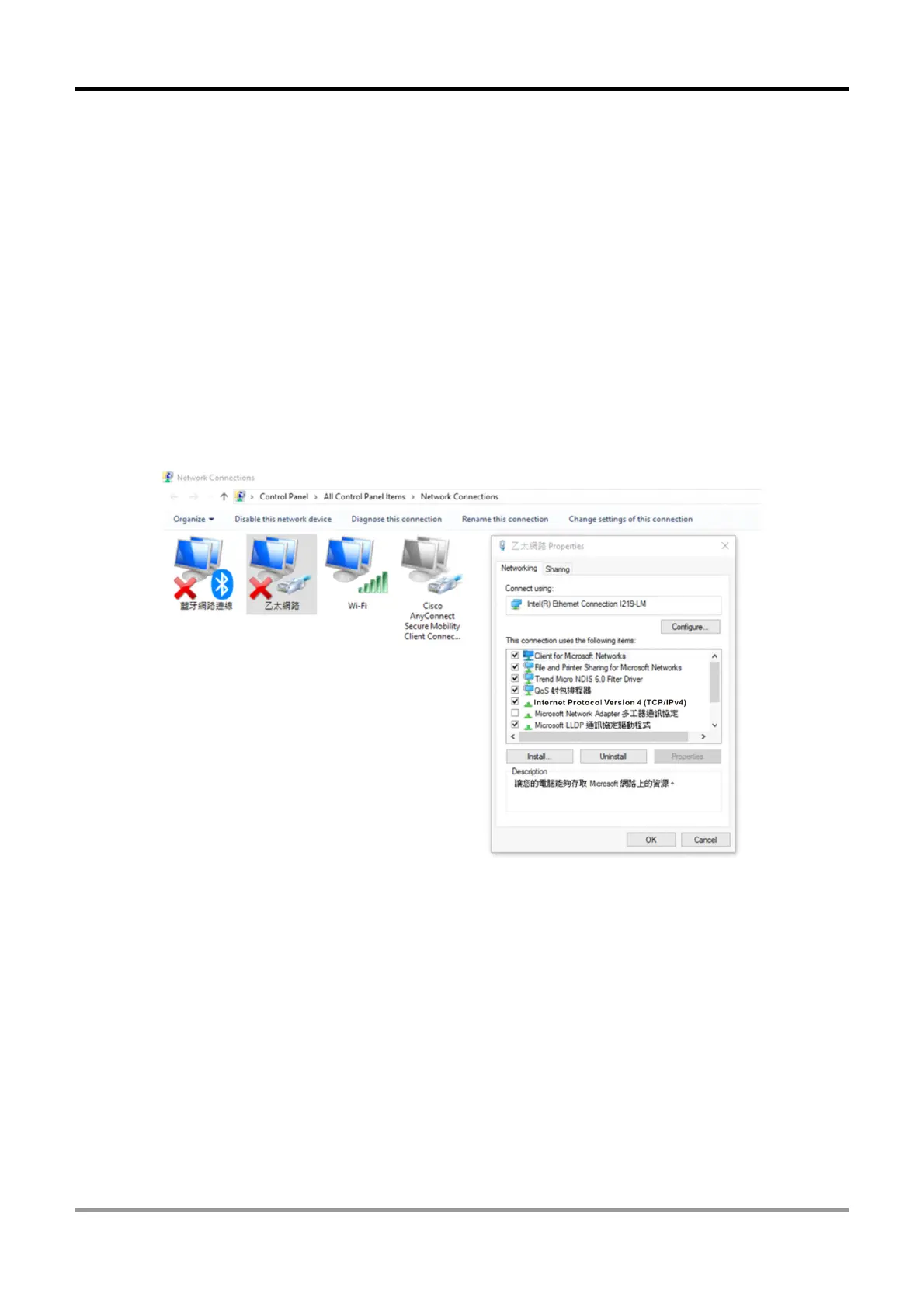

5). Follow the steps to set: Control Panel → Network and Internet → Network Connections →
Ethernet Properties → select and double-click Internet Protocol Version 4 (TCP/IPv4).
After opening DCISoft, set Ethernet as communication. Then, you can search by broadcast or specify
an IP address to locate and open CMM-EIP02 setting page. As CMM-EIP02 uses UDP port: 20006,
pay attention to the firewall settings. The following sections describe how to open setting pages and
introduces functions for each column.
